Phase Control Thyristor 80A to 330A

Home Products Stud Semiconductor DeviceStud ThyristorPhase Control Thyristor 80A to 330A

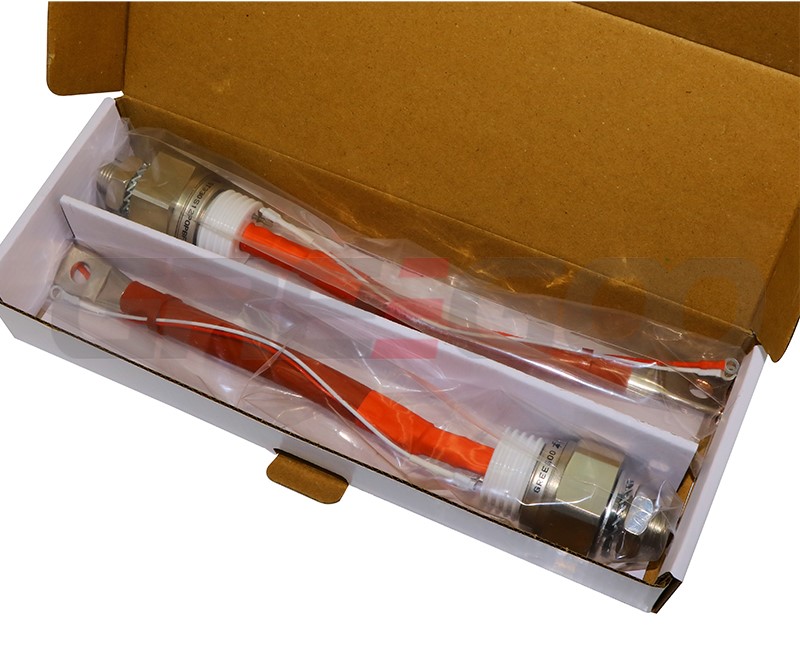

ST223S04PFNI-Phase Control Thyristor
ST223S04PFNI-Phase Control Thyristor

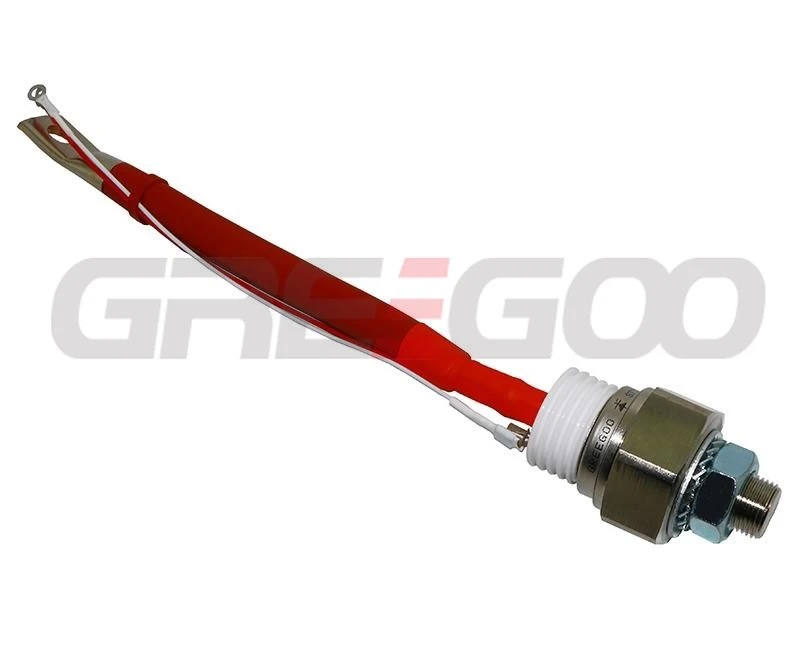

ST330S16P0PBF-Phase Control Thyristor

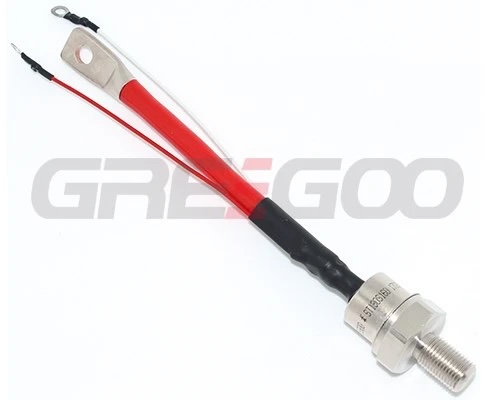

Phase-Control-Thyristors-ST130S160

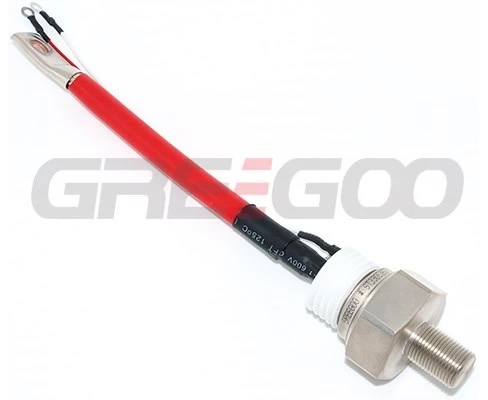

Phase-Control-Thyristors-ST330S160

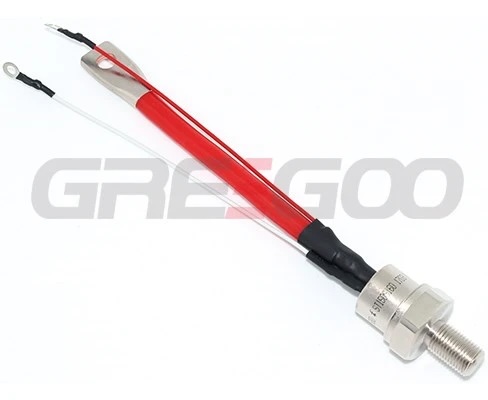

Phase-Control-Thyristors-ST150S160
Part numbers list

Phase Control Thyristor 80A to 330A

Type ITAVIFAV (TC) VRRMVDRM ITSMIFSM  I²t  VT(TO) rT Tᵥⱼ max  Rₜₕ(j-c)  W  Package
A (ºC) V A kA²·s V mΩ °C °C/W g type
80RIA
80RIA40 80 (85) 400 1900 18 1.13 1.84 125 0.030  130 TO-94 (TO-209AC)
80RIA40MPBF 80 (85) 400 1900 18 1.13 1.84 125 0.030  130 TO-94 (TO-209AC)
80RIA40PBF 80 (85) 400 1900 18 1.13 1.84 125 0.030  130 TO-94 (TO-209AC)
80RIA80 80 (85) 800 1900 18 1.13 1.84 125 0.030  130 TO-94 (TO-209AC)
80RIA80PBF 80 (85) 800 1900 18 1.13 1.84 125 0.030  130 TO-94 (TO-209AC)
80RIA120 80 (85) 1200 1900 18 1.13 1.84 125 0.030  130 TO-94 (TO-209AC)
80RIA120PBF 80 (85) 1200 1900 18 1.13 1.84 125 0.030  130 TO-94 (TO-209AC)
81RIA
81RIA40 80 (85) 400 1900 18 1.13 1.84 125 0.03 130 TO-94 (TO-209AC)
81RIA40PBF 80 (85) 400 1900 18 1.13 1.84 125 0.03 130 TO-94 (TO-209AC)
81RIA80 80 (85) 800 1900 18 1.13 1.84 125 0.03 130 TO-94 (TO-209AC)
81RIA80M 80 (85) 800 1900 18 1.13 1.84 125 0.03 130 TO-94 (TO-209AC)
81RIA80PBF 80 (85) 800 1900 18 1.13 1.84 125 0.03 130 TO-94 (TO-209AC)
81RIA120 80 (85) 1200 1900 18 1.13 1.84 125 0.03 130 TO-94 (TO-209AC)
81RIA120PBF 80 (85) 1200 1900 18 1.13 1.84 125 0.03 130 TO-94 (TO-209AC)
82RIA
82RIA120 80 (85) 400 1900 18 1.13 1.84 125 0.03 130 TO-94 (TO-209AC)
ST110SPBF
ST110S04P0V 110 (90) 400 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S04P0VPBF 110 (90) 400 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S04P1V 110 (90) 400 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S04P1VPBF 110 (90) 400 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S04P2V 110 (90) 400 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S04P2VPBF 110 (90) 400 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S08P0V 110 (90) 800 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S08P0VPBF 110 (90) 800 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S08P1V 110 (90) 800 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S08P1VPBF 110 (90) 800 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)

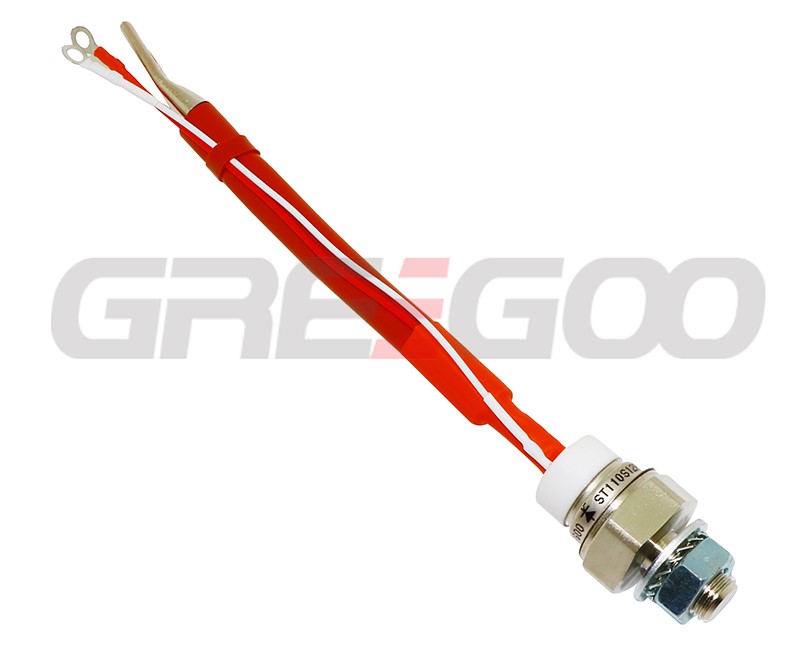

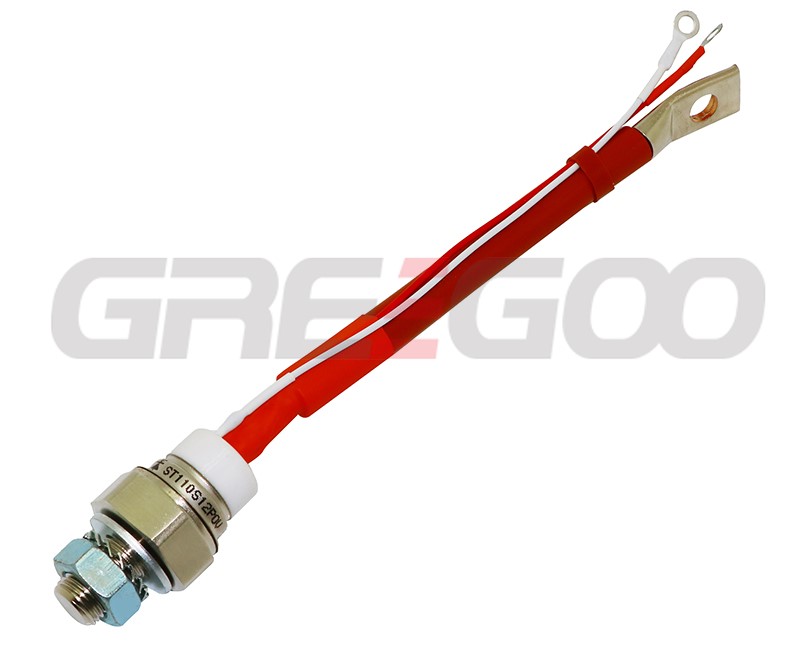

ST110S12P0V 110 (90) 1200 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S12P0VPBF 110 (90) 1200 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S12P1V 110 (90) 1200 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S12P1VPBF 110 (90) 1200 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S12P2VPBF 110 (90) 1200 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S14P0VPBF 110 (90) 1400 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S16M1VPBF 110 (90) 1600 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S16P0 110 (90) 1600 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S16P0VPBF 110 (90) 1600 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S16P1 110 (90) 1600 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S16P1VPBF 110 (90) 1600 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
ST110S16P2VPBF 110 (90) 1600 2700 36.4 0.92 1.81 125 0.025 130 TO-94 (TO-209AC)
110RKI
110RKI40 110 (90) 400 2080 21.7 1.02 1.7 125 0.031 130 TO-94 (TO-209AC)
110RKI40M 110 (90) 400 2080 21.7 1.02 1.7 125 0.031 130 TO-94 (TO-209AC)
110RKI40PBF 110 (90) 400 2080 21.7 1.02 1.7 125 0.031 130 TO-94 (TO-209AC)
110RKI80 110 (90) 800 2080 21.7 1.02 1.7 125 0.031 130 TO-94 (TO-209AC)
110RKI80PBF 110 (90) 800 2080 21.7 1.02 1.7 125 0.031 130 TO-94 (TO-209AC)
110RKI120 110 (90) 1200 2080 21.7 1.02 1.7 125 0.031 130 TO-94 (TO-209AC)
110RKI120M 110 (90) 1200 2080 21.7 1.02 1.7 125 0.031 130 TO-94 (TO-209AC)
110RKI120PBF 110 (90) 1200 2080 21.7 1.02 1.7 125 0.031 130 TO-94 (TO-209AC)
110RKI120MPBF 110 (90) 1200 2080 21.7 1.02 1.7 125 0.031 130 TO-94 (TO-209AC)
111RKI
111RKI80PBF 110 (90) 800 2080 21.7 1.02 1.7 125 0.031 130 TO-94 (TO-209AC)
111RKI120 110 (90) 1200 2080 21.7 1.02 1.7 125 0.031 130 TO-94 (TO-209AC)
111RKI120M 110 (90) 1200 2080 21.7 1.02 1.7 125 0.031 130 TO-94 (TO-209AC)
111RKI120PBF 110 (90) 1200 2080 21.7 1.02 1.7 125 0.031 130 TO-94 (TO-209AC)
111RKI120MPBF 110 (90) 1200 2080 21.7 1.02 1.7 125 0.031 130 TO-94 (TO-209AC)
180RKI
180RKI40 180 (80) 400 3800 72 0.89 0.81 125 0.032 280 TO-93 (TO-209AB)
180RKI40PBF 180 (80) 400 3800 72 0.89 0.81 125 0.032 280 TO-93 (TO-209AB)
180RKI80 180 (80) 800 3800 72 0.89 0.81 125 0.032 280 TO-93 (TO-209AB)
180RKI80PBF 180 (80) 800 3800 72 0.89 0.81 125 0.032 280 TO-93 (TO-209AB)
180RKI100 180 (80) 1000 3800 72 0.89 0.81 125 0.032 280 TO-93 (TO-209AB)
180RKI100PBF 180 (80) 1000 3800 72 0.89 0.81 125 0.032 280 TO-93 (TO-209AB)
181RKI
181RKI40 180 (80) 400 3800 72 0.89 0.81 125 0.032 280 TO-93 (TO-209AB)
181RKI40PBF 180 (80) 400 3800 72 0.89 0.81 125 0.032 280 TO-93 (TO-209AB)
181RKI80 180 (80) 800 3800 72 0.89 0.81 125 0.032 280 TO-93 (TO-209AB)
181RKI80PBF 180 (80) 800 3800 72 0.89 0.81 125 0.032 280 TO-93 (TO-209AB)
181RKI100 180 (80) 1000 3800 72 0.89 0.81 125 0.032 280 TO-93 (TO-209AB)
181RKI100PBF 180 (80) 1000 3800 72 0.89 0.81 125 0.032 280 TO-93 (TO-209AB)
ST180SPBF
ST180S16P0 200 (85) 1600 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S16P0PBF 200 (85) 1600 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S16M1PBF 200 (85) 1600 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S16P1 200 (85) 1600 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S16P1PBF 200 (85) 1600 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S20P0 200 (85) 2000 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S20P0PBF 200 (85) 2000 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S20P1 200 (85) 2000 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S20P1PBF 200 (85) 2000 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180SVPBF
ST180S04P0V 200 (85) 400 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S04P0VPBF 200 (85) 400 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S04P1V 200 (85) 400 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S04P1VPBF 200 (85) 400 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S06P1V 200 (85) 600 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S06P1VPBF 200 (85) 600 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S08P0V 200 (85) 800 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S08P0VPBF 200 (85) 800 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S08P1V 200 (85) 800 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S12P0V 200 (85) 1200 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S12P0VPBF 200 (85) 1200 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S12P1V 200 (85) 1200 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST180S12P1VPBF 200 (85) 1200 5000 125 1.14 1.14 125 0.012 280 TO-93 (TO-209AB)
ST230SPBF
ST230S14P0PBF 230 (85) 1400 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230S16M1PBF 230 (85) 1600 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230S16P0 230 (85) 1600 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230S16P0PBF 230 (85) 1600 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230S16P1 230 (85) 1600 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230S16P1PBF 230 (85) 1600 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230SVPBF
ST230S04M1VPBF 230 (85) 400 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230S04P0V 230 (85) 400 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230S04P0VPBF 230 (85) 400 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230S04P1V 230 (85) 400 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230S04P1VPBF 230 (85) 400 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230S08P0V 230 (85) 800 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230S08P0VPBF 230 (85) 800 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230S08P1V 230 (85) 800 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230S08P1VPBF 230 (85) 800 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230S12M0VPBF 230 (85) 1200 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230S12P0V 230 (85) 1200 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230S12P0VPBF 230 (85) 1200 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230S12P1V 230 (85) 1200 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST230S12P1VPBF 230 (85) 1200 5700 163 0.98 0.81 125 0.012 280 TO-93 (TO-209AB)
ST280S
ST280S04P0V 280 (85) 400 7850 308 0.88 0.47 125 0.012 280 TO-93 (TO-209AB)
ST280S04P1V 280 (85) 400 7850 308 0.88 0.47 125 0.012 280 TO-93 (TO-209AB)
ST280S06P0V 280 (85) 600 7850 308 0.88 0.47 125 0.012 280 TO-93 (TO-209AB)
ST280S06P1V 280 (85) 600 7850 308 0.88 0.47 125 0.012 280 TO-93 (TO-209AB)
ST300SPBF
ST300S12P0 300 (75) 1200 8000 320 0.98 0.73 125 0.008 535 TO-118 (TO-209AE)
ST300S12P0PBF 300 (75) 1200 8000 320 0.98 0.73 125 0.008 535 TO-118 (TO-209AE)
ST300S18M0PBF 300 (75) 1800 8000 320 0.98 0.73 125 0.008 535 TO-118 (TO-209AE)
ST300S20P0PBF 300 (75) 2000 8000 320 0.98 0.73 125 0.008 535 TO-118 (TO-209AE)
ST330SPBF
ST330S04P0 330 (75) 400 9000 405 0.89 0.636 125 0.008 535 TO-118 (TO-209AE)
ST330S04P0PBF 330 (75) 400 9000 405 0.89 0.636 125 0.008 535 TO-118 (TO-209AE)
ST330S04P1 330 (75) 400 9000 405 0.89 0.636 125 0.008 535 TO-118 (TO-209AE)
ST330S08P0 330 (75) 800 9000 405 0.89 0.636 125 0.008 535 TO-118 (TO-209AE)
ST330S08P0PBF 330 (75) 800 9000 405 0.89 0.636 125 0.008 535 TO-118 (TO-209AE)
ST330S08P1 330 (75) 800 9000 405 0.89 0.636 125 0.008 535 TO-118 (TO-209AE)
ST330S08P1PBF 330 (75) 800 9000 405 0.89 0.636 125 0.008 535 TO-118 (TO-209AE)
ST330S12P0 330 (75) 1200 9000 405 0.89 0.636 125 0.008 535 TO-118 (TO-209AE)

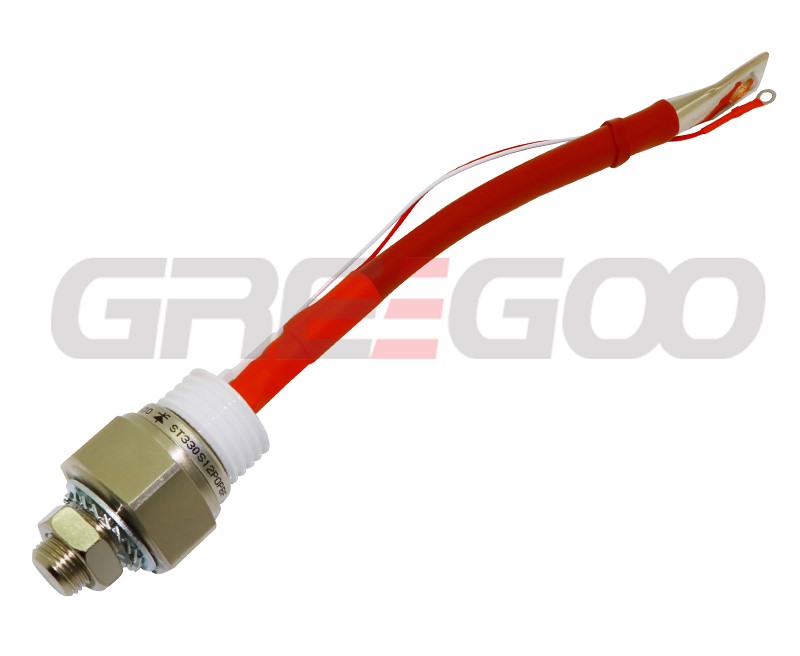

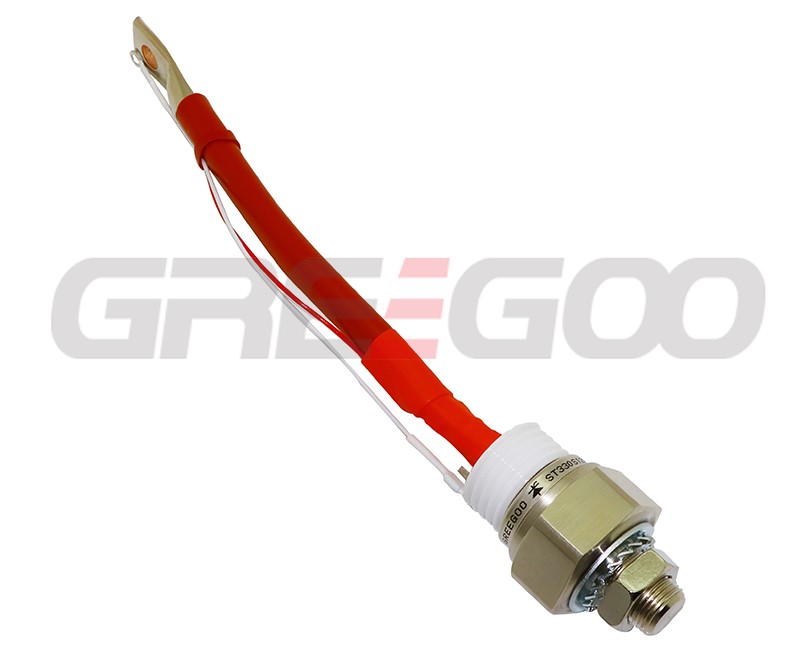

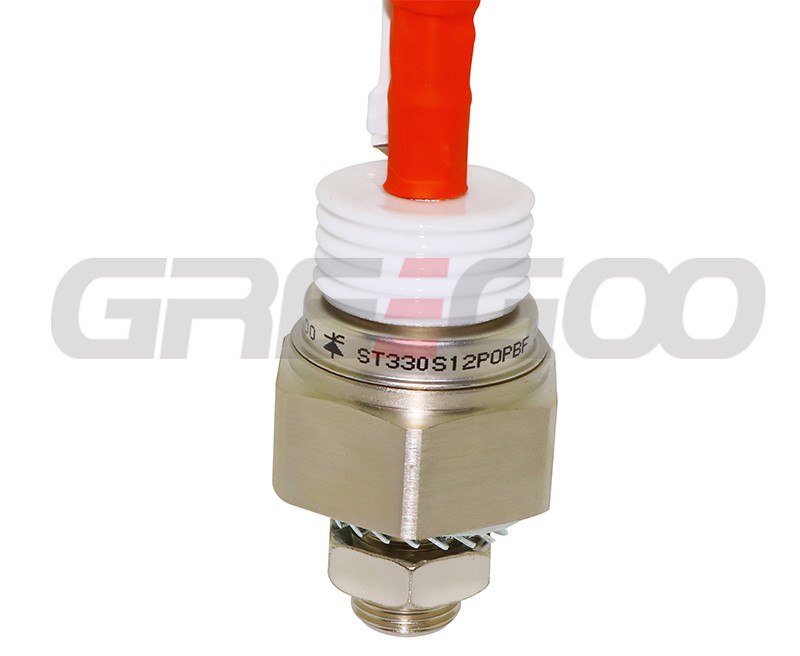

ST330S12P0PBF 330 (75) 1200 9000 405 0.89 0.636 125 0.008 535 TO-118 (TO-209AE)
ST330S12P1 330 (75) 1200 9000 405 0.89 0.636 125 0.008 535 TO-118 (TO-209AE)
ST330S12P1PBF 330 (75) 1200 9000 405 0.89 0.636 125 0.008 535 TO-118 (TO-209AE)
ST330S14P0 330 (75) 1400 9000 405 0.89 0.636 125 0.008 535 TO-118 (TO-209AE)
ST330S14P0PBF 330 (75) 1400 9000 405 0.89 0.636 125 0.008 535 TO-118 (TO-209AE)
ST330S16M1PBF 330 (75) 1600 9000 405 0.89 0.636 125 0.008 535 TO-118 (TO-209AE)
ST330S16P0 330 (75) 1600 9000 405 0.89 0.636 125 0.008 535 TO-118 (TO-209AE)
ST330S16P0PBF 330 (75) 1600 9000 405 0.89 0.636 125 0.008 535 TO-118 (TO-209AE)
ST330S16P1 330 (75) 1600 9000 405 0.89 0.636 125 0.008 535 TO-118 (TO-209AE)
ST330S16P1PBF 330 (75) 1600 9000 405 0.89 0.636 125 0.008 535 TO-118 (TO-209AE)
