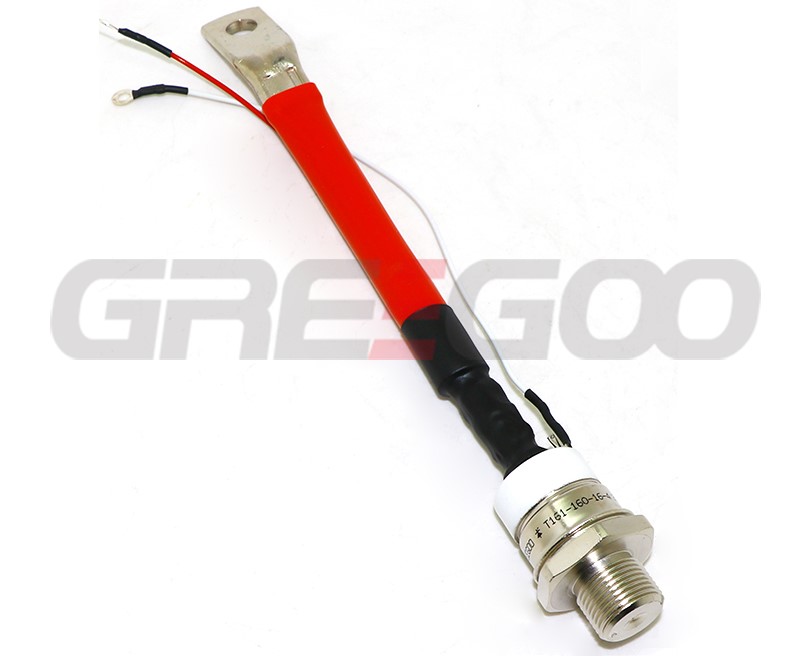

Phase Control Thyristor T161
Home Products Stud Screw Fit ThyristorStud Thyristor (Russian version)Phase Control Thyristor T161
Product Details

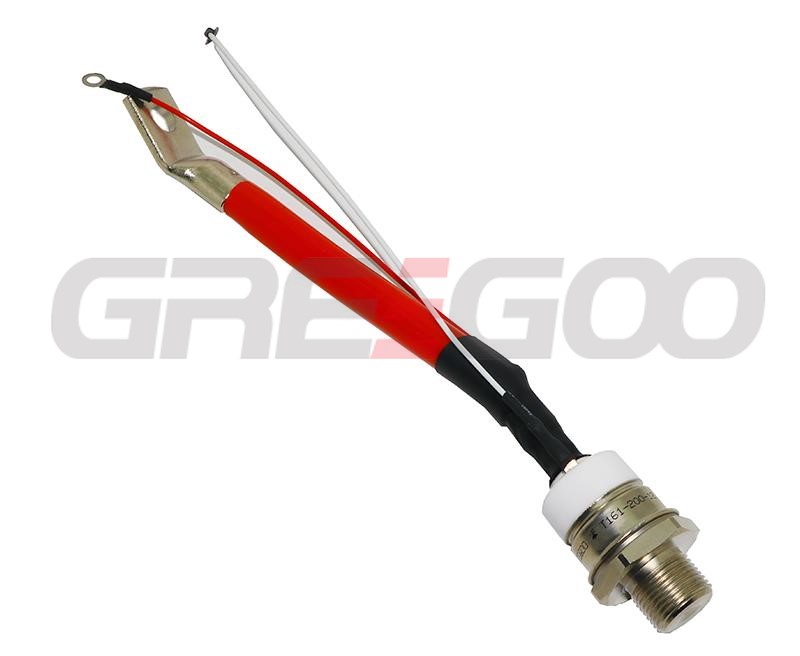

Phase Control Thyristor T161
| Type | VDRM | IT(AV) | ITSM | VTM /ITM | V T(TO) | rT | (diT/ | duD/dt) cr | t q(typ) | R th(j-c) | TVJM | Md | Case |
| VRRM | dt)cr | ||||||||||||
| (TC,ºC) | 10ms | TVJM | TVJM | TVJM | TVJM | TVJM | |||||||
| V | A | kA | V/A | V | mΩ | A/μs | V/μs | μs | ºC/W | ºC | Nm | ºC/W | |

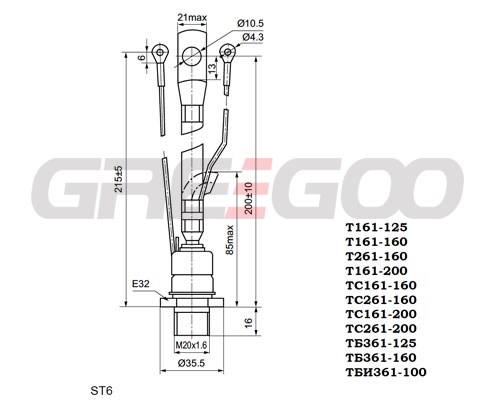

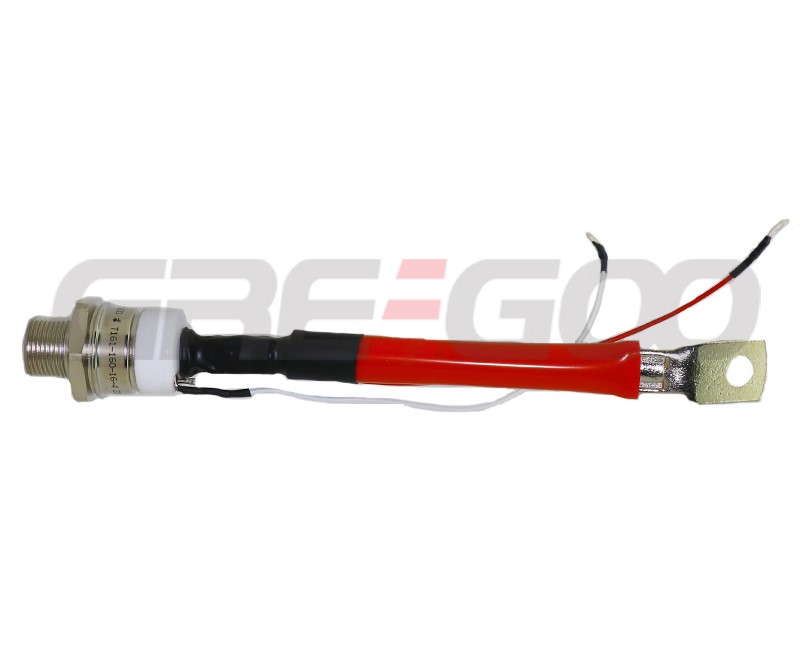

| T161-160 | 300-1800 | 160(87) | 4 | 1.70/502 | 1.05 | 1.36 | 125 | 200-1000 | 160 | 0.15 | 125 | 20-30 | ST6 |

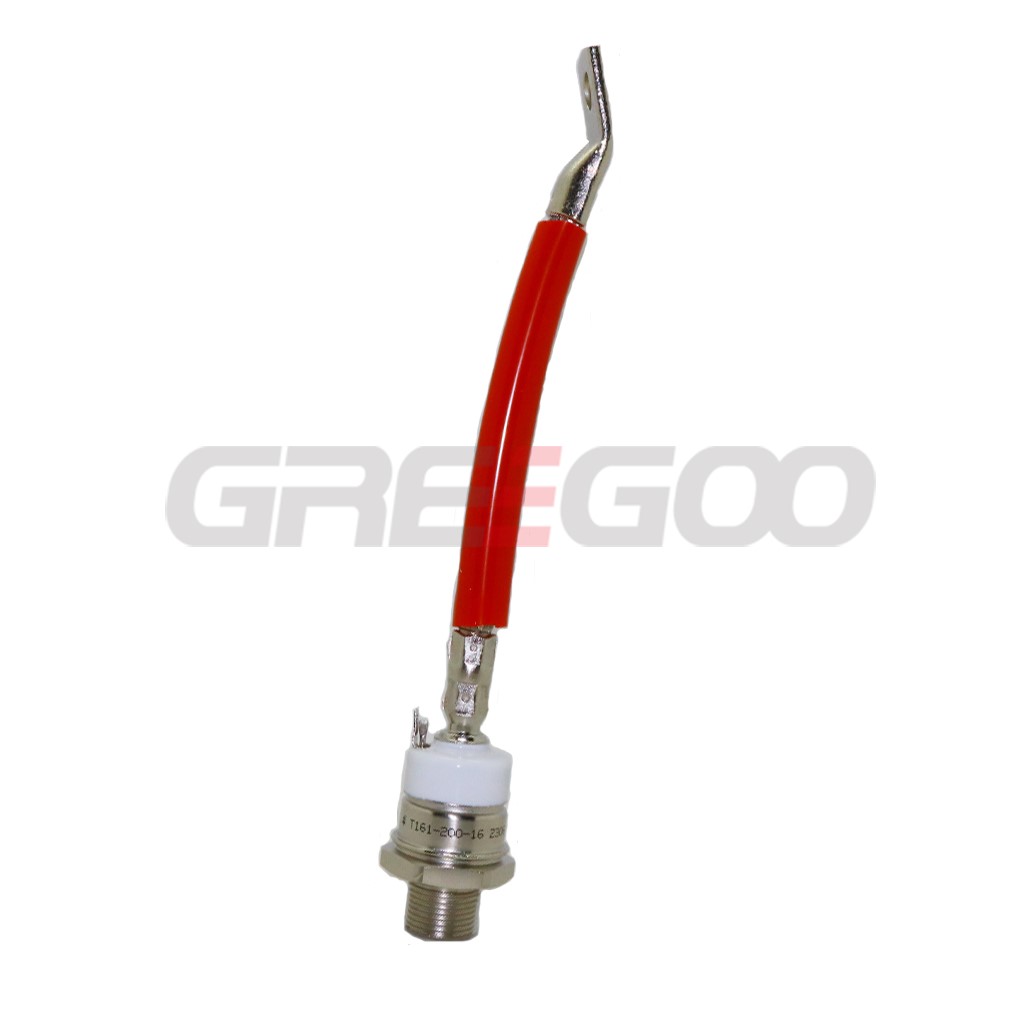

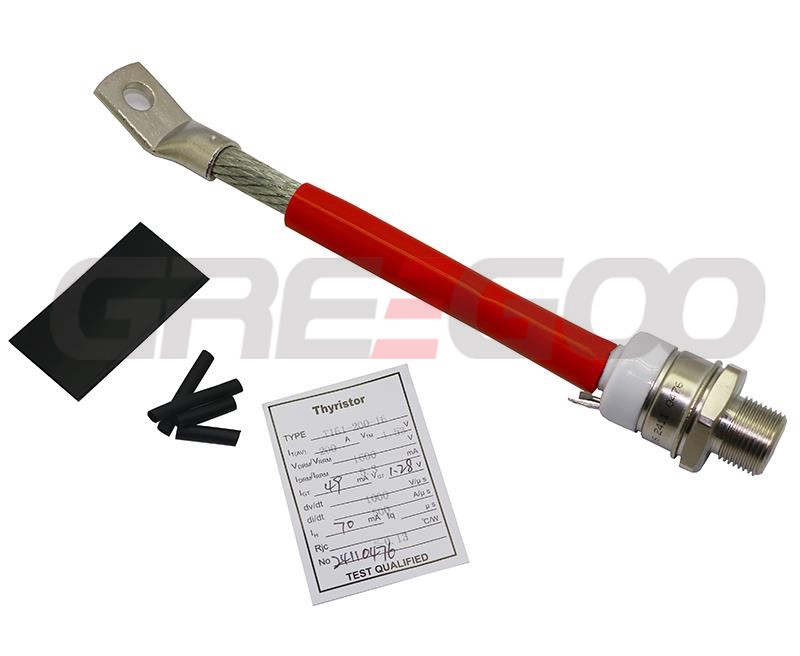

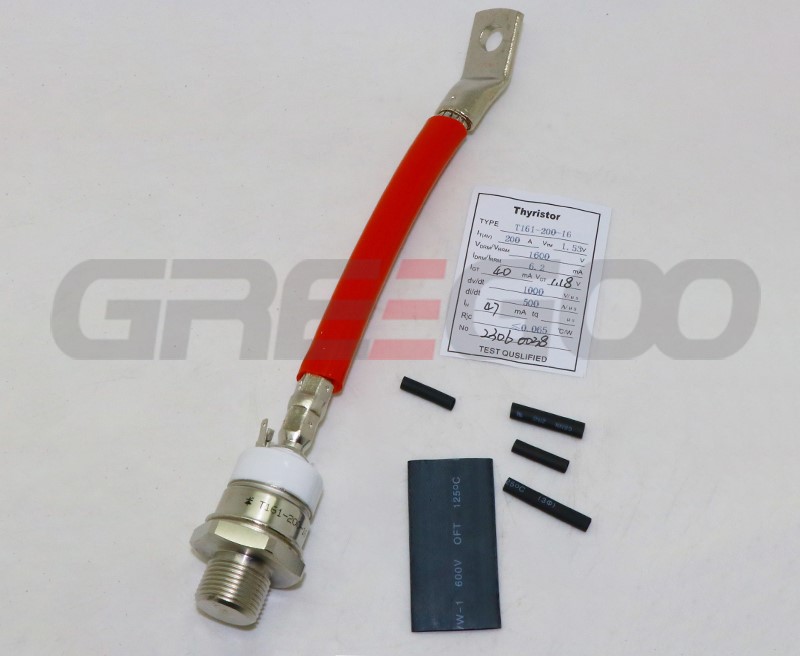

| T161-200 | 300-1600 | 200(87) | 5 | 1.60/628 | 1 | 1.05 | 160 | 200-1000 | 250 | 0.13 | 125 | 20-30 | ST6 |
