Phase Control Thyristor T132
Home Products Stud Screw Fit ThyristorStud Thyristor (Russian version)Phase Control Thyristor T132
Product Details

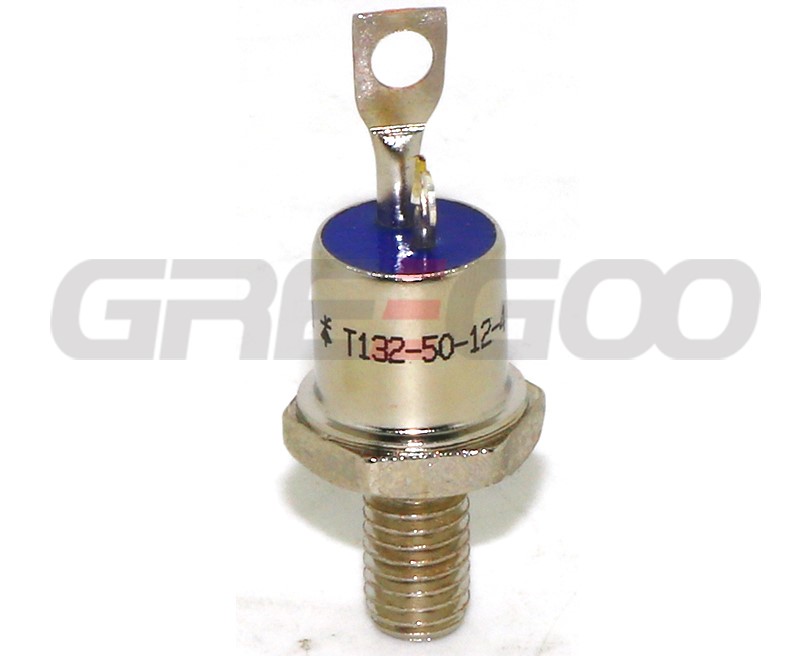

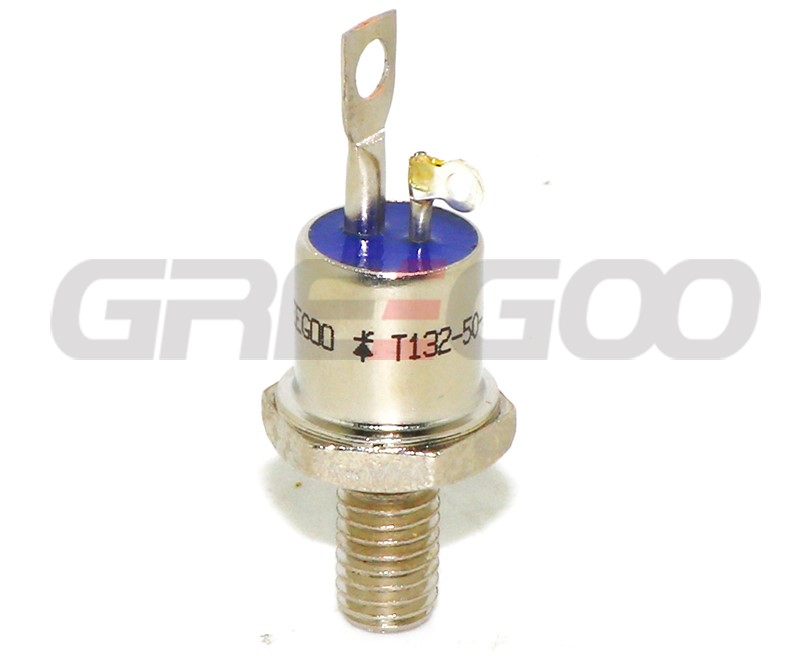

Phase Control Thyristor T132
| Model | UDRM, URRM, V | ITAV (Tc), A (°C) | ITSM, kA | UTM (ITM), V (A) | (duD/dt)crit, V/µs | tq, µs | (diT/dt)crit, A/ µs | Rthjc, °C/W |
| T132-16 | 1300-2000 | 16 (85) | 0,22 | 2,20 (50) | 50-1000 | 200 | 125 | 1 |
| T132-25 | 1300-2000 | 16 (85) | 0,33 | 2,20 (78) | 50-1000 | 200 | 125 | 0,8 |
| T132-32 | 1300-2000 | 32 (85) | 0,4 | 1,95 (100) | 50-1000 | 200 | 125 | 0,6 |
| T132-40 | 100-1200 | 40 (85) | 0,75 | 1,75 (125) | 50-1000 | 125 | 160 | 0,62 |
| T132-50 | 100-1200 | 50 (85) | 0,8 | 1,75 (160) | 50-1000 | 125 | 160 | 0,5 |
| T132-63 | 100-1200 | 63 (85) | 1,25 | 1,60 (200) | 50-1000 | 125 | 160 | 0,45 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
