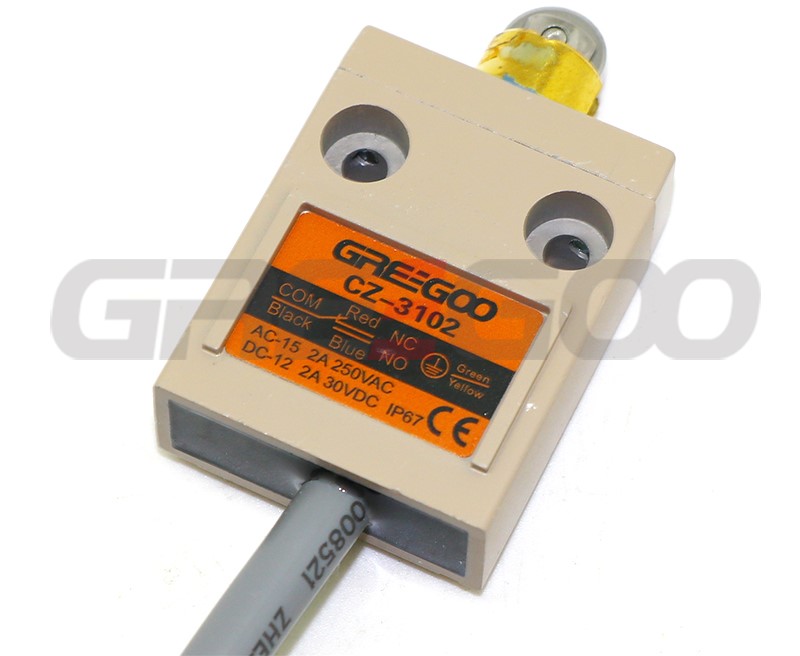

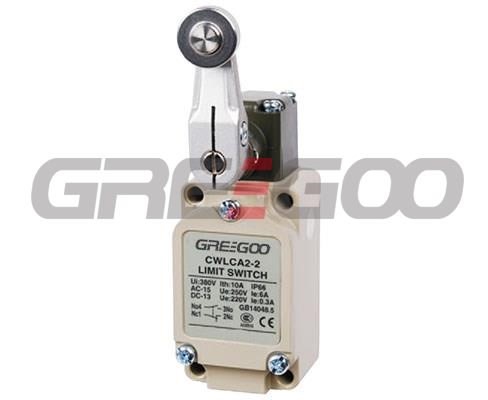

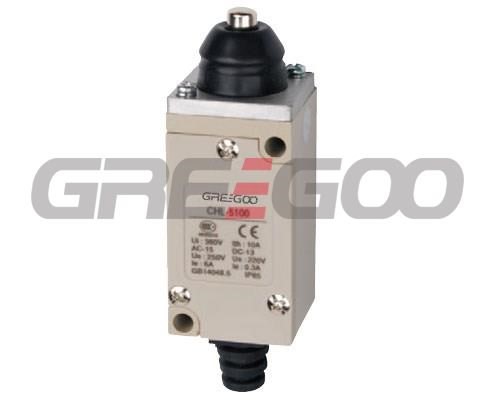

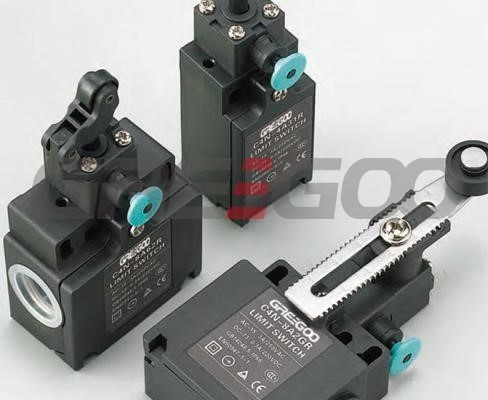

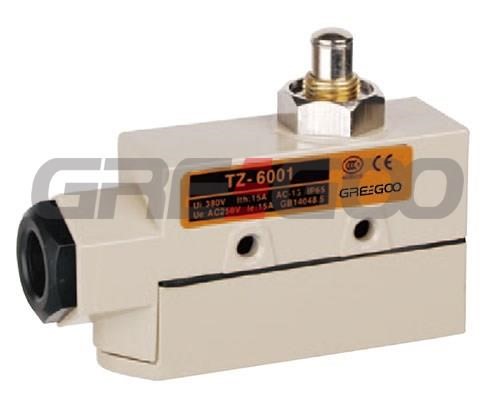

Limit Switch

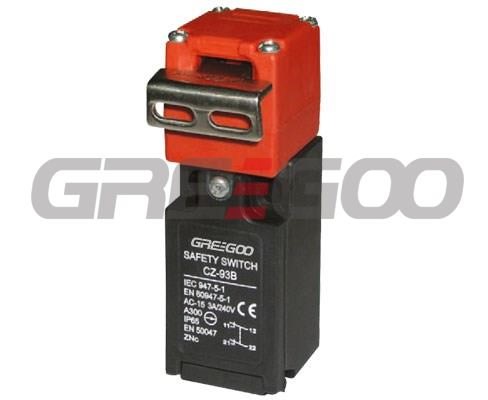

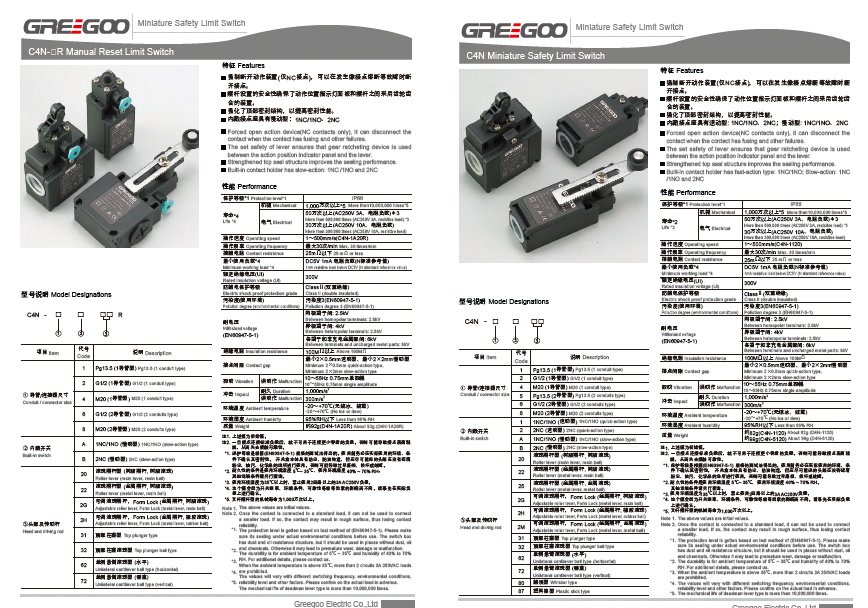

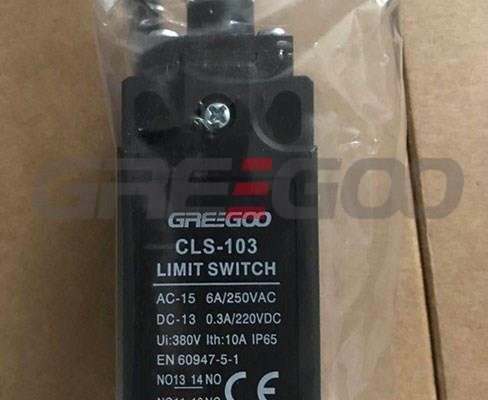

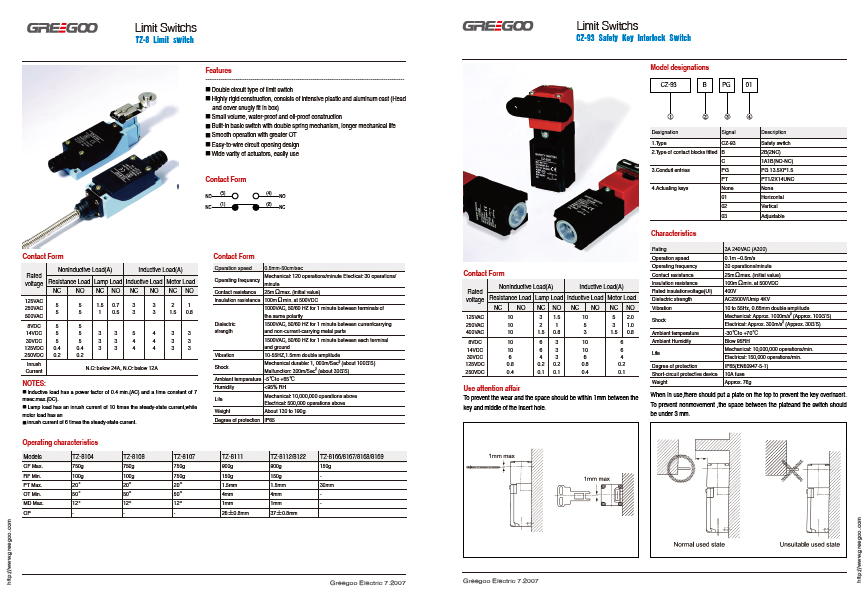

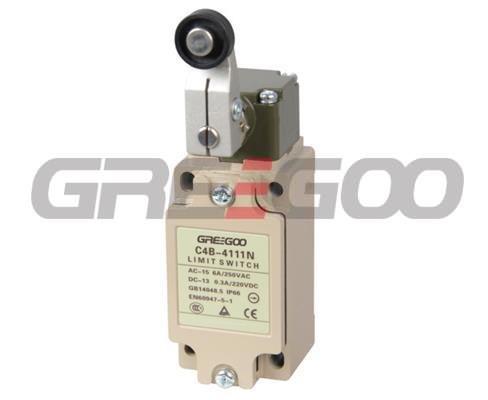

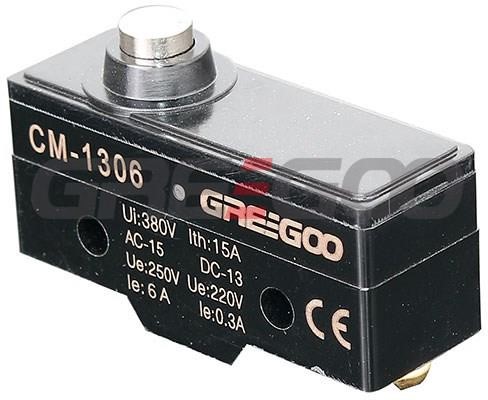

Limit Switch can be installed in a relatively stationary object or on the movement of objects, By the switch contacts opening and closing state changes to the control circuit and machine. Roller & plunger limit switch, waterproof, miniature, heavy duty and safety limit switch.
CZ-7 limit switch
| Model | CZ-7 | CZ-7100 | CZ-7110 | CZ-7310 | CZ-7311 | CZ-7312 | CZ-7120 |
| Operating force | OF (Max.) | 600g | 600g | 600g | 600g | 600g | 150g |
| Release force | RF (Min.) | 100g | 100g | 100g | 100g | 100g | 40g |
| Pre-travel | PT (Max.) | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 13.5mm |
| Over travel | OT (Min.) | 0.8mm | 5.0mm | 6.0mm | 6.0mm | 6.0mm | 4.0mm |
| Movement differential | MD (Max.) | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 3.2mm |
| Operating position | OP(mm.) | 30.5±0.8mm | 44±1.2mm | 21.8±1.2mm | 33.3±1.2mm | 33.3±1.2mm | 25±1mm |
| Free Position | FP | 35mm |
| Model | CZ-7 | CZ-7140 | CZ-7121 | CZ-7141 | CZ-7124 | CZ-7144 | CZ-7166 |
| Operating force | OF (Max.) | 220g | 180g | 240g | 200g | 280g | 120g |
| Release force | RF (Min.) | 60g | 50g | 80g | 60g | 100g | |
| Pre-travel | PT (Max.) | 8.5mm | 11.0mm | 6.5mm | 11mm | 6.5mm | 250mm |
| Over travel | OT (Min.) | 2.5mm | 3.0mm | 2.0mm | 3.0mm | 2.0mm | 11mm |
| Movement differential | MD (Max.) | 2.0mm | 2.4mm | 1.5mm | 2.4mm | 1.5mm | |
| Operating position | OP(mm.) | 25±1mm | 40±1mm | 40±1mm | 50±1.2mm | 50±1.2mm | |
| Free Position | FP | 32mm | 46mm | 56mm |
|

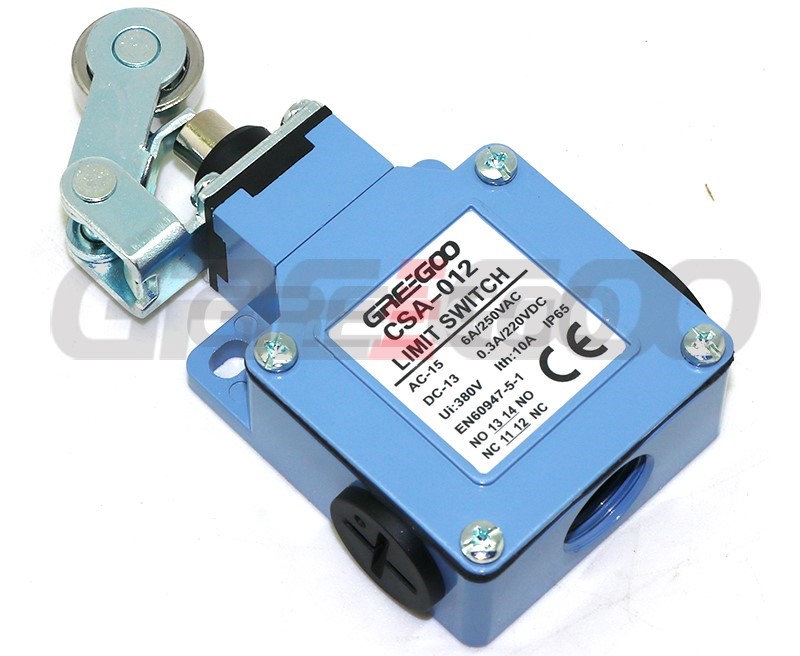

CSA limit switch
| Model | CSA | CSA-001 | CSA-003 | CSA-012 |
CSA-021 CSA-021M |
CSA-041 |
CSA-031 CSA-031M |
CSA-051 | CSA-061 | CSA-071 | CSA-081 | |
| Operating force | OF | (Max.) | 800g | 800g | 800g | 400g | 400g | 400g | 400g | 150g | 150g | 150g |
| Release force | RF | (Min.) | 400g | 400g | 400g | 100g | 100g | 100g | 100g | 50g | 50g | 50g |
| Pre-travel | PT | (Max.) | 1.8mm | 1.8mm | 1.8mm | 20° | 20° | 20° | 20° | 30mm | 30mm | 30mm |
| Tripping position | TP±10% | 2.0mm | 2.0mm | 2.0mm | 22.5° | 22.5° | 22.5° | 22.5° | 22.5° | 22.5° | 22.5° | |
| Movement differential | MD (Max.) | 1.2mm | 1.2mm | 1.2mm | 10° | 10° | 10° | 10° | 14° | 14° | 14° | |
| Over travel | OT | (Min.) | 4.0mm | 4.0mm | 4.0mm | 75° | 75° | 75° | 75° | 20mm | 20mm | 20mm |
| Total travel | TT | (Min.) | 5.8mm | 5.8mm | 5.8mm | 95° | 95° | 95° | 95° | 50mm | 50mm | 50mm |
| Rotary indexing | 22.5° | 22.5° | 22.5° | 22.5° |
