Inductive sensor LM12
Home Products Industrial SensorInductive sensorInductive sensor LM12
Product Details
Inductive sensor LM12
| Model NO. | Detection distance | Working voltage | Output | Flush | |
| Form | State | ||||

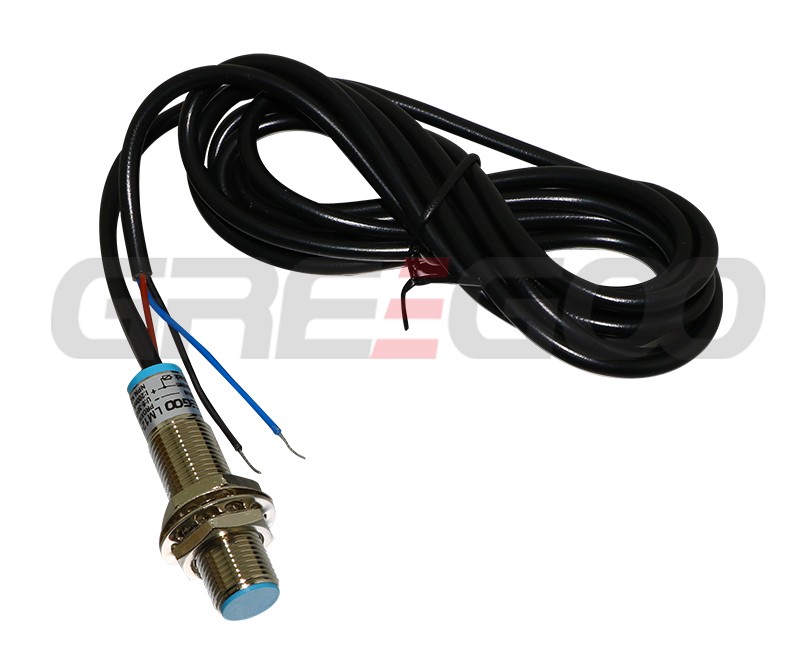

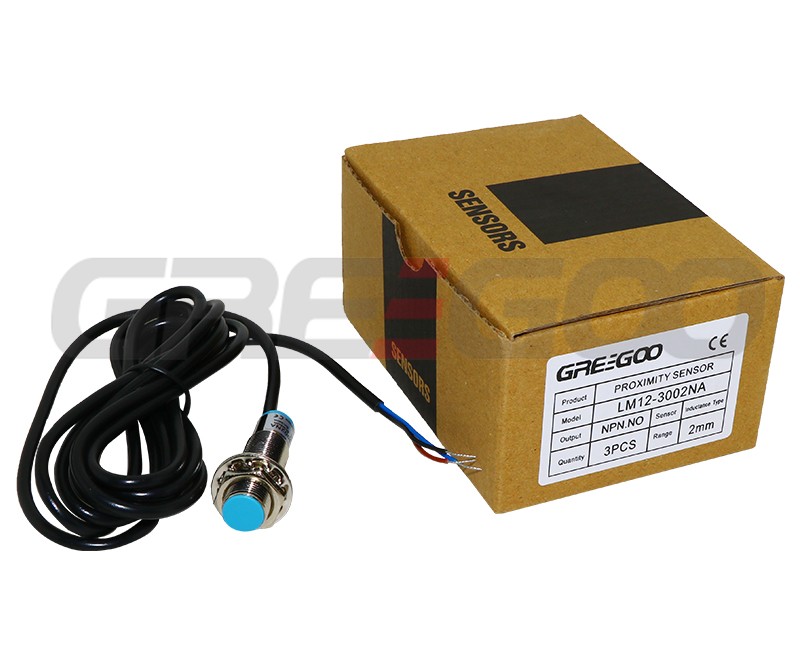

| LM12-3002NA | 2mm | DC6-36V | NPN | NO | Flush |
| LM12-3002NB | 2mm | DC6-36V | NPN | NC | Flush |
| LM12-3002NC | 2mm | DC6-36V | NPN | NO NC | Flush |

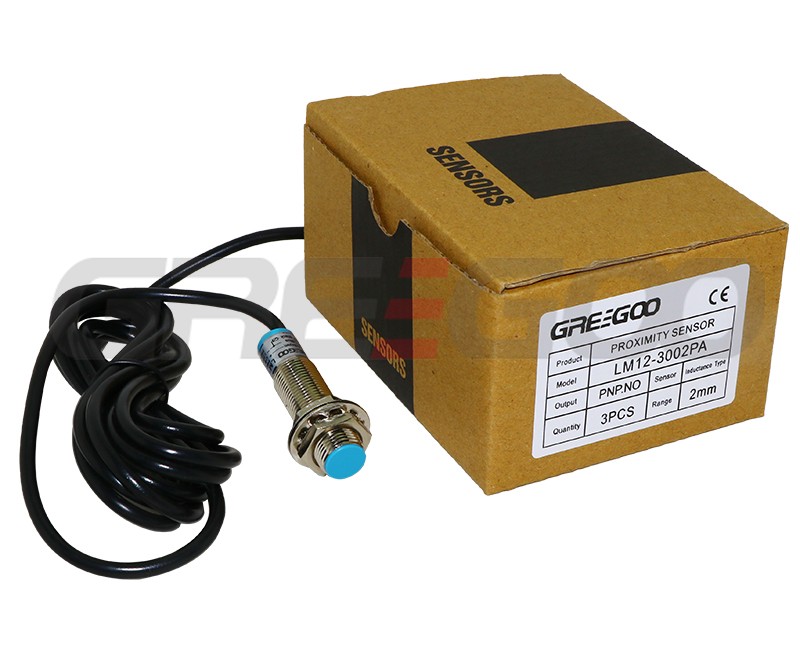

| LM12-3002PA | 2mm | DC6-36V | PNP | NO | Flush |
| LM12-3002PB | 2mm | DC6-36V | PNP | NC | Flush |
| LM12-3002PC | 2mm | DC6-36V | PNP | NO NC | Flush |
| LM12-3002LA | 2mm | DC6-36V | Two wire system | NO | Flush |
| LM12-3002LB | 2mm | DC6-36V | Two wire system | NC | Flush |
| LM12-2002A | 2mm | AC90-250 | SCR Control label silicon | NO | Flush |
| LM12-2002B | 2mm | AC90-250 | SCR Control label silicon | NC | Flush |

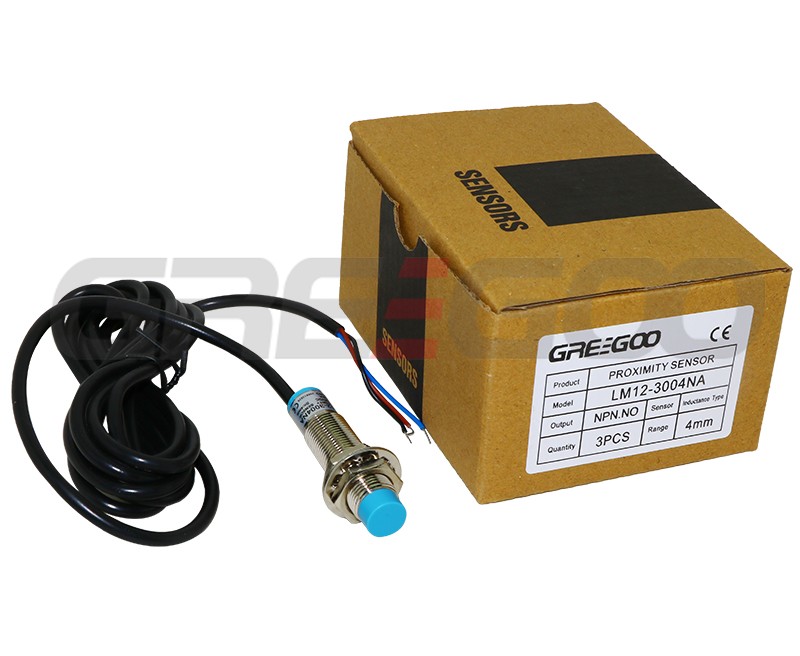

| LM12-3004NA | 4mm | DC6-36V | NPN | NO | Non-flush |
| LM12-3004NB | 4mm | DC6-36V | NPN | NC | Non-flush |
| LM12-3004NC | 4mm | DC6-36V | NPN | NO NC | Non-flush |

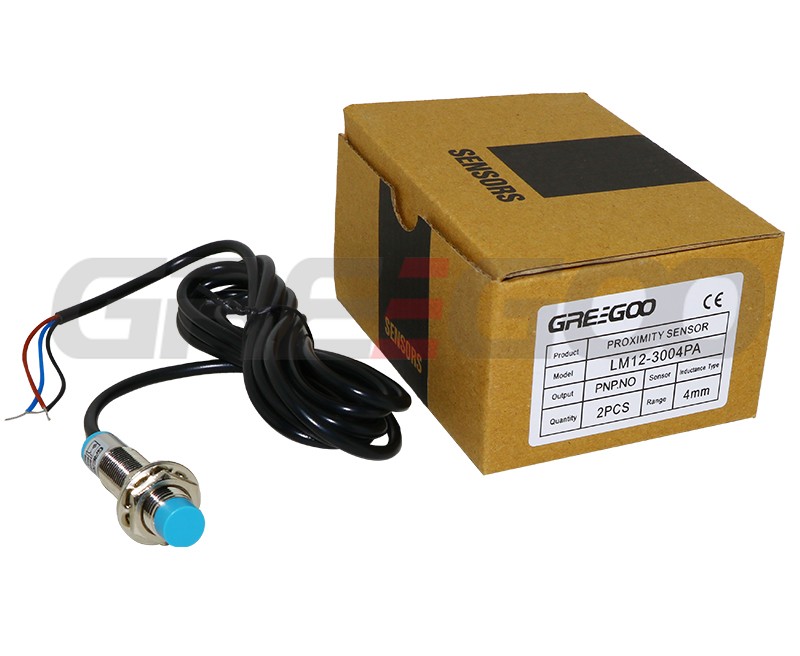

| LM12-3004PA | 4mm | DC6-36V | PNP | NO | Non-flush |
| LM12-3004PB | 4mm | DC6-36V | PNP | NC | Non-flush |
| LM12-3004PC | 4mm | DC6-36V | PNP | NO NC | Non-flush |
| LM12-3004LA | 4mm | DC6-36V | Two wire system | NO | Non-flush |
| LM12-3004LB | 4mm | DC6-36V | Two wire system | NC | Non-flush |

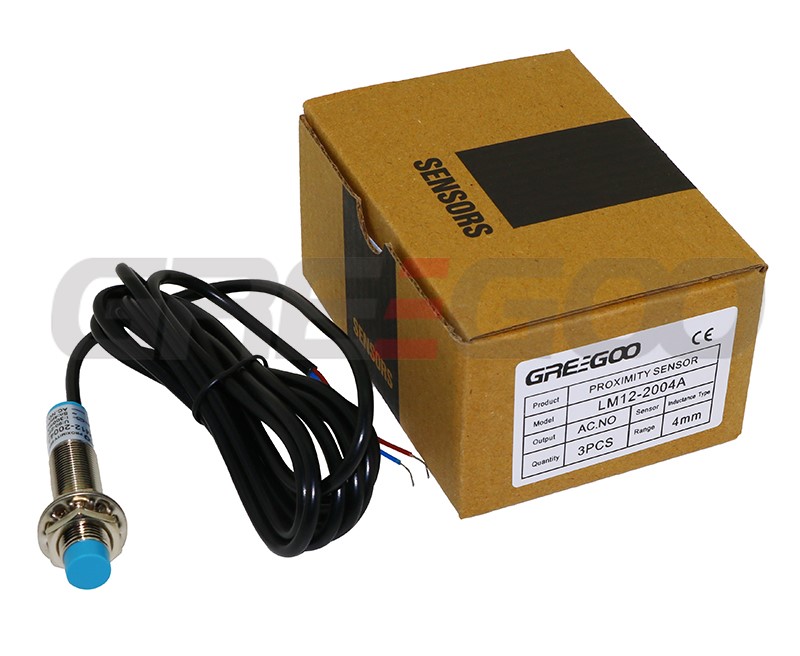

| LM12-2004A | 4mm | AC90-250 | SCR Control label silicon | NO | Non-flush |
| LM12-2004B | 4mm | AC90-250 | SCR Control label silicon | NC | Non-flush |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
