Inductive proximity sensor LM36
Home Products Proximity Photoelectric SensorInductive proximity sensor (Rectangular type)Inductive proximity sensor LM36
Product Details

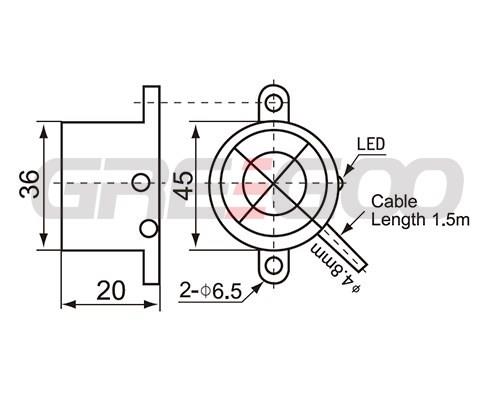

Inductive proximity sensor LM36
| Model NO. | Detection distance | Working voltage | Output | Flush | |
| Form | State | ||||
| LM36-3015NA | 15mm | DC6-36V | NPN | NO | Non-flush |
| LM36-3015NB | 15mm | DC6-36V | NPN | NC | Non-flush |
| LM36-3015NC | 15mm | DC6-36V | NPN | NO NC | Non-flush |
| LM36-3015PA | 15mm | DC6-36V | PNP | NO | Non-flush |
| LM36-3015PB | 15mm | DC6-36V | PNP | NC | Non-flush |
| LM36-3015PC | 15mm | DC6-36V | PNP | NO NC | Non-flush |
| LM36-3015LA | 15mm | DC6-36V | Two wire system | NO | Non-flush |
| LM36 -3015LB | 15mm | DC6-36V | Two wire system | NC | Non-flush |
| LM36 -2015A | 15mm | AC90-250V | SCR Control label silicon | NO | Non-flush |
| LM36-2015B | 15mm | AC90-250V | SCR Control label silicon | NC | Non-flush |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
