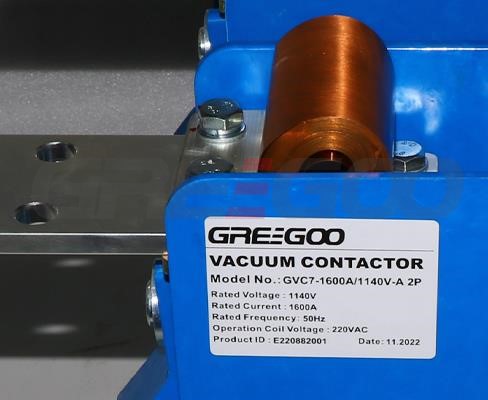

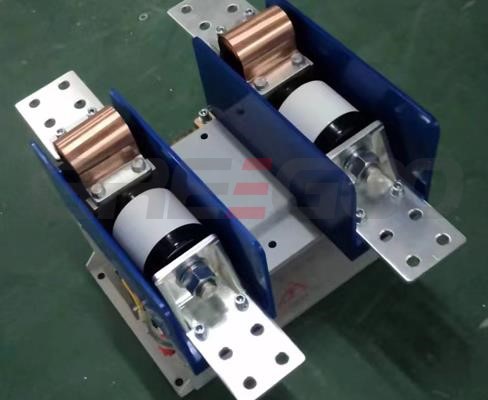

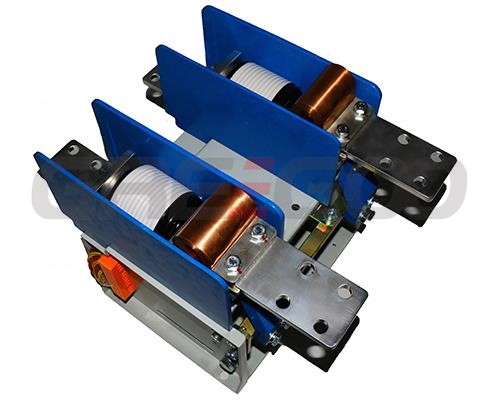

GVC7-1600A 2 pole vacuum contactors
GVC7-1600A/1140V 2P vacuum contactor | Unit | Value | ||||
Main circuit | Rated working voltage (Ue) | V | 1140 | |||
Rated working current (Ie) | A | 1600 | ||||
Rated frequency (fr) | Hz | 50 | ||||
Rated making capacity | A | 4Ie (AC-2) | ||||
Rated breaking capacity | A | 4Ie (AC-2) | ||||
Power frequency withstand voltage | Between phases, phase to earth | kV | 4.2 | |||
Vacuum breaks | kV | 10 | ||||
Lightening impulse withstand voltage | kV | 8 | ||||
Control circuit | Rated voltage (Us) | V | AC. 110/220/380 | |||
Rated power (Ps) | Electric holding | VA | ≤1000/100 (absorbing/holding) | |||
Mechanical holding | VA | ≤900/600 (closing/opening) | ||||

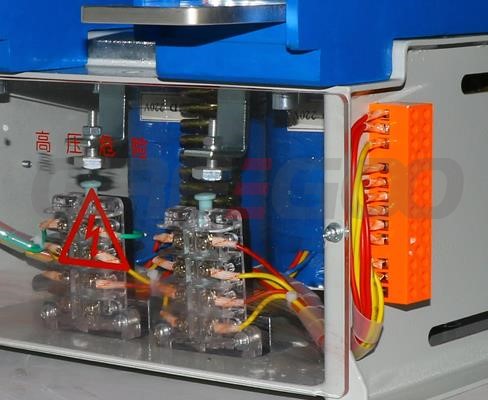

Auxiliary circuit | Form | 3a 3b | ||||
Rated value | AC380V/5A, DC380V/1A | |||||
Control circuit, auxiliary circuit to earth power frequency withstand voltage | kV | 2 | ||||
Rated operating frequency | Long-term or mechanical holding type | time/h | 300 | |||
Short-term | time/h | 600 | ||||
Mechanical endurance2 | 10000 times | 30 | ||||
Electrical endurance | 10000 times | 10 | ||||
Mechanical characteristics | Closing time | ms | ≤200 | |||
Original opening time | ms | ≤160(electric holding) | ||||
≤60(mechanical holding) | ||||||
Closing tripping | ms | ≤10 | ||||
Remark: 1.rated control voltage can be made according to customer’s requirements. |
