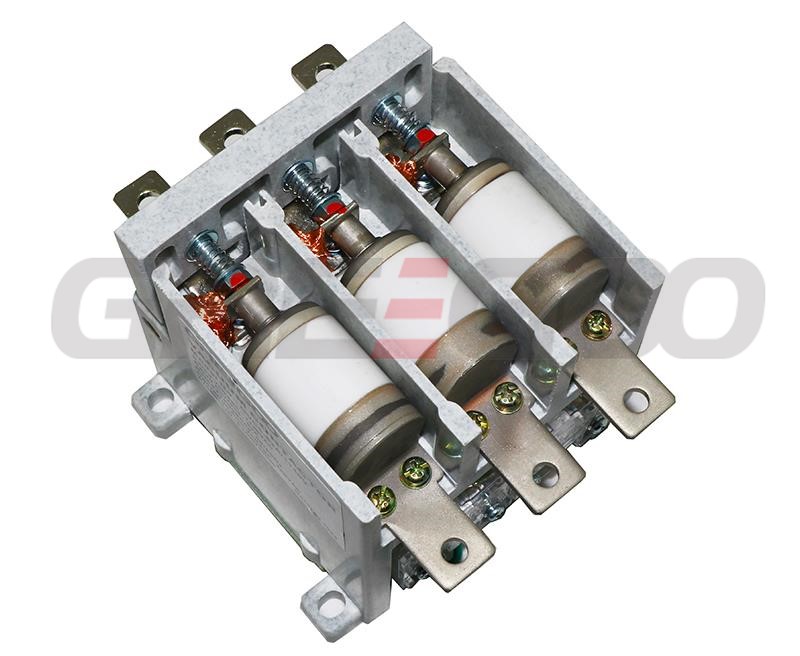

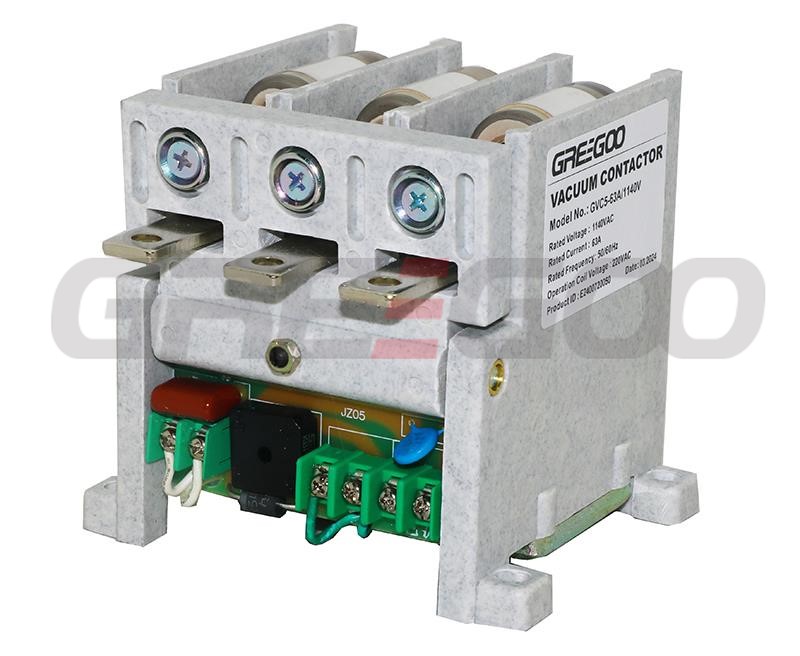

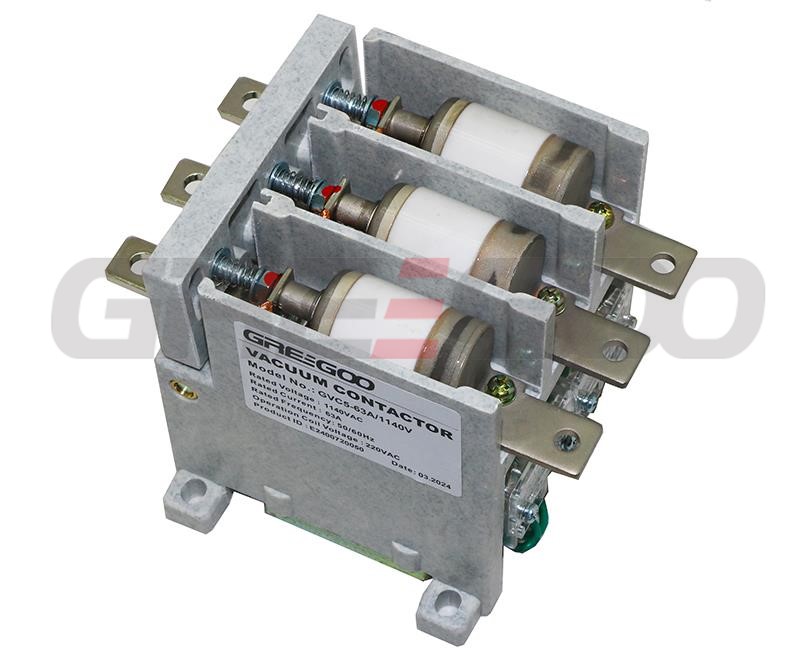

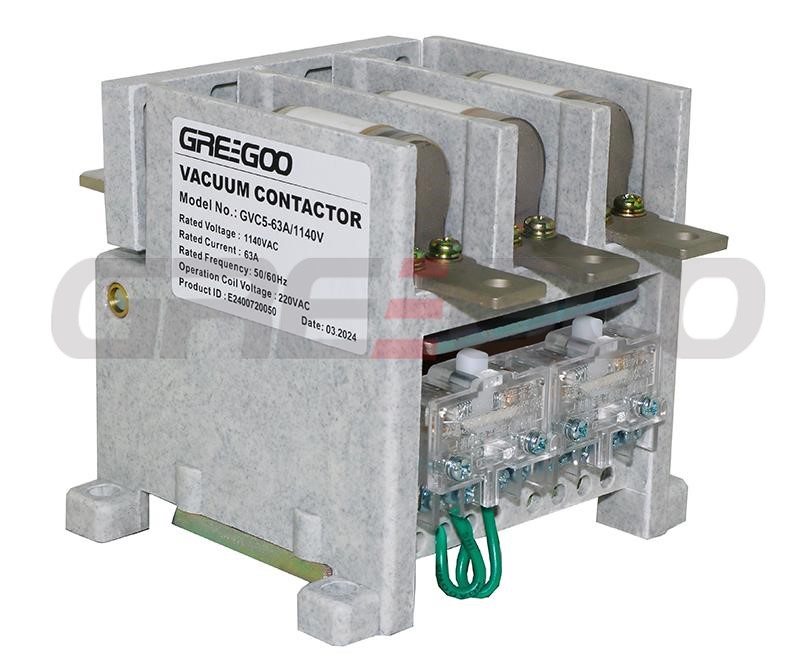

GVC5-63A-1.14KV Vacuum Contactor

Model # GVC5-63A-1.14KV Vacuum Contactor

Rated Voltage: 1.14KV

Rated Current: 63A

Control voltage: 36V, 110V, 220V, 380V

Power frequency voltage resistance: 4200V for main circuit, 2500V for auxiliary circuit, 2000V for control circuit

Making capacity: 10Ie

Breaking capacity: 8Ie

Main contact distance: 1.6 ±0.2mm,Overtravel: > 0.8mm, Final force: 30 ±5N

Mechanical life: 300x104times

Electrical life: 60x10for AC-3 and 6x10for AC-4

Weight: 1.7kgs

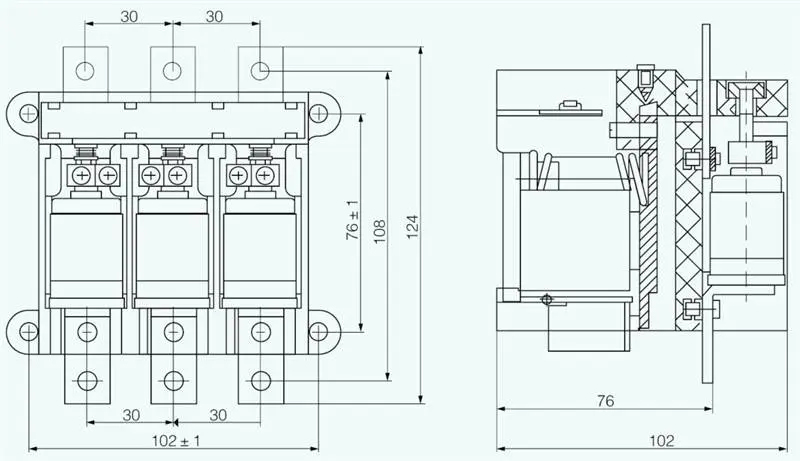

Dimensions
