GBPC Bridge rectifier 15A to 50A
Home Products Bridge RectifierSingle phase bridge rectifier (Fast-on type)GBPC Bridge rectifier 15A to 50A
Product Details

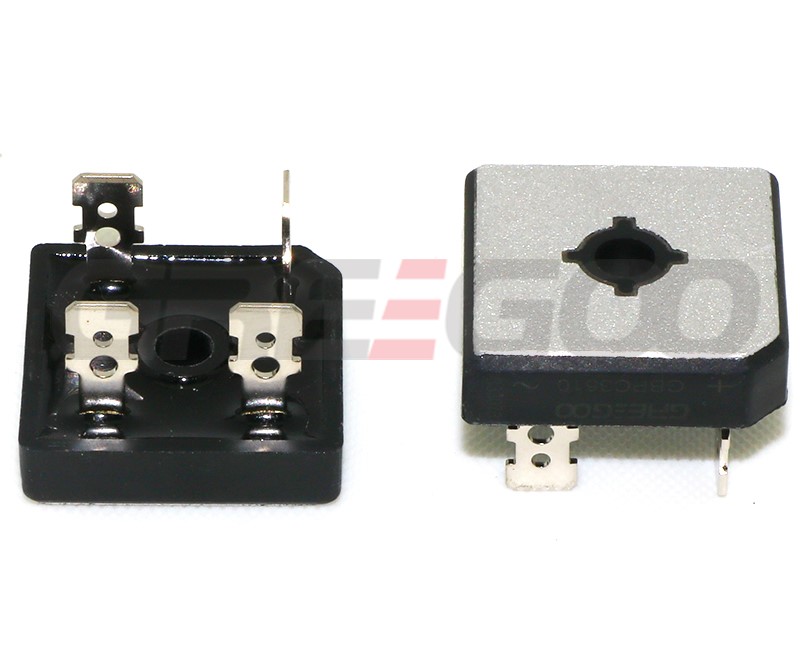

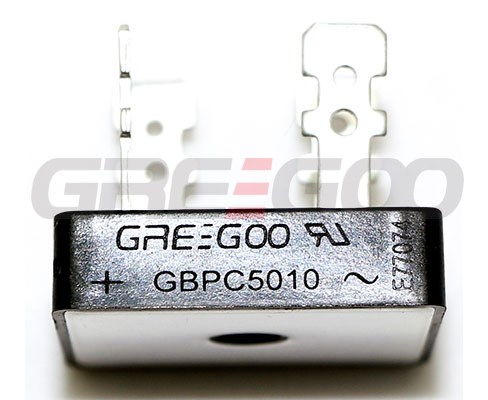

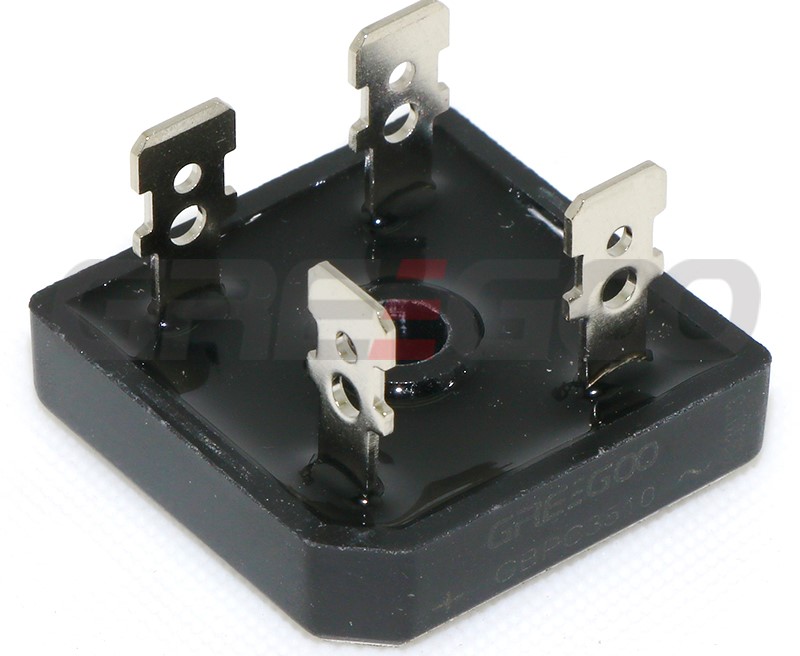

GBPC Bridge rectifier 15A to 50A
Features
- Glass passivated chip
- Low reverse leakage current
- High surge current capability
- Compliant to RoHS directive 2011/65/EU
Applications
- Electric welder
- Industrial power supply
- Inverter
- Uninterruptible power supply

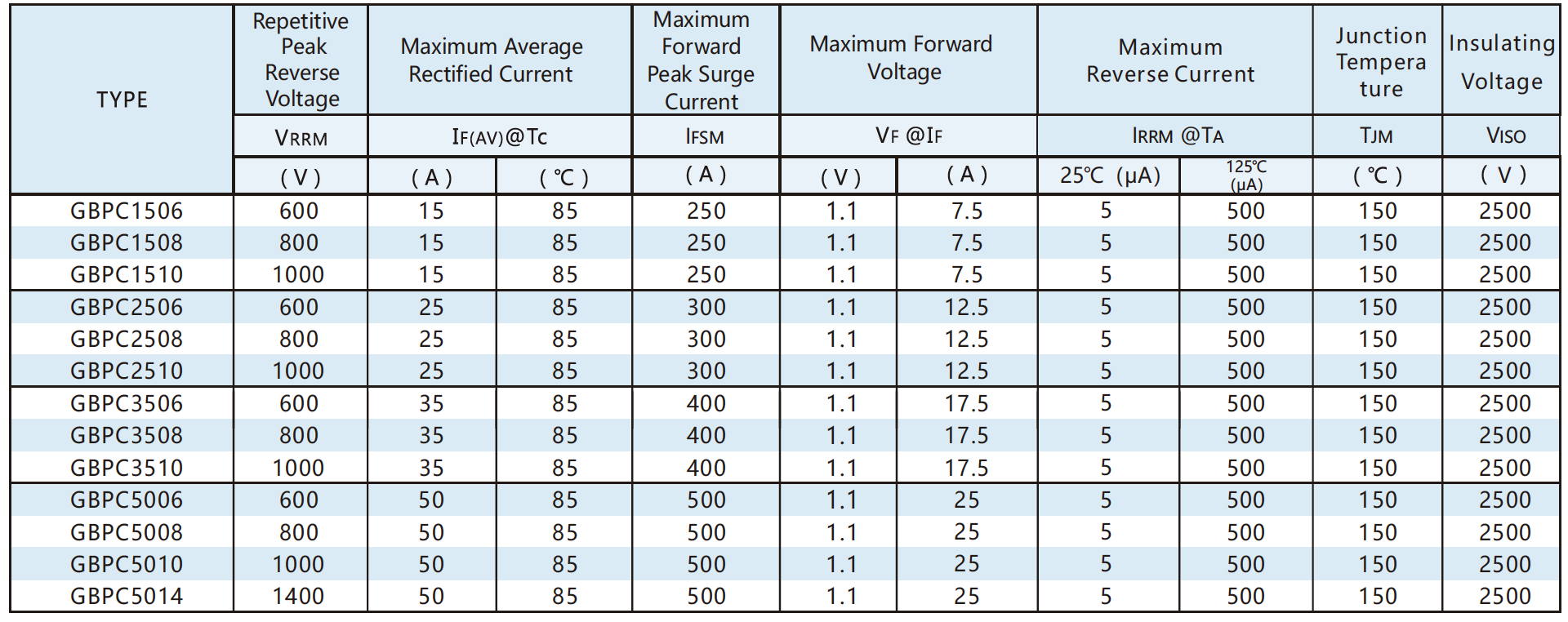

GBPC1506, GBPC1508, GBPC1510, GBPC2506, GBPC2508,GBPC2510, GBPC3506, GBPC3508, GBPC3510, GBPC5006, GBPC5008, GBPC5010, GBPC5014
