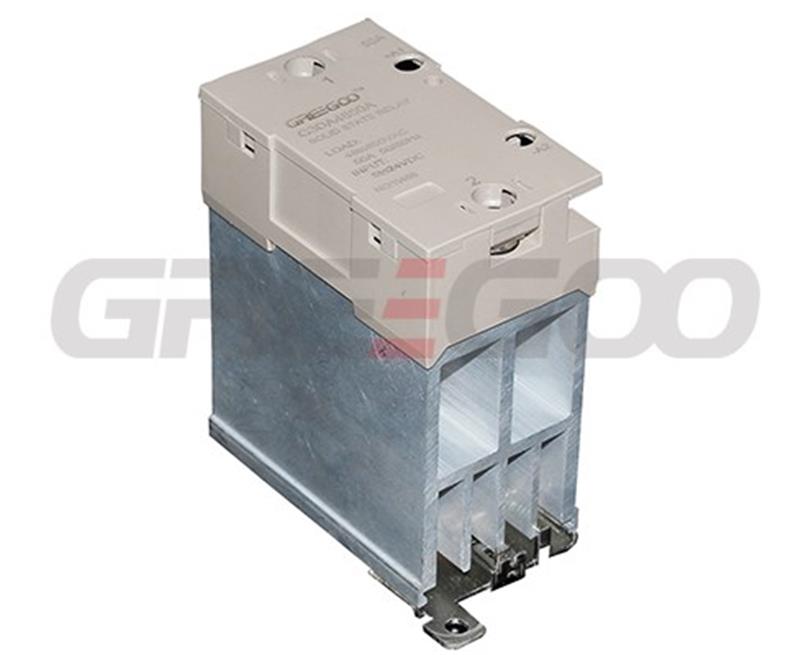

G3DA4860 solid state relays ssr
AC SSR (60A) of all-in-one radiator
- Zero-cross type.
- Guide rail installing.
- Rated current 60A.
- Enhanced type.
- RC absorption protection.
- Double LED indicate input & output condition.
- Authentication symbol.
| Model | G3DA4860 |
| Output | SCR |
| Operating Voltage Range (Max. Vrms) | 48-600Vac |
| Peak voltage(V peak) | 1000Vac |
| Rated operating current (A) | 60 |
| Off state maximum leakage (mA) (T=25℃ Vmax) | 3 |
| Turn-on voltage (V) max, T=25℃ | ≤1.2 |
| Static state (off-state) dv/dt(V/us) | 500 |
| Frequency range (Hz) | 47/63 |
| Input voltage(V) | 3.5-24VDC |
| Input parameter | 14-18 (automatic limit current) |
| Operate time | ≤10ms (0.5cycle) Max |
| Response time (opened) | ≤10ms (0.5cycle) Max |
| Operating temperature(℃) | -40℃-80℃ |
| Isolation bet in & out(Vrms) | ≥2000V |
| Isolation to case(Viso)(Vrms) | ≥2000V |
