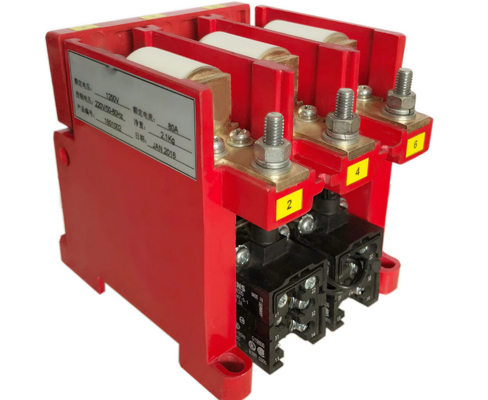

EVS-80 Vacuum Contactors 80A 1200V
| Type | EVS80/1.2KV |
| Nominal operational voltage | 1200V / 50-60Hz |
| Nominal insulation voltage | 1200V / 50-60Hz |
| Testing voltage 50 Hz/60 sec. between poles and in breaking path | 4.2Kv |
| Nominal operational and thermal current | 80А |
| Nominal switching capacities making current | 2360A |
| Nominal switching capacities breaking current | 1340A |
| Nominal short-time current (1 sec.) | 1340A |
| Nominal dynamic current | 2360A |
| Utilisation category | АС1, АС2, АС3, АС4 |
| Permissible switching frequency | 1200 operations / hour |
| Mechanical life | 1·106 |
| Electrical life: AC3 | 3·105 |
| AC4 | 1·105 |
| Closing time | ≤ 30ms |
| Breaking time | ≤ 80ms |
| Vacuum interrupters | 3 pcs. |
| Contact operating travel | 1.5±0.2MM |
| Weight/Volume | 1.8kgS |
| Dimensions | see dimension drawing |
| Auxiliary circuits: | |
| Rated control supply voltage | 230V, 120V, 50-60Hz; 15%,-25% |
| Rated hold-in consuption | 9VA |
| Auxiliary contacts (AC 15: 230V/6A) | 2NO 1NC |
