Dual diode module 26-110A
Home Products Thyristor Diode ModuleDual Diode ModuleDual diode module 26-110A
Product Details

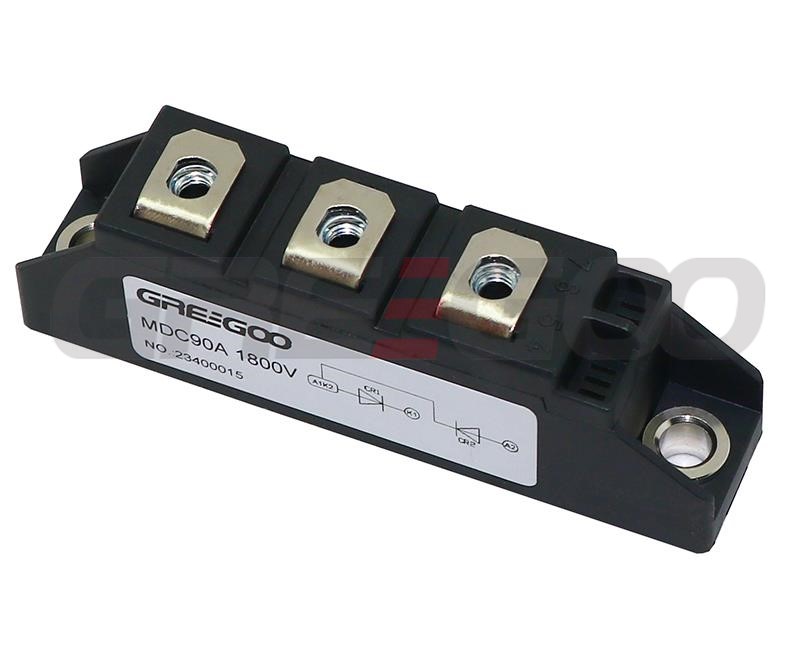

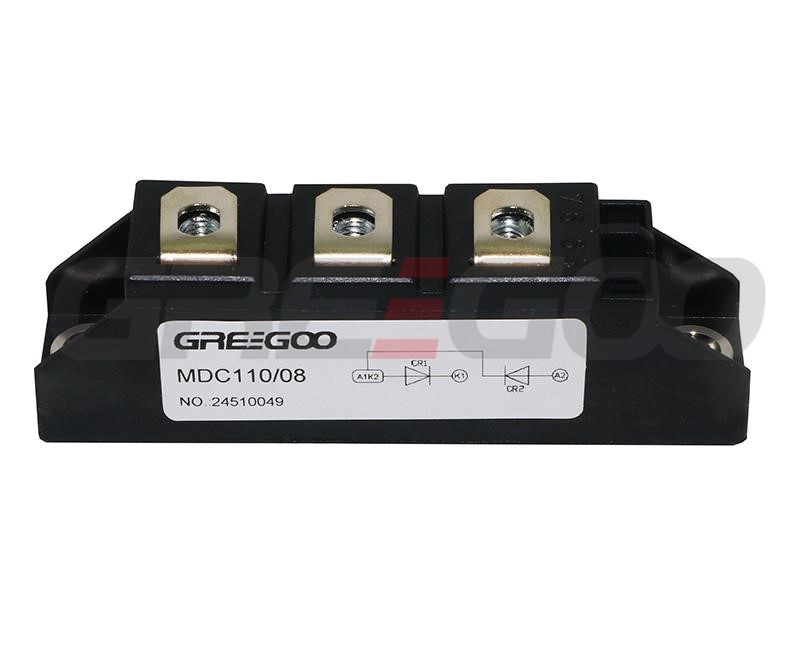

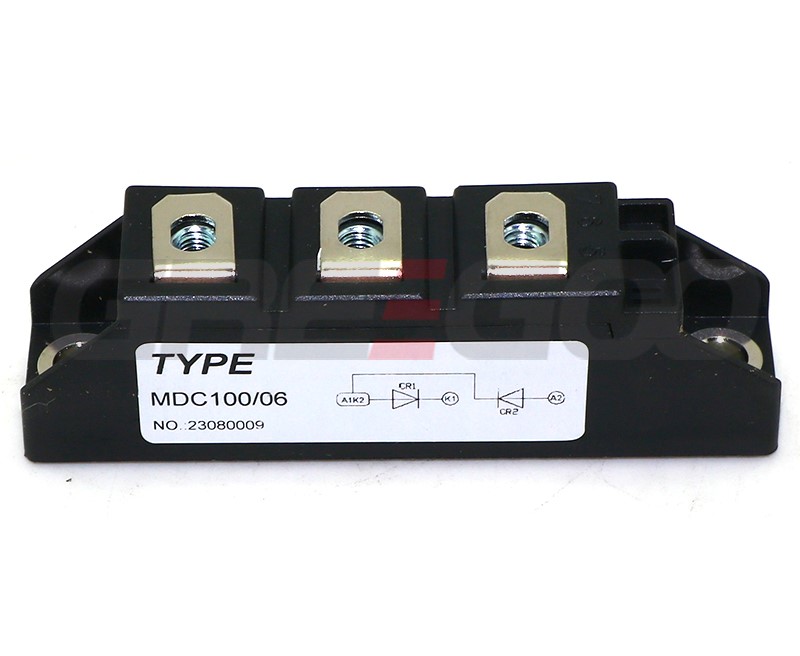

Dual diode module 26-110A
| Symbol | Meaning |
| M | Module |
| D | Rectifier diode |
| C | C - in series, A - common anode, K - common cathode, X - anti-parallel |
| 26 | Average current |
| 12 | Voltage code: code x 100 = VRRM |
| Eg. | MDC26-12, Dual diode module, in series connection, 26A, 1600V. |

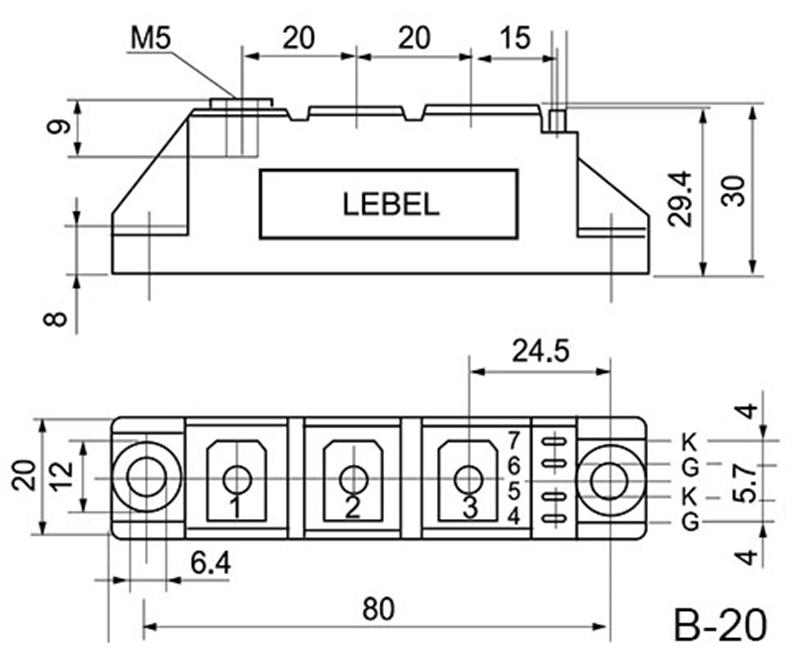

| Model No. | IF(AV) | VRRM | Package |
| MDC26-06 | 26A | 600V | B20 |
| MDC26-10 | 26A | 1000V | B20 |
| MDC26-12 | 26A | 1200V | B20 |
| MDC26-16 | 26A | 1600V | B20 |
| MDC26-18 | 26A | 1800V | B20 |
| MDC40-06 | 40A | 600V | B20 |
| MDC40-10 | 40A | 1000V | B20 |
| MDC40-12 | 40A | 1200V | B20 |
| MDC40-16 | 40A | 1600V | B20 |
| MDC40-18 | 40A | 1800V | B20 |
| MDC55-06 | 55A | 600V | B20 |
| MDC55-10 | 55A | 1000V | B20 |
| MDC55-12 | 55A | 1200V | B20 |
| MDC55-16 | 55A | 1600V | B20 |
| MDC55-18 | 55A | 1800V | B20 |
| MDC70-06 | 70A | 600V | B20 |
| MDC70-10 | 70A | 1000V | B20 |
| MDC70-12 | 70A | 1200V | B20 |
| MDC70-16 | 70A | 1600V | B20 |
| MDC70-18 | 70A | 1800V | B20 |
| MDC90-06 | 90A | 600V | B20 |
| MDC90-10 | 90A | 1000V | B20 |
| MDC90-12 | 90A | 1200V | B20 |
| MDC90-16 | 90A | 1600V | B20 |
| MDC90-18 | 90A | 1800V | B20 |
| MDC110-06 | 110A | 600V | B20 |
| MDC110-10 | 110A | 1000V | B20 |
| MDC110-12 | 110A | 1200V | B20 |
| MDC110-16 | 110A | 1600V | B20 |
| MDC110-18 | 110A | 1800V | B20 |
| MDK26-06 | 26A | 600V | B20 |
| MDK26-10 | 26A | 1000V | B20 |
| MDK26-12 | 26A | 1200V | B20 |
| MDK26-16 | 26A | 1600V | B20 |
| MDK26-18 | 26A | 1800V | B20 |
| MDK40-06 | 40A | 600V | B20 |
| MDK40-10 | 40A | 1000V | B20 |
| MDK40-12 | 40A | 1200V | B20 |
| MDK40-16 | 40A | 1600V | B20 |
| MDK40-18 | 40A | 1800V | B20 |
| MDK55-06 | 55A | 600V | B20 |
| MDK55-10 | 55A | 1000V | B20 |
| MDK55-12 | 55A | 1200V | B20 |
| MDK55-16 | 55A | 1600V | B20 |
| MDK55-18 | 55A | 1800V | B20 |
| MDK70-06 | 70A | 600V | B20 |
| MDK70-10 | 70A | 1000V | B20 |
| MDK70-12 | 70A | 1200V | B20 |
| MDK70-16 | 70A | 1600V | B20 |
| MDK70-18 | 70A | 1800V | B20 |
| MDK90-06 | 90A | 600V | B20 |
| MDK90-10 | 90A | 1000V | B20 |
| MDK90-12 | 90A | 1200V | B20 |
| MDK90-16 | 90A | 1600V | B20 |
| MDK90-18 | 90A | 1800V | B20 |
| MDK110-06 | 110A | 600V | B20 |
| MDK110-10 | 110A | 1000V | B20 |
| MDK110-12 | 110A | 1200V | B20 |
| MDK110-16 | 110A | 1600V | B20 |
| MDK110-18 | 110A | 1800V | B20 |
| MDA26-06 | 26A | 600V | B20 |
| MDA26-10 | 26A | 1000V | B20 |
| MDA26-12 | 26A | 1200V | B20 |
| MDA26-16 | 26A | 1600V | B20 |
| MDA26-18 | 26A | 1800V | B20 |
| MDA40-06 | 40A | 600V | B20 |
| MDA40-10 | 40A | 1000V | B20 |
| MDA40-12 | 40A | 1200V | B20 |
| MDA40-16 | 40A | 1600V | B20 |
| MDA40-18 | 40A | 1800V | B20 |
| MDA55-06 | 55A | 600V | B20 |
| MDA55-10 | 55A | 1000V | B20 |
| MDA55-12 | 55A | 1200V | B20 |
| MDA55-16 | 55A | 1600V | B20 |
| MDA55-18 | 55A | 1800V | B20 |
| MDA70-06 | 70A | 600V | B20 |
| MDA70-10 | 70A | 1000V | B20 |
| MDA70-12 | 70A | 1200V | B20 |
| MDA70-16 | 70A | 1600V | B20 |
| MDA70-18 | 70A | 1800V | B20 |
| MDA90-06 | 90A | 600V | B20 |
| MDA90-10 | 90A | 1000V | B20 |
| MDA90-12 | 90A | 1200V | B20 |
| MDA90-16 | 90A | 1600V | B20 |
| MDA90-18 | 90A | 1800V | B20 |
| MDA110-06 | 110A | 600V | B20 |
| MDA110-10 | 110A | 1000V | B20 |
| MDA110-12 | 110A | 1200V | B20 |
| MDA110-16 | 110A | 1600V | B20 |
| MDA110-18 | 110A | 1800V | B20 |
| MDX26-06 | 26A | 600V | B20 |
| MDX26-10 | 26A | 1000V | B20 |
| MDX26-12 | 26A | 1200V | B20 |
| MDX26-16 | 26A | 1600V | B20 |
| MDX26-18 | 26A | 1800V | B20 |
| MDX40-06 | 40A | 600V | B20 |
| MDX40-10 | 40A | 1000V | B20 |
| MDX40-12 | 40A | 1200V | B20 |
| MDX40-16 | 40A | 1600V | B20 |
| MDX40-18 | 40A | 1800V | B20 |
| MDX55-06 | 55A | 600V | B20 |
| MDX55-10 | 55A | 1000V | B20 |
| MDX55-12 | 55A | 1200V | B20 |
| MDX55-16 | 55A | 1600V | B20 |
| MDX55-18 | 55A | 1800V | B20 |
| MDX70-06 | 70A | 600V | B20 |
| MDX70-10 | 70A | 1000V | B20 |
| MDX70-12 | 70A | 1200V | B20 |
| MDX70-16 | 70A | 1600V | B20 |
| MDX70-18 | 70A | 1800V | B20 |
| MDX90-06 | 90A | 600V | B20 |
| MDX90-10 | 90A | 1000V | B20 |
| MDX90-12 | 90A | 1200V | B20 |
| MDX90-16 | 90A | 1600V | B20 |
| MDX90-18 | 90A | 1800V | B20 |
| MDX110-06 | 110A | 600V | B20 |
| MDX110-10 | 110A | 1000V | B20 |
| MDX110-12 | 110A | 1200V | B20 |
| MDX110-16 | 110A | 1600V | B20 |
| MDX110-18 | 110A | 1800V | B20 |
