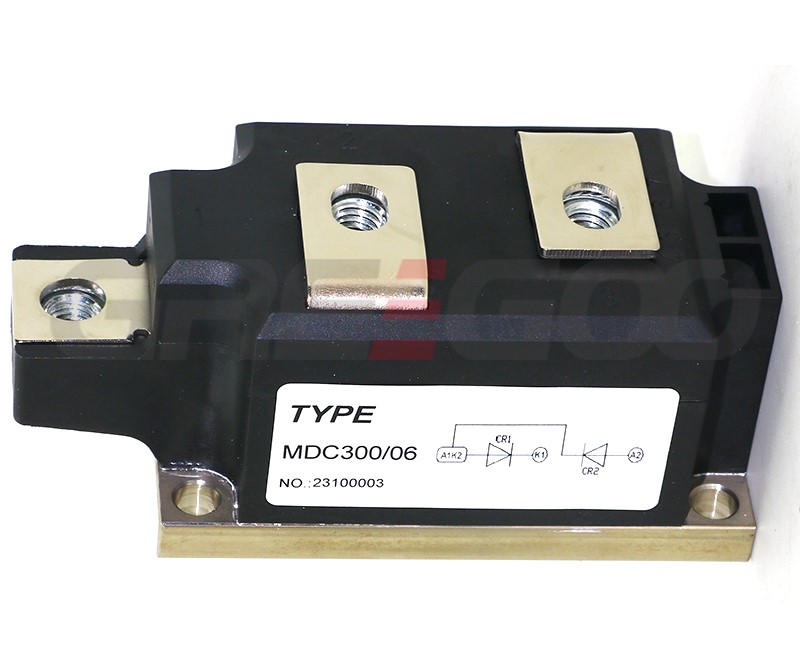

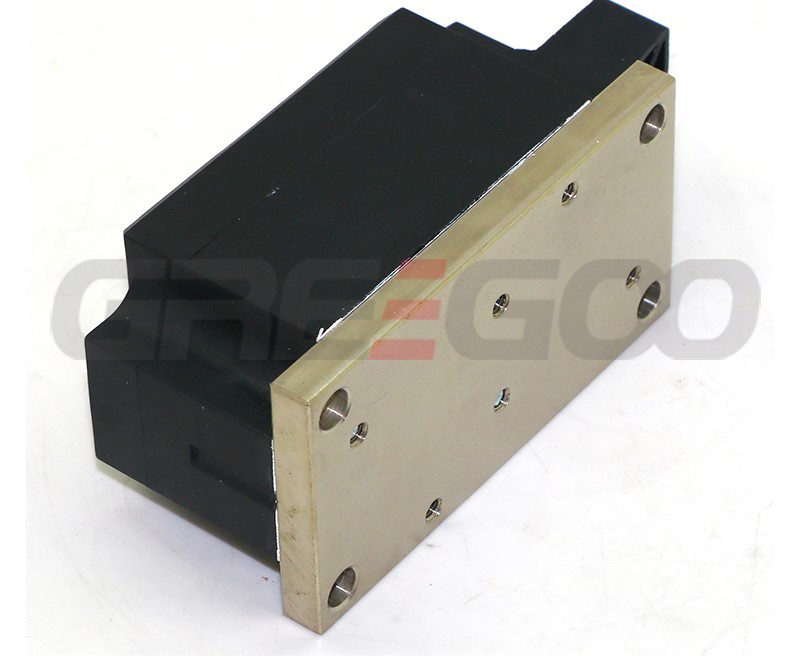

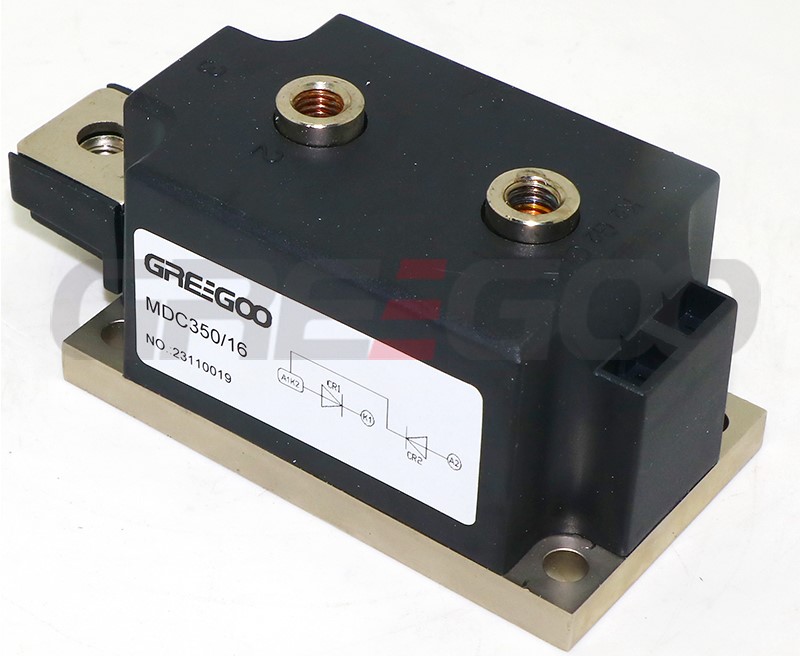

Dual diode module 300A 350A
| Symbol | Meaning |
| M | Module |
| D | Rectifier diode |
| C | C - in series, A - common anode, K - common cathode, X - anti-parallel |
| 26 | Average current |
| 12 | Voltage code: code x 100 = VRRM |
| Eg. | MDC26-12, Dual diode module, in series connection, 26A, 1600V. |
| Model No. | IF(AV) | VRRM | Package |

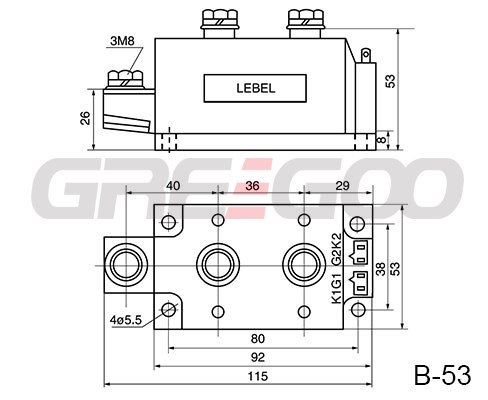

| MDC300-06 | 300A | 600V | B53 |
| MDC300-10 | 300A | 1000V | B53 |
| MDC300-12 | 300A | 1200V | B53 |
| MDC300-16 | 300A | 1600V | B53 |
| MDC300-18 | 300A | 1800V | B53 |
| MDC350-06 | 350A | 600V | B53 |
| MDC350-10 | 350A | 1000V | B53 |
| MDC350-12 | 350A | 1200V | B53 |
| MDC350-16 | 350A | 1600V | B53 |
| MDC350-18 | 350A | 1800V | B53 |
| MDK300-06 | 300A | 600V | B53 |
| MDK300-10 | 300A | 1000V | B53 |
| MDK300-12 | 300A | 1200V | B53 |
| MDK300-16 | 300A | 1600V | B53 |
| MDK300-18 | 300A | 1800V | B53 |
| MDK350-06 | 350A | 600V | B53 |
| MDK350-10 | 350A | 1000V | B53 |
| MDK350-12 | 350A | 1200V | B53 |
| MDK350-16 | 350A | 1600V | B53 |
| MDK350-18 | 350A | 1800V | B53 |
| MDA300-06 | 300A | 600V | B53 |
| MDA300-10 | 300A | 1000V | B53 |
| MDA300-12 | 300A | 1200V | B53 |
| MDA300-16 | 300A | 1600V | B53 |
| MDA300-18 | 300A | 1800V | B53 |
| MDA350-06 | 350A | 600V | B53 |
| MDA350-10 | 350A | 1000V | B53 |
| MDA350-12 | 350A | 1200V | B53 |
| MDA350-16 | 350A | 1600V | B53 |
| MDA350-18 | 350A | 1800V | B53 |
| MDX300-06 | 300A | 600V | B53 |
| MDX300-10 | 300A | 1000V | B53 |
| MDX300-12 | 300A | 1200V | B53 |
| MDX300-16 | 300A | 1600V | B53 |
| MDX300-18 | 300A | 1800V | B53 |
| MDX350-06 | 350A | 600V | B53 |
| MDX350-10 | 350A | 1000V | B53 |
| MDX350-12 | 350A | 1200V | B53 |
| MDX350-16 | 350A | 1600V | B53 |
| MDX350-18 | 350A | 1800V | B53 |
