Controllable Bridge Rectifiers SKCH28
Home Products Diode Bridge ModuleRecommend Bridge RectifiersControllable Bridge Rectifiers SKCH28
Product Details

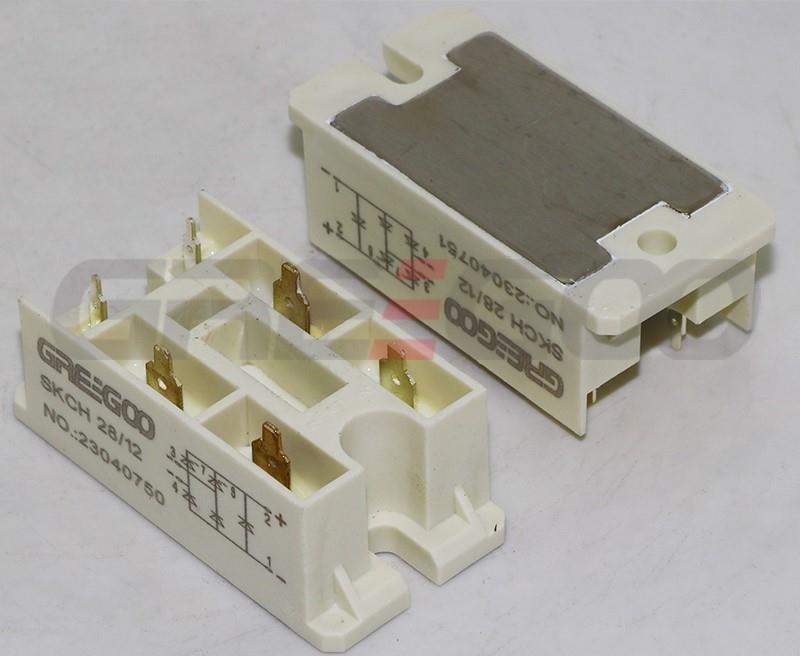

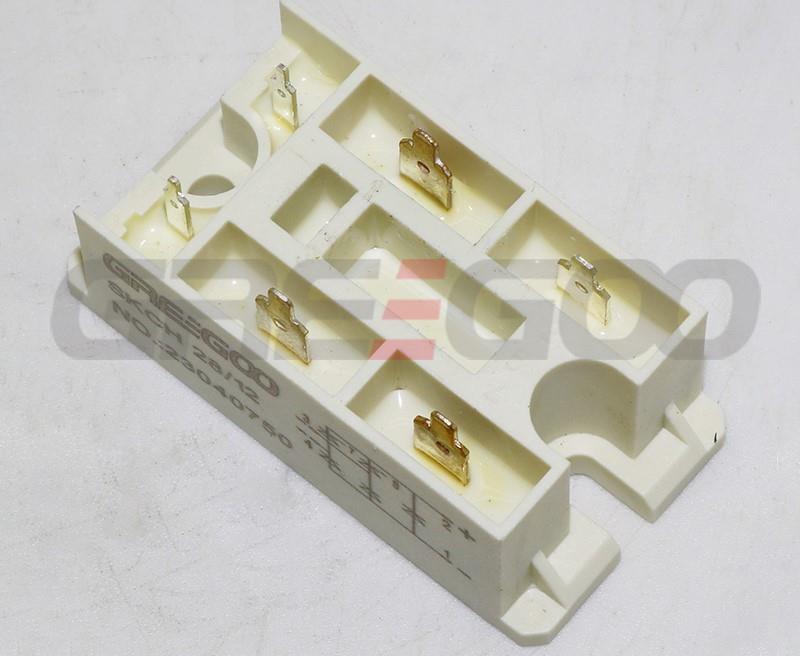

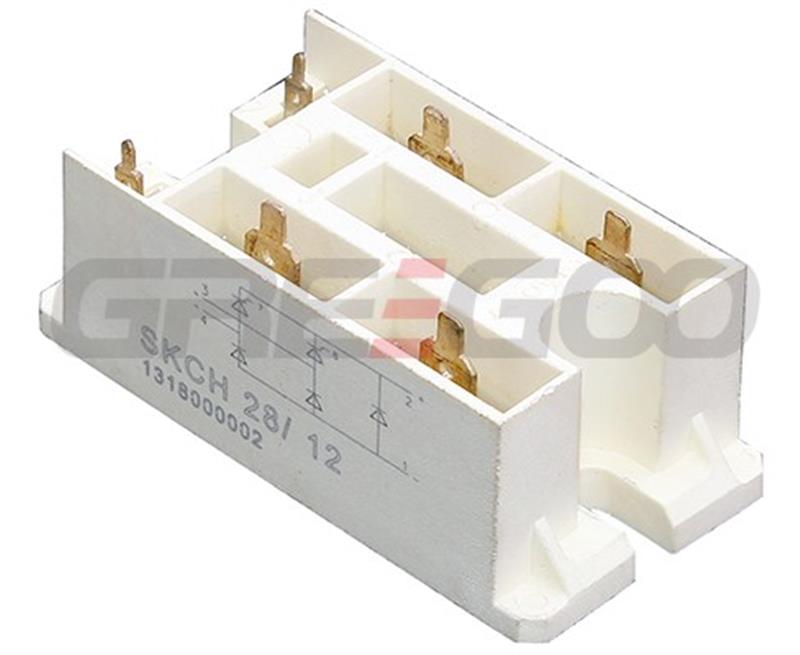

Controllable Bridge Rectifiers SKCH28
Half controllable bridge rectifiers SKCH28
Feature
Sturdy isolated metal baseplate
Fast-on terminals with solder tips
Suitable for wave soldering
High surge current rating
Typical applications
Controllable single phase rectifier
DC power supplies
DC motor controllers
DC motor field controolers

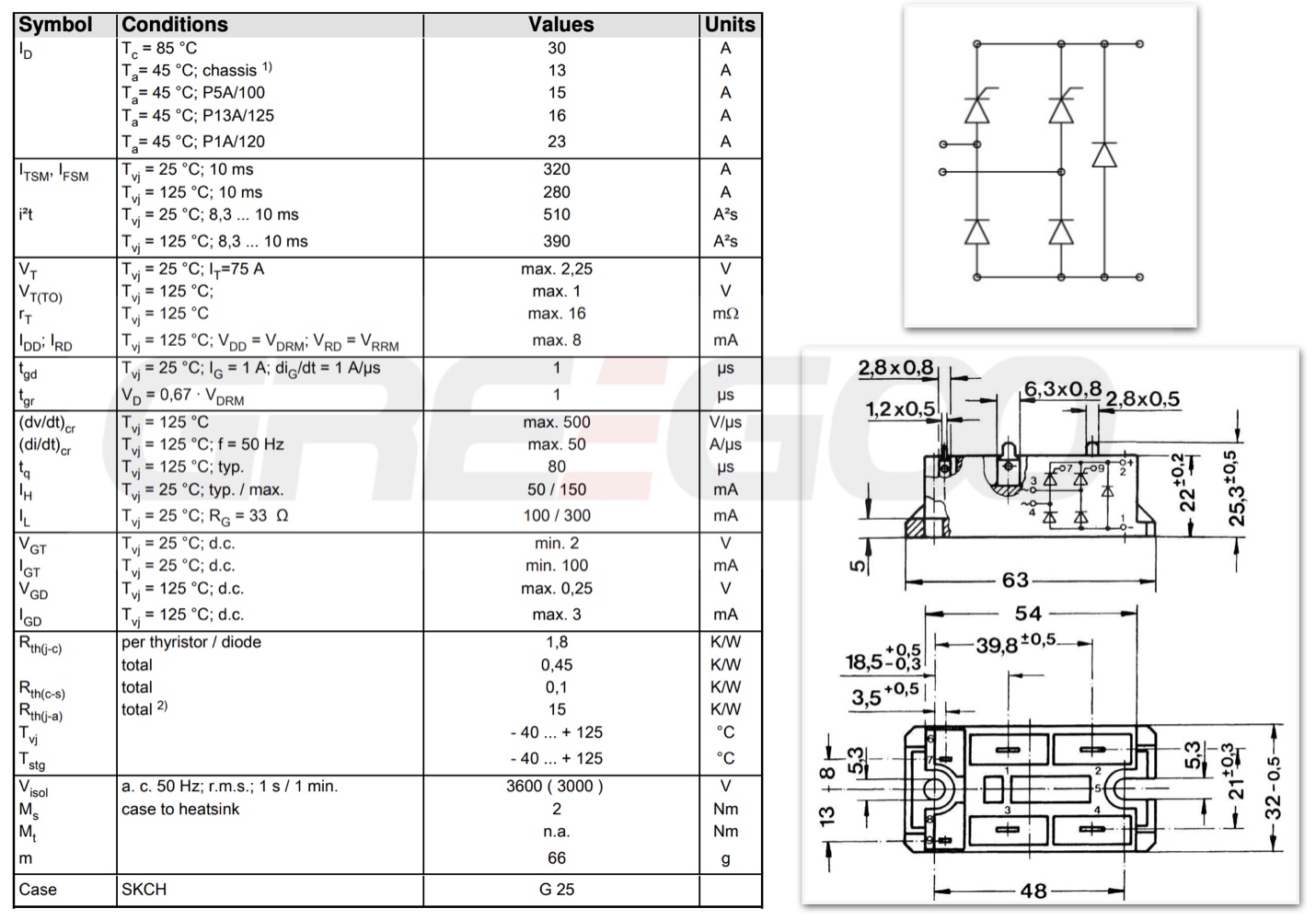

VRSM | VRRD,VDRM | ID=28A (full conduction) |
V | V | Tc=85 ℃ |
400 | 400 | SKCH 28/04 |
600 | 600 | SKCH 28/06 |
800 | 800 | SKCH 28/08 |
1200 | 1200 | SKCH 28/12 |
1400 | 1400 | SKCH 28/14 |
