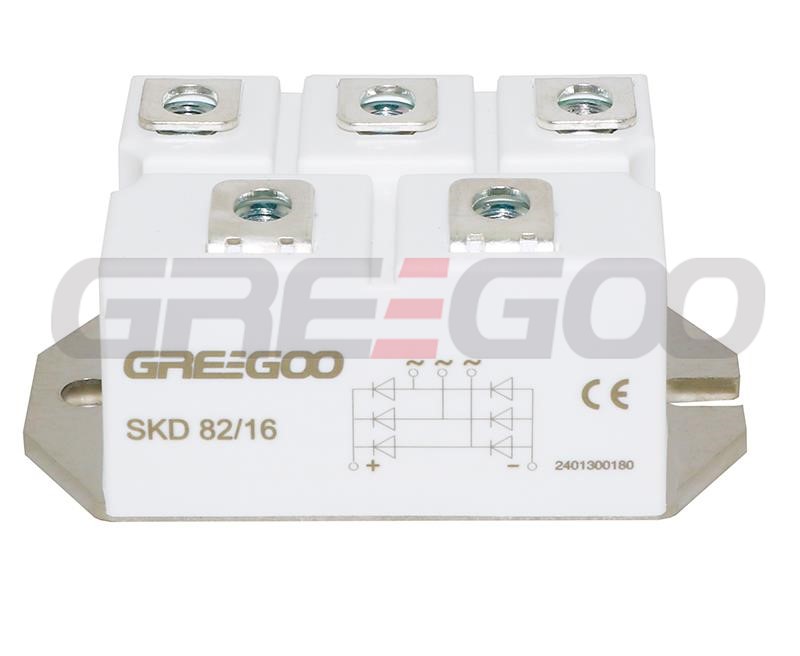

3 phase bridge rectifier modules SKD62 SKD82 SKD100
3 phase bridge rectifier modules
Type | Equal to | VRRM VDRM | ID @ TC | TC | ITSM IFSM@ Tjmax | VT(TO) @ Tjmax | rT @ Tjmax | Rth(j-c)cont. per chip | Tj | Case |
V | A | ℃ | A | V | mΩ | K/W | ℃ | |||

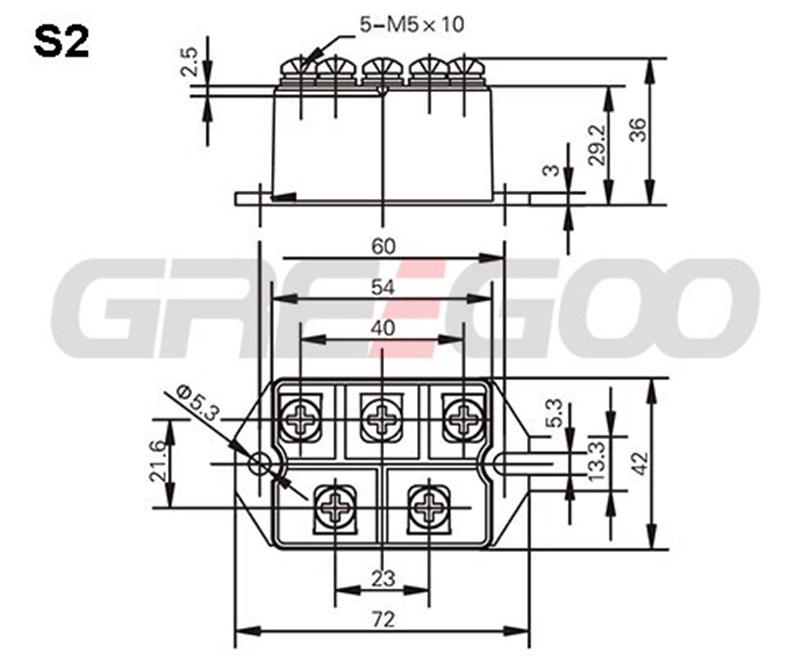

MDS60S | SKD 60 | 400-1600 | 60 | 102 | 850 | 0.85 | 5 | 1 | -40 ... 125 | S2 |

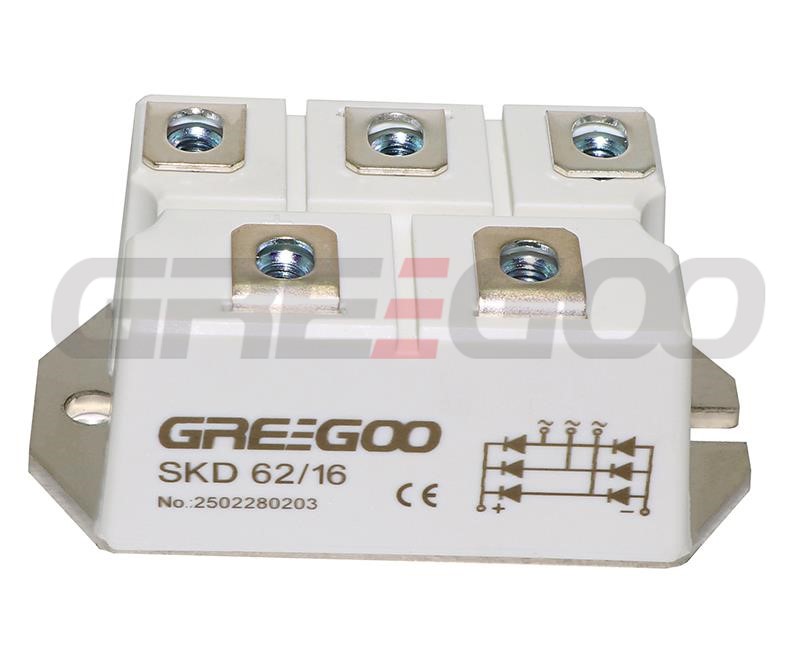

MDS62S | SKD 62 | 400-1800 | 60 | 110 | 425 | 0.85 | 8 | 1.5 | -40 ... 150 | S2 |

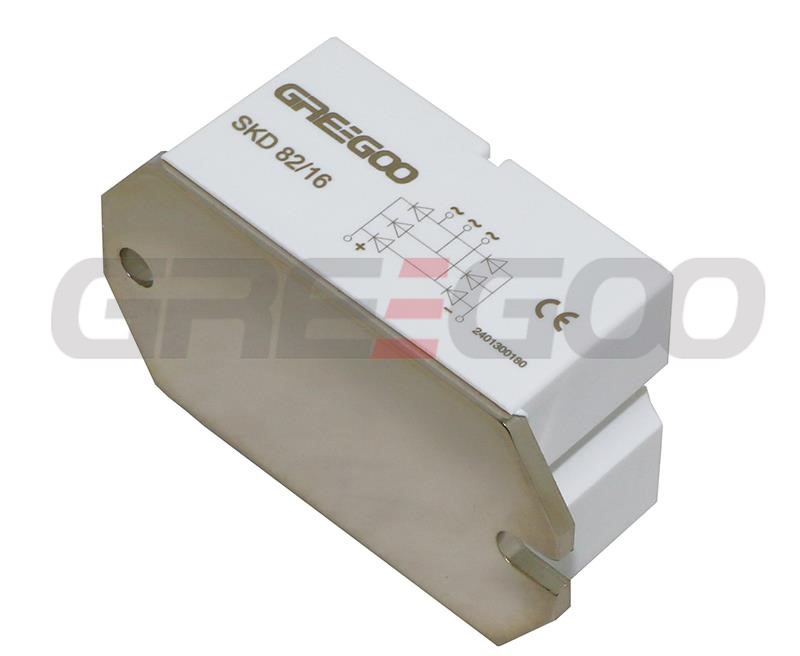

MDS82S | SKD 82 | 400-1800 | 80 | 110 | 640 | 0.85 | 5 | 1.1 | -40 ... 150 | S2 |

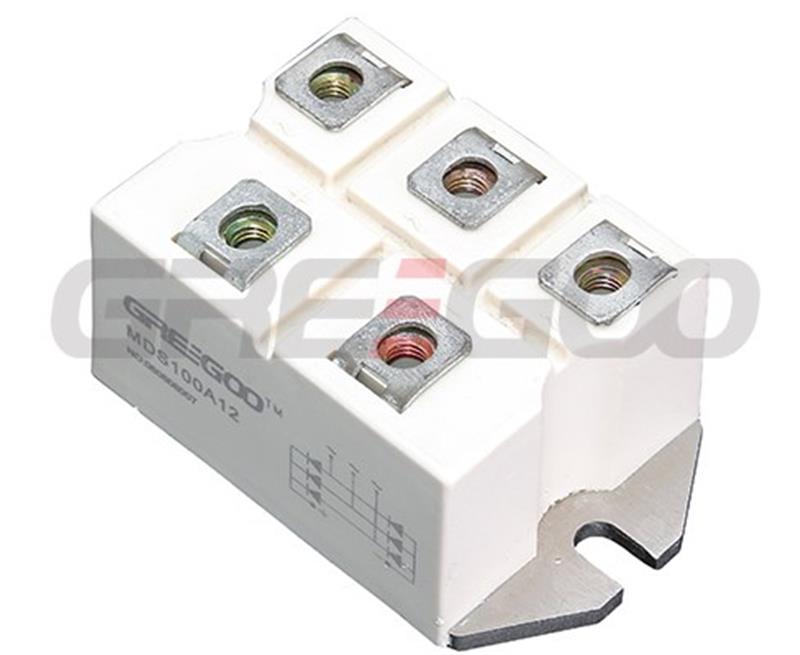

MDS100S | SKD 100 | 400-1600 | 100 | 93 | 1000 | 0.85 | 5 | 0.85 | -40 ... 125 | S2 |
