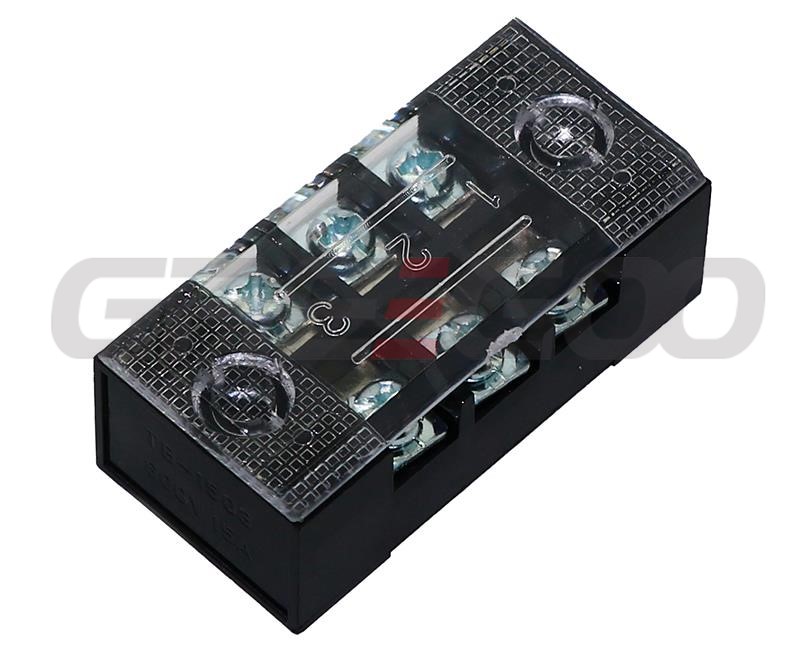

TB series Terminal Block

The TB series terminal block is an electrical connector commonly used for the connection and distribution of wires. This series offers multiple models and specifications to accommodate different wire ranges and current requirements. The feature of TB series terminal block are given as below:

Voltage and Current Ratings: The TB series terminal blocks typically have a voltage rating of 600V, with current ratings that can be 15A to 100A.
Structure and Design: These terminal blocks feature a board-type, screw-clamping, low-base, sealed, and integrated structure design to ensure connection stability and safety.
Applications: The TB series terminal blocks are widely used in various electrical equipment for power distribution and connection.

Specification

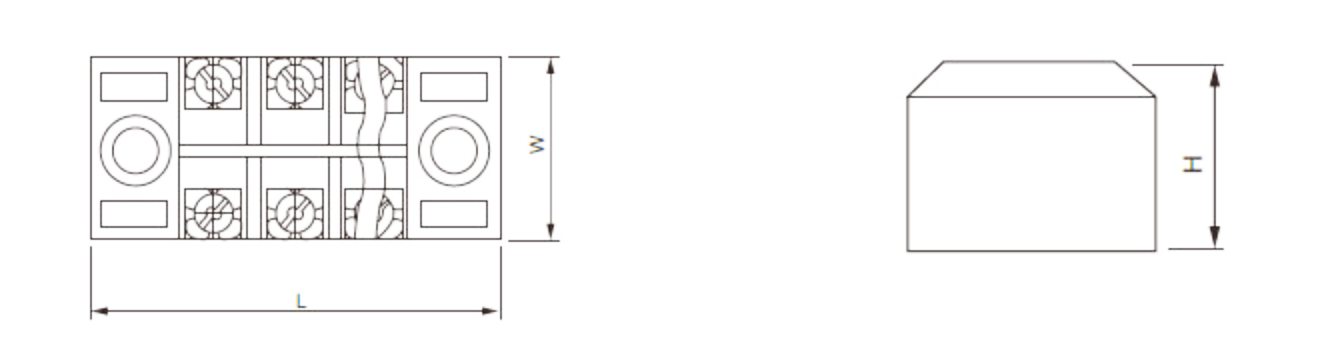

Item No .	Rating	Number of Poles	Wire Section (mm2)	Dimension(mm)
Item No .	Rating	Number of Poles	Wire Section (mm2)	L	W	H
TB-1503	15A 600V	3	0.5-1.5	46.5	22	17.5
TB-1504		4		55.5
TB-1505		5		63.5
TB-1506		6		73.5
TB-1510		10		103
TB-1512		12		128
TB-1520		20		194
TB-2503	25A 600V	3	0.5-2.5	55	30	19
TB-2504		4		67
TB-2505		5		79
TB-2506		6		91
TB-2510		10		140
TB-2512		12		163
TB-4503	45A 600V	3	0.5-4	70	38	23.5
TB-4504		4		85
TB-4505		5		100
TB-4506		6		120.5
TB-4510		10		202
TB-4512		12		222
TB-602	60A 660V	2	0.5-10	57.4	36.5	31
TB-603		3		75.2
TB-604		4		92.6
TB-606		6		128
TB-6012		12		234
TB-1003	100A 660V	3	0.5-25	87	43	37
TB-1004		4		109
TB-1006		6		153
TB-10012		12		285
