Product Details

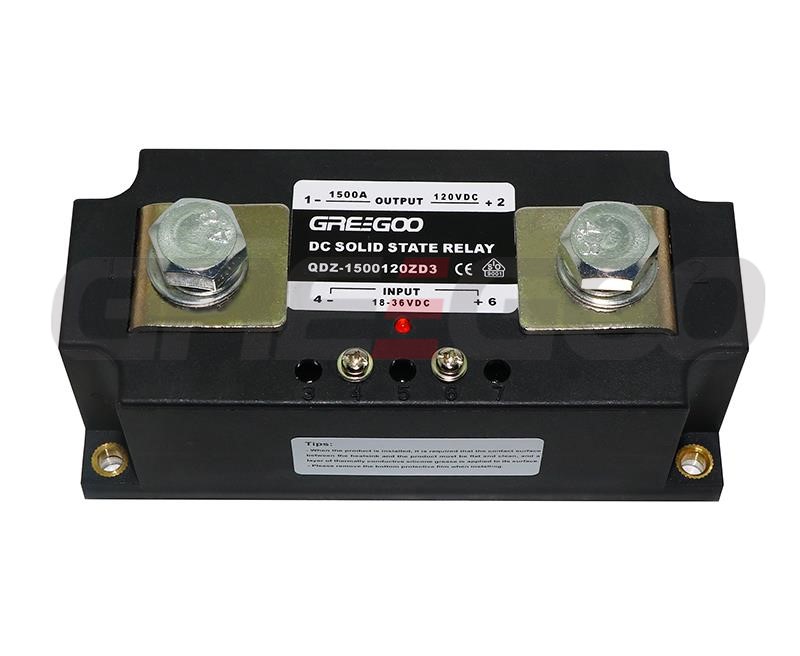

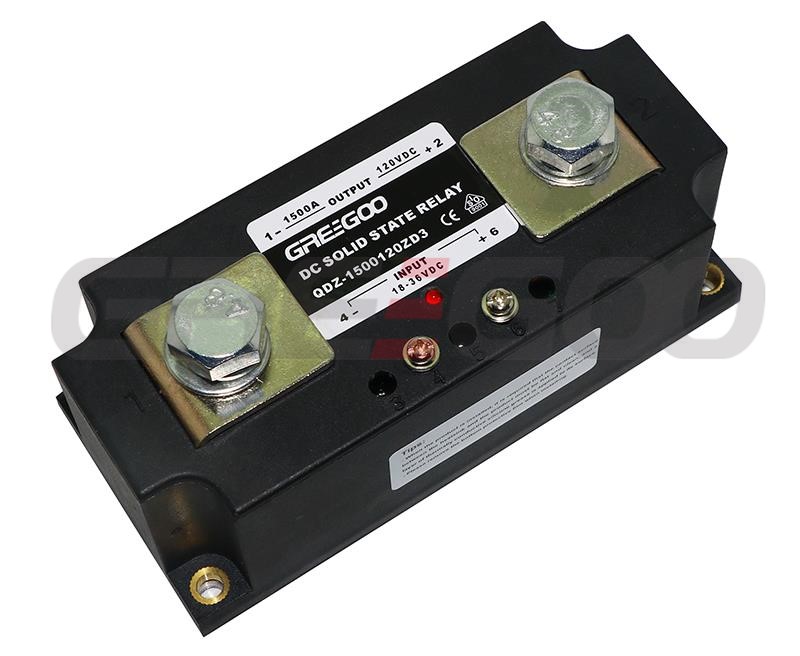

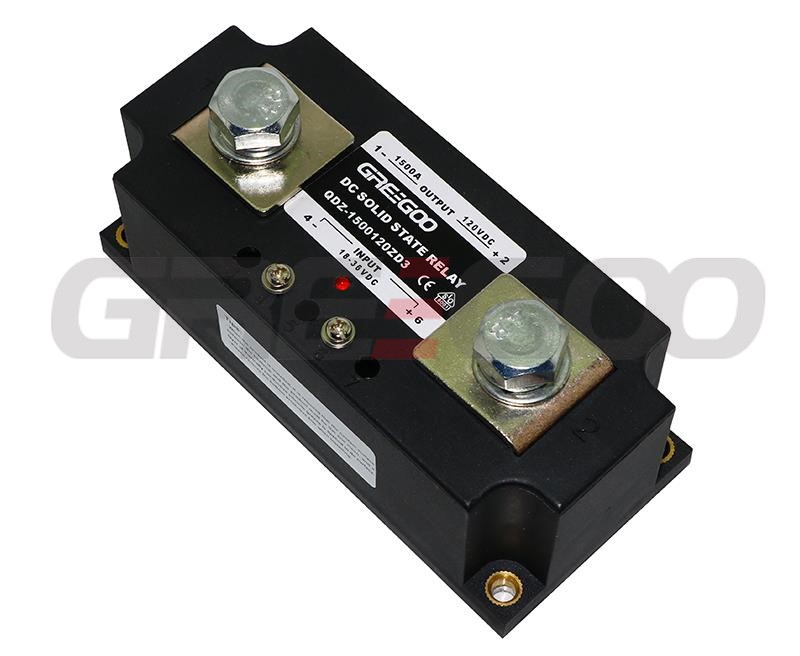

Automotive solid state relay

  • Opto-isolated between control signal and output circuit.
  • Control signal interfaces with PLC, TTL logic.
  • LED indicates working status.
  • Output switch is solid-state normally open, no contact. No sparks or arcing during switching.
  • L.Z series has built-in undervoltage, overvoltage, overcurrent, and short-circuit protection functions.
  • High-temperature resistant, flame-retardant, integrated packaging, corrosion-resistant, shock-resistant, stable and reliable switching.
  • The product is mainly used for medium and small power DC electrical appliances in new energy vehicles, such as PTC heaters, battery/capacitor charging and discharging, solenoid valves, motor switching, etc.

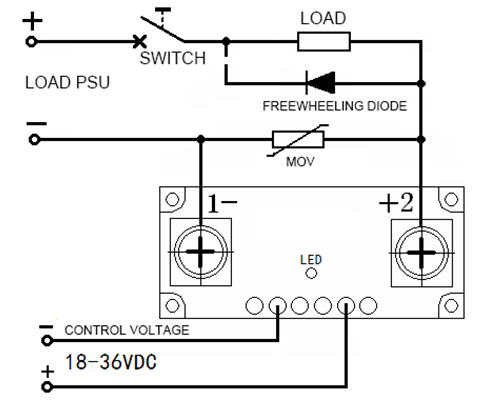

Standard type

Model QDZS
Control Voltage 12~15 VDC or 18~36 VDC
Control Current 30~80 mA or 25~70 mA
Undervoltage Protection <10VDC lock for 12-15V or

<16VDC lock for 18-36V

Working Indication LED indicator
Load Voltage 5-60V, 6-120V, 10-360V, 20-720V
Maximum Current 10, 30, 60, 80, 100, 120, 150, 180, 200, 300, 400, 500, 600, 800, 1000, 1200, 1500, 2000A
On-state Voltage Drop ≤0.5~4.2 VDC
Off-state Voltage 100V, 200V, 400V, 600V, 1200V
Surge Voltage Protection 80V, 180V, 360V, 480V, 1000V
Overcurrent Protection None, L: 50% output current, Z: 100% output current
Switching Time ≤0.2mS (10A-200A); ≤0.3mS (150A-300A); ≤0.5mS (400A-2000A)
Switching Characteristics MOS or IGBT transistor, solid-state no contact on/off
Isolation Voltage ≥1800~2500 V
Insulation Voltage ≥2000~2500 V
Operating Temperature -30~80°C
Heat Dissipation ≥20A with heat sink, ≥60A with fan cooling
Load Current Safety Factor 2.5-4 times for resistive load, 3-6 times for inductive load

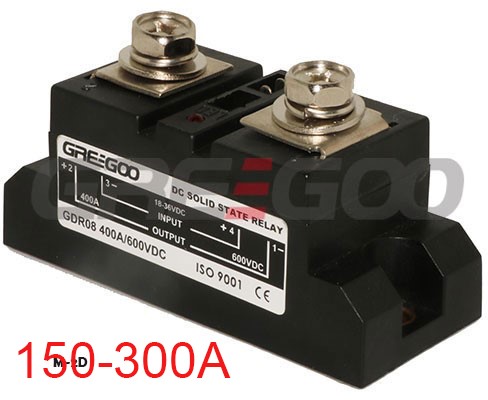

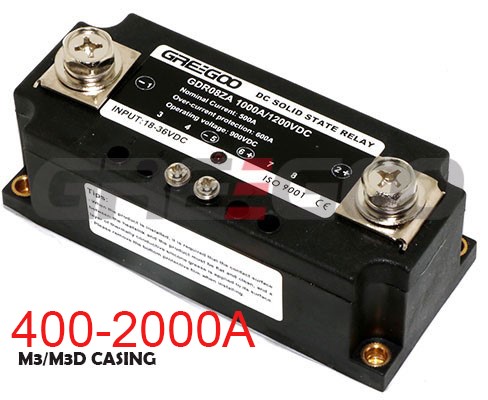

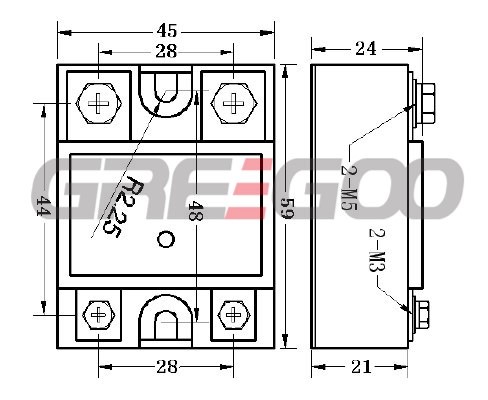

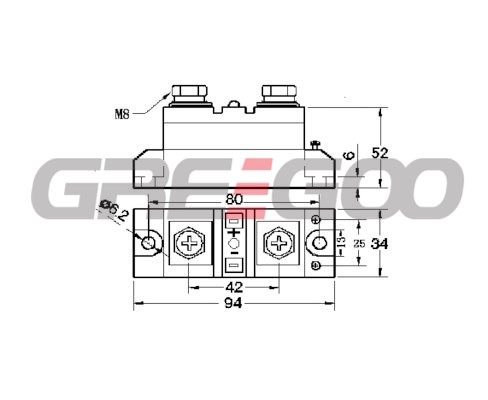

10A to 200A 150A to 400A 500A to 2000A

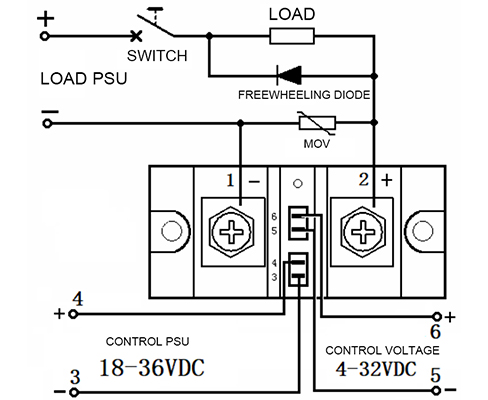

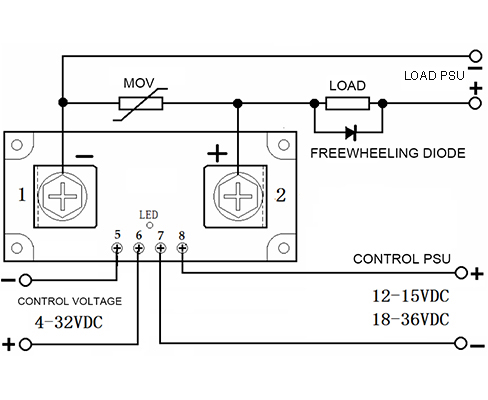

Fast switching time & wide control voltage type

Model QDZH
Control Power Supply 12~15 VDC/2W or 18~36 VDC/2W
Control Signal 4-32VDC @ 10-25mA
Undervoltage Protection <10VDC lock for 12-15V or

<16VDC lock for 18-36V

Working Indication LED indicator
Load Voltage 5-60V, 6-120V, 10-360V, 20-720V
Maximum Current 150, 180, 200, 300, 400, 500, 600, 800, 1000, 1200, 1500, 2000A
On-state Voltage Drop 1.0~4.2 VDC
Off-state Voltage 100V, 200V, 400V, 600V, 1200V
Surge Voltage Protection 80V, 180V, 360V, 480V, 1000V
Overcurrent Protection None, L: 50% output current, Z: 100% output current
Switching Time ≤0.15mS (150A-300A); ≤0.2mS (400A-2000A)
Switching Characteristics MOS or IGBT transistor, solid-state no contact on/off
Isolation Voltage ≥1800~2500 V
Insulation Voltage ≥2000~2500 V
Operating Temperature -30~80°C
Heat Dissipation ≥20A with heat sink, ≥60A with fan cooling
Load Current Safety Factor 2.5-4 times for resistive load, 3-6 times for inductive load



150A to 300A 400A to 2000A

Selection tips

The data provided in the parameter table is measured at room temperature (25°C). Actual working conditions should have some margin. For resistive loads: select current rating 2.5-4 times the load current, and voltage rating 2-2.5 times the load voltage supply. For inductive loads: select current rating 3-7 times the load current, and voltage rating 2.5-3 times the load voltage.


According to the relationship between load current and ambient temperature, increase the current capacity of the solid-state relay accordingly when the ambient temperature is high or the heat dissipation conditions are poor.


To prevent product failure due to load short-circuit during use, a fast-acting circuit breaker or fast-blow fuse corresponding to this product should be connected in series with the load circuit. Alternatively, the self-protected QDZ-L (overcurrent) or QDZ-Z (short-circuit) upgraded products can be selected.

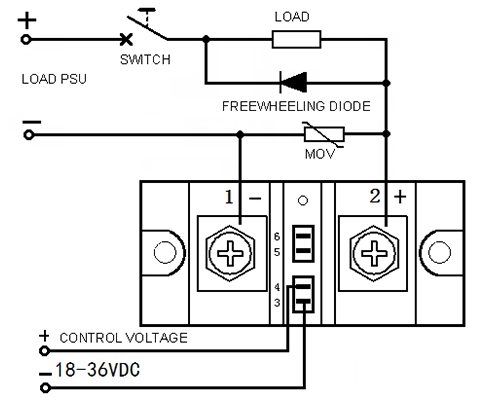

For inductive loads, a freewheeling diode must be connected in parallel across the load, and a metal oxide varistor (MOV) rated at 1-1.5 times the supply voltage must be connected in parallel at the output to prevent high voltage spikes from damaging the solid-state switch during switching.


During installation, the heat sink contact surface with the product must be flat and clean, and a layer of thermal silicone grease should be applied. Finally, tighten the screws symmetrically with flat washers and spring washers to secure the assembly.
