Product Details

Anti-parallel Thyristor Modules

Features

  • Compact Design
  • One screw mounting
  • Glass passived thyristor chips
  • Up to 1600V reverse voltage
  • Heat transfer and isolation through direct
  • copper bonded aluminium oxide ceramic(DBC)


Typical Applications



  • Soft starters
  • Light control (studios, theaters..)
  • Temperature control


Symbol

RMS=29A (full conduction)(Ts=85°C)







Units

SK25KQ08

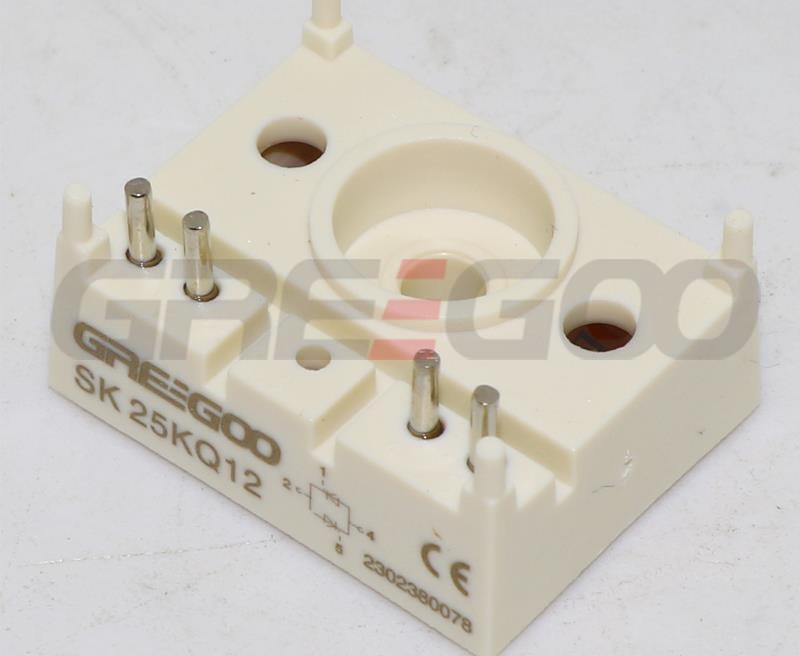

SK25KQ12

SK25KQ16

VRRM,VDRM

800

1200

1600

V

 VRSM

900

1300

1700

V



Symbol

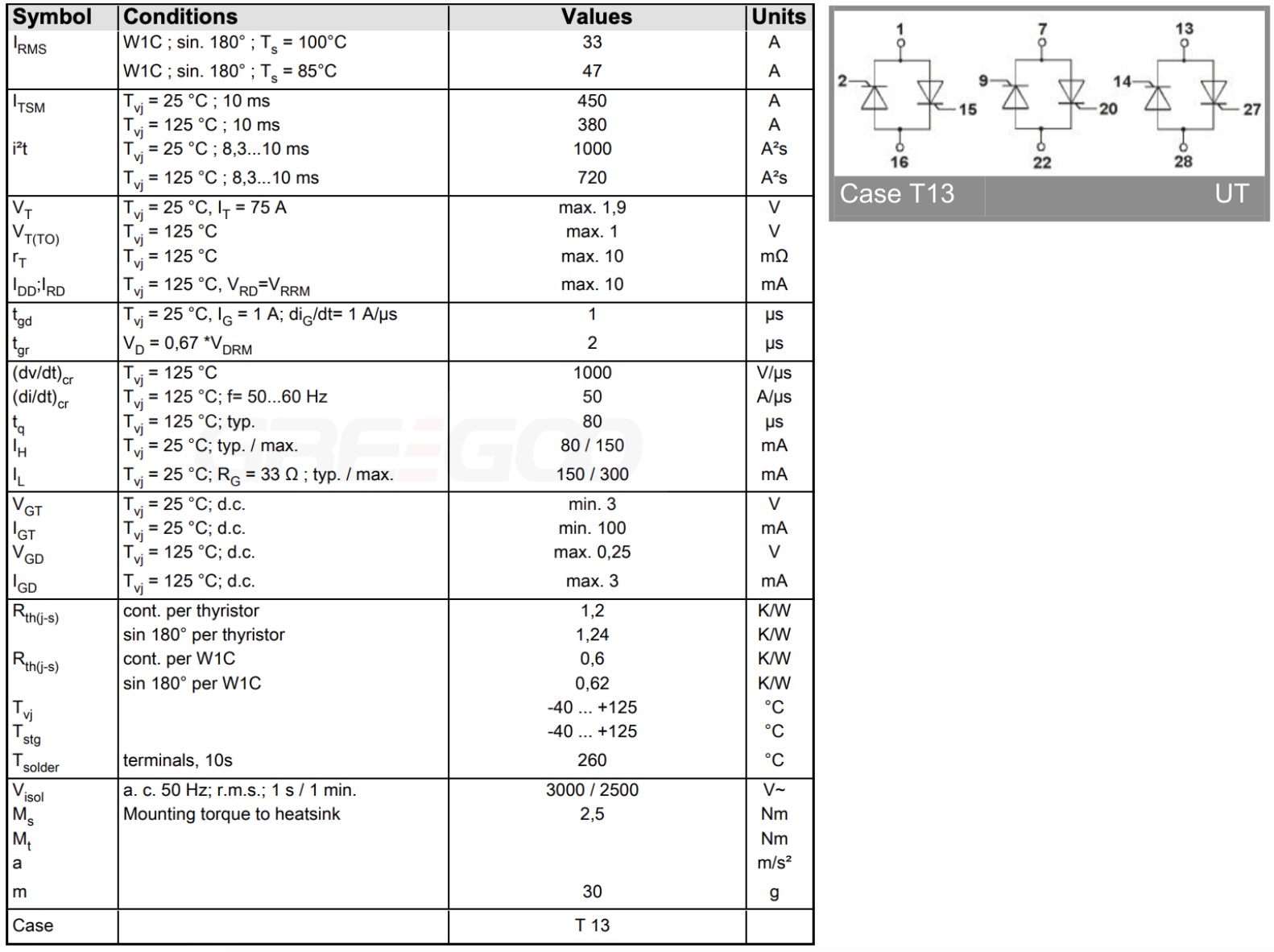

RMS=47A(full conduction)(Ts=85C)







Units

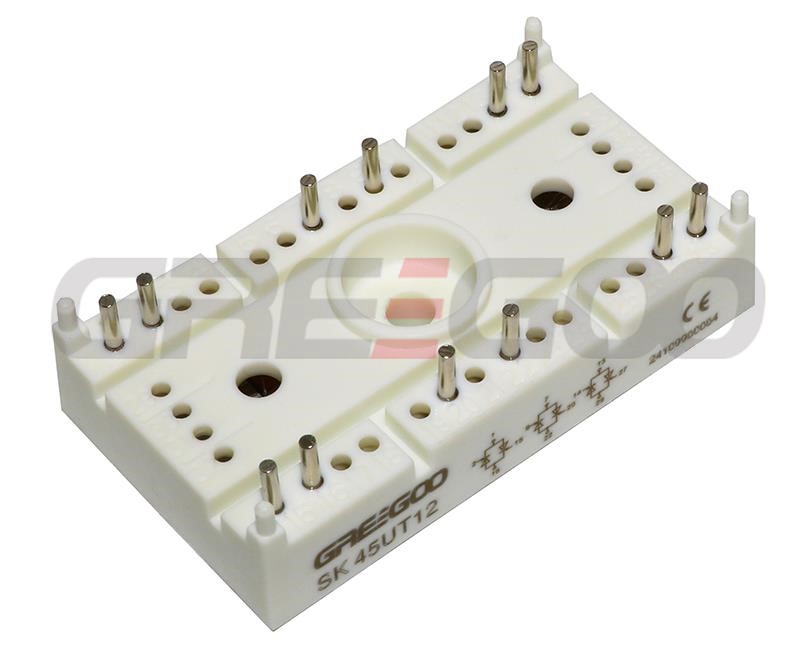

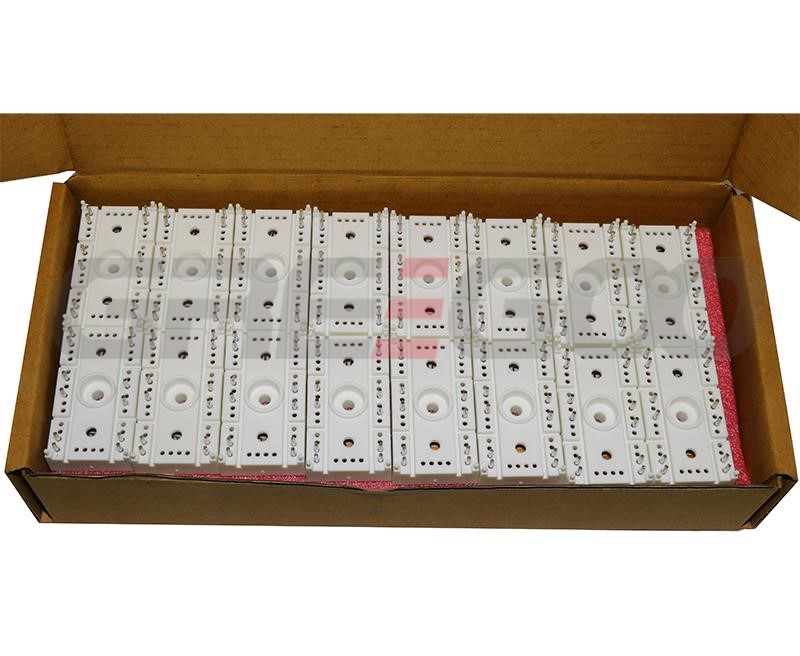

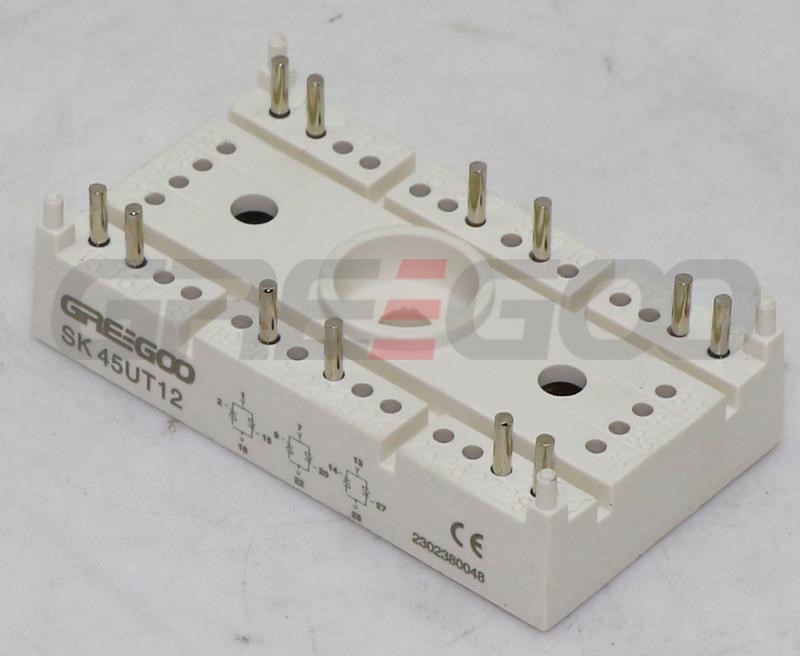

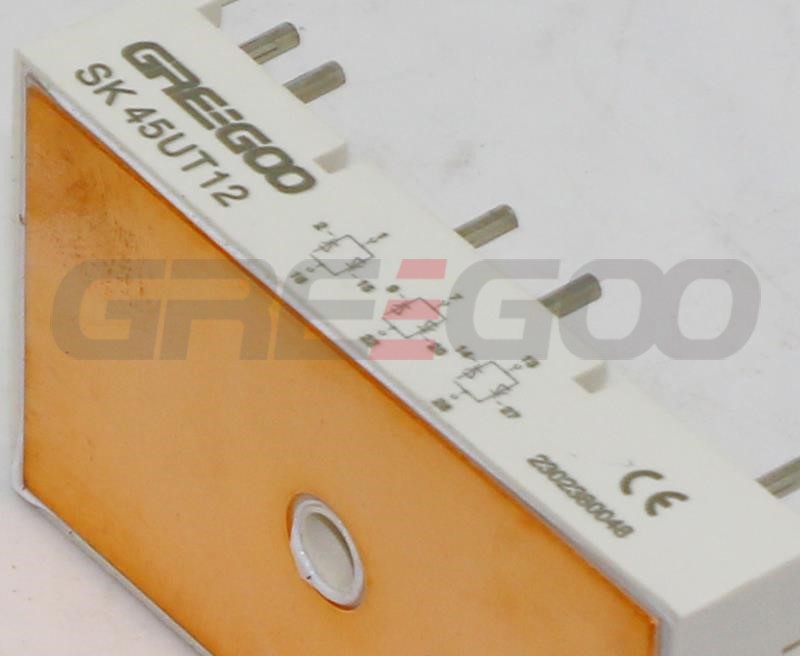

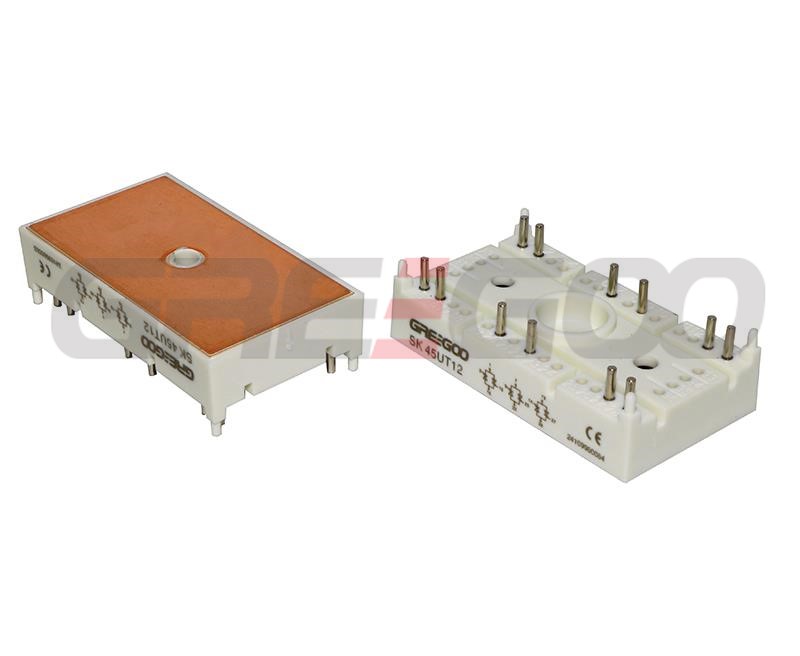

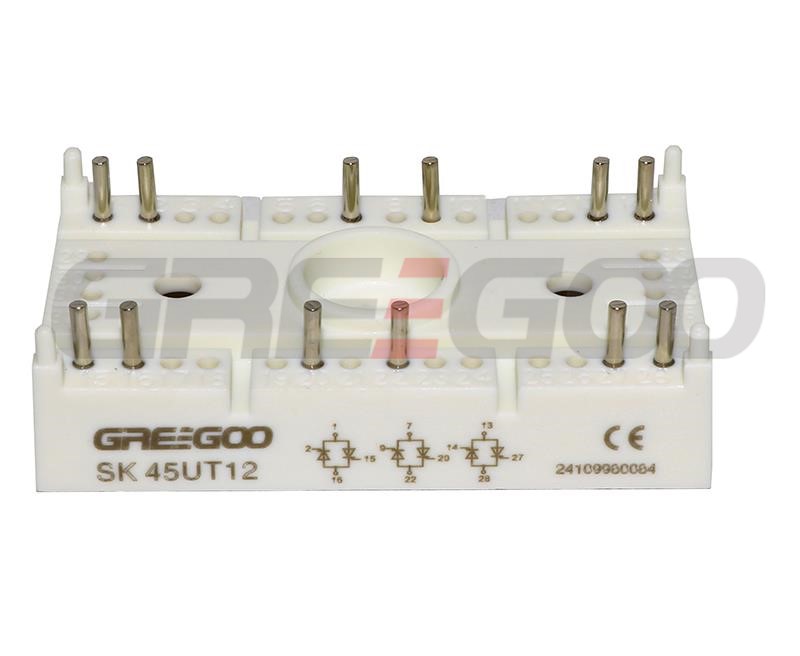

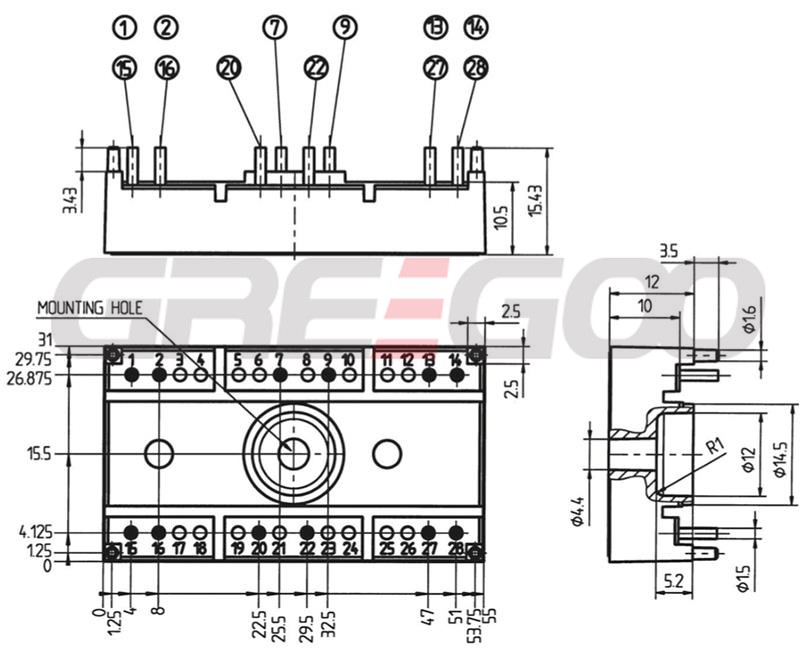

SK45UT08

 SK45UT12

SK45UT16

VRRM,VDRM

800

1200

1600

 V

VRSM

900

1300

1700

V


Symbol

RMS=134A(full conduction)(Ts=85C)







Units

SK120KQ08

 SK120KQ12

SK120KQ16

VRRM,VDRM

800

1200

1600

 V

VRSM

900

1300

1700

V


Recommended SKKT, SKKD, SKKH series Thyristor Diode Modules
