Part numbers list

Thyristor-Thyristor Module Infineon Replacement

Type	IT(AV)M (TC,，℃)	VRRM VDRM	ITSM	I²t	VT0	rT	Tvj max	Rth((j-c)	W	Package, Dimensions L×B×H
Type	A	V	A	kA²·s	V	mΩ	℃	K/W	kg	mm
Thyristor modules - baseplate 20x58 mm - solder bond
TT60N16SOF	55 (85)	1600	1200	7.20	1.00	4.80	130	0.49	0.075	TS20 93x20x30
TT60N16SOFB01	55 (85)	1600	1200	7.20	1.00	4.80	130	0.49	0.075	TS20 93x20x30
TT120N16SOF	120 (85)	1600	2250	18.05	0.90	3.35	130	0.20	0.075	TS20 93x20x30
TT120N16SOFB01	120 (85)	1600	1900	18.05	0.90	3.35	130	0.20	0.075	TS20 93x20x30
Thyristor modules - baseplate 20x92 mm - pressure contact
TT61N14KOF	60 (85)	1400	1400	9.80	0.80	3.40	125	0.52	0.16	TP20 92x20x30
TT61N16KOF	60 (85)	1600	1400	9.80	0.80	3.40	125	0.52	0.16	TP20 92x20x30
TT92N12KOF	92 (85)	1200	1800	16.20	0.85	2.43	140	0.37	0.16	TP20 92x20x30
TT92N16KOF	92 (85)	1600	1800	16.20	0.85	2.43	140	0.37	0.16	TP20 92x20x30
TT104N14KOF	102 (85)	1400	1800	16.20	0.85	2.43	140	0.37	0.16	TP20 92x20x30
Thyristor modules - baseplate 34x94 mm - solder bond
TT140N16SOF	140 (85)	1600	4000	80.00	1.00	1.60	125	0.19	0.165	TS34 94x34x30
TT160N16SOF	160 (85)	1600	4500	101.30	1.10	0.99	125	0.165	0.165	TS34-2 94x34x30
TT175N16SOF	175 (85)	1600	5400	125.00	0.83	1.30	125	0.164	0.165	TS34 94x34x30
TT190N16SOF	190 (85)	1600	4500	101.30	0.85	0.90	125	0.165	0.165	TS34-2 94x34x30
TT190N18SOF	190 (85)	1800	4500	101.30	0.85	0.90	125	0.165	0.165	TS34-2 94x34x30
TT240N16SOF	240 (85)	1600	4400	96.80	0.85	0.90	140	0.165	0.165	TS34-2 94x34x30
TT240N18SOF	240 (85)	1800	4400	96.80	0.85	0.90	140	0.165	0.165	TS34-2 94x34x30
Thyristor modules - baseplate 34x94 mm - pressure contact
TT122N22KOF	122 (85)	2200	2950	43.50	1.00	2.15	125	0.20	0.31	TP34 94x34x30
TT142N16KOF	142 (85)	1600	4100	84.00	0.90	1.10	125	0.22	0.31	TP34 94x34x30
TT162N14KOF	162 (85)	1400	4400	97.00	0.85	0.95	125	0.20	0.31	TP34 94x34x30
TT162N16KOF	162 (85)	1600	4400	97.00	0.85	0.95	125	0.20	0.31	TP34 94x34x30
TT180N12KOF	180 (85)	1200	4100	84.00	0.85	0.90	130	0.20	0.31	TP34 94x34x30
TT180N16KOF	180 (85)	1600	4100	84.00	0.85	0.90	130	0.20	0.31	TP34 94x34x30
Thyristor modules - baseplate 50x92 mm - solder bond
TT280N16SOF	280 (85)	1600	7800	304.2	0.77	0.82	130	0.11	0.37	TS50 115x50x53
TT280N18SOF	280 (85)	1800	7800	304.2	0.77	0.82	130	0.11	0.37	TS50 115x50x53
TT320N16SOF	320 (85)	1600	8200	335.0	0.77	0.58	130	0.11	0.37	TS50 115x50x53
TT320N16SOF TIM	320 (85)	1600	8200	335.0	0.77	0.58	130	0.11	0.37	TS50 115x50x53
TT320N18SOF	320 (85)	1800	8200	335.0	0.77	0.58	130	0.11	0.37	TS50 115x50x53
TT390N16SOF	380 (85)	1600	8100	328.0	0.77	0.58	140	0.11	0.37	TS50 115x50x53
TT390N18SOF	380 (85)	1800	8100	328.0	0.77	0.58	140	0.11	0.37	TS50 115x50x53
Thyristor modules - baseplate 50x92 mm - pressure contact
TT170N14KOF	170 (85)	1400	4600	106.0	0.95	1.00	125	0.17	0.8	TP50A 115x50x52
TT170N16KOF	170 (85)	1600	4600	106.0	0.95	1.00	125	0.17	0.8	TP50A 115x50x52
TT170N18KOF	170 (85)	1800	4600	106.0	0.95	1.00	125	0.17	0.8	TP50A 115x50x52
TT210N18KOF	210 (85)	1800	5800	168.0	1.00	0.85	125	0.13	0.8	TP50A 115x50x52
TT215N18KOF	215 (85)	1800	6300	198.0	0.95	0.92	125	0.13	0.8	TP50A 115x50x52
TT215N20KOF	215 (85)	2000	6300	198.0	0.95	0.92	125	0.13	0.8	TP50A 115x50x52
TT215N22KOF	215 (85)	2200	6300	198.0	0.95	0.92	125	0.13	0.8	TP50A 115x50x52
TT250N14KOF	250 (85)	1400	7000	245.0	0.80	0.70	125	0.13	0.8	TP50A 115x50x52
TT250N16KOF	250 (85)	1600	7000	245.0	0.80	0.70	125	0.13	0.8	TP50A 115x50x52
TT250N16KOF TIM	250 (85)	1600	7000	245.0	0.80	0.70	125	0.13	0.8	TP50A 115x50x52
TT250N18KOF	250 (85)	1800	7000	245.0	0.80	0.70	125	0.13	0.8	TP50A 115x50x52
TT251N14KOF	250 (85)	1400	8000	320.0	0.80	0.70	125	0.13	0.8	TP50A 115x50x52
TT251N16KOF	250 (85)	1600	8000	320.0	0.80	0.70	125	0.13	0.8	TP50A 115x50x52
TT251N18KOF	250 (85)	1800	8000	320.0	0.80	0.70	125	0.13	0.8	TP50A 115x50x52
TT260N22KOF	260 (85)	2200	8000	320.0	0.85	0.64	125	0.12	0.8	TP50A 115x50x52
TT270N16KOF	270 (92)	1600	9000	400.0	0.80	0.58	125	0.12	0.8	TP50A 115x50x52
TT285N16KOF	285 (92)	1600	10000	781.0	0.80	0.50	130	0.112	0.8	TP50A 115x50x52
TT330N12KOF	330 (85)	1200	10000	500.0	0.80	0.50	130	0.112	0.8	TP50A 115x50x52
TT330N14KOF	330 (85)	1400	10000	500.0	0.80	0.50	130	0.112	0.8	TP50A 115x50x52
TT330N16KOF	330 (85)	1600	10000	500.0	0.80	0.50	130	0.112	0.8	TP50A 115x50x52
TT330N16KOF TIM	330 (85)	1600	10000	500.0	0.80	0.50	130	0.112	0.8	TP50A 115x50x52
Thyristor modules - baseplate 60x124 mm - pressure contact
TT240N36KOF	240 (85)	3600	5500	151	1.17	1.70	125	0.078	1.5	TP60 150x60x52
TT240N38KOF	240 (85)	3800	5500	151	1.17	1.70	125	0.078	1.5	TP60 150x60x52
TT400N24KOF	400 (85)	2400	11000	605	1.00	0.50	125	0.065	1.5	TP60 150x60x52
TT400N26KOF	400 (85)	2600	11000	605	1.00	0.50	125	0.065	1.5	TP60 150x60x52
TT430N22KOF	430 (85)	2200	12000	1051	0.95	0.45	125	0.065	1.5	TP60A 150x60x52
TT500N12KOF	500 (85)	1200	14500	1051	0.85	0.35	125	0.058	1.5	TP60A 150x60x52
TT500N14KOF	500 (85)	1400	14500	1051	0.85	0.35	125	0.058	1.5	TP60A 150x60x52
TT500N16KOF	500 (85)	1600	14500	1051	0.85	0.35	125	0.058	1.5	TP60A 150x60x52
TT500N16KOF TIM	500 (85)	1600	14500	1051	0.85	0.35	125	0.058	1.5	TP60A 150x60x52
TT500N18KOF	500 (85)	1800	14500	1051	0.85	0.35	125	0.058	1.5	TP60A 150x60x52
TT520N22KOF	520 (85)	2200	14500	1051	0.85	0.35	125	0.058	1.5	TP60A 150x60x52

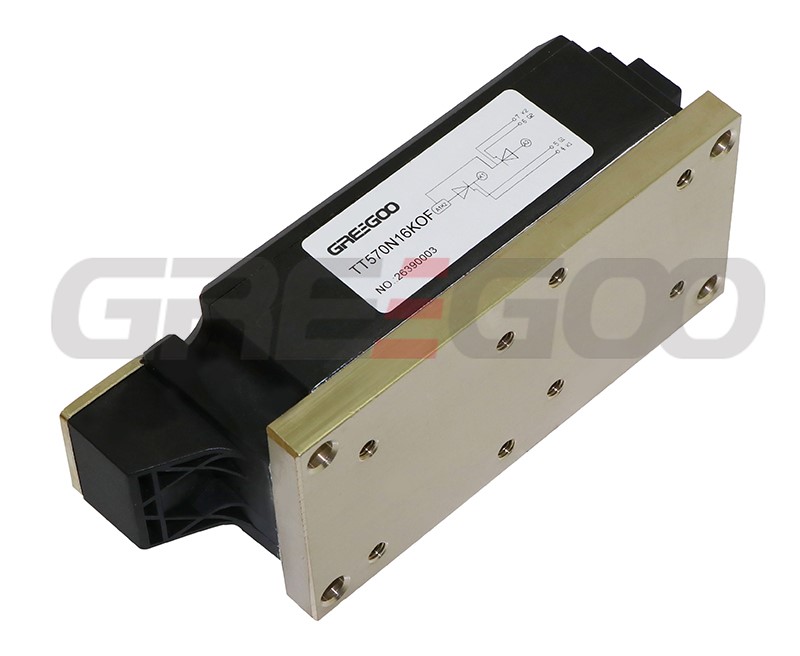

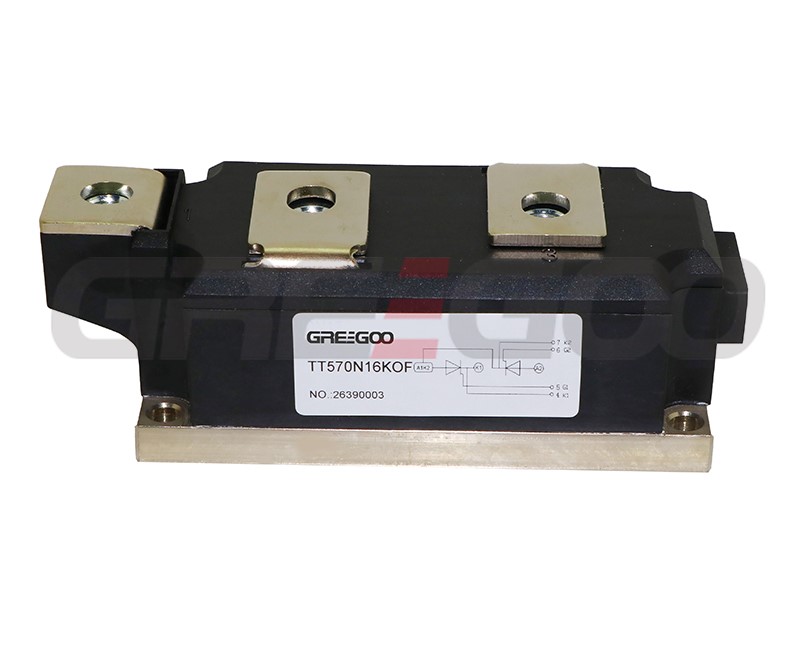

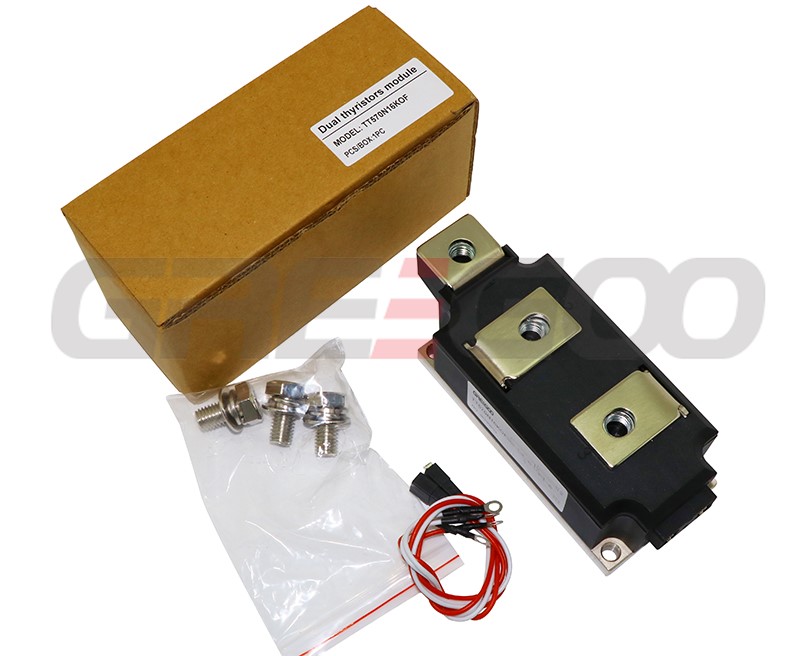

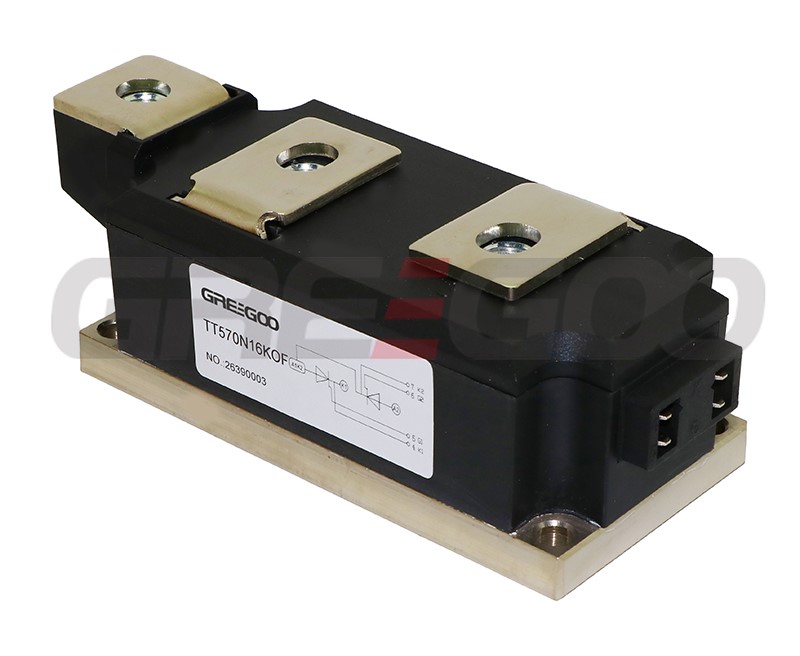

TT570N16KOF	570 (87)	1600	14000	1531	0.80	0.23	125	0.058	1.5	TP60A 150x60x52
TT570N18KOF	570 (87)	1800	16500	2000	0.80	0.30	125	0.058	1.5	TP60A 150x60x52
TT600N16KOF	600 (85)	1600	17500	1531	0.80	0.23	125	0.058	1.5	TP60A 150x60x52
TT600N16KOF TIM	600 (85)	1600	17500	1531	0.80	0.23	125	0.058	1.5	TP60A 150x60x52
Thyristor modules - baseplate 60x124 mm - pressure contact
TT700N22KOF	700 (85)	2200	17100	1462	0.85	0.35	135	0.049	1.4	TP60A 150x60x52
TT820N16KOF	820 (85)	1600	20100	2020	0.80	0.23	135	0.048	1.4	TP60A 150x60x52
TT820N16KOF TIM	820 (85)	1600	20100	2020	0.80	0.23	135	0.048	1.4	TP60A 150x60x52
