Stud Rotating Diode 16A 25A 40A 70A
|
Model |
IF(AV) |
VRRM |
VFM |
IRRM |
Tj |
Rjc |
αn |
Torque Force |
|
A |
V |
V |
mA |
℃ |
℃/W |
g |
N·m |
|
|
ZX16A |
16 |
800 ～ 1800 |
≤1.5 |
≤3 |
-40 ～ 150 |
0.8 |
1500 |
3.5 |
|

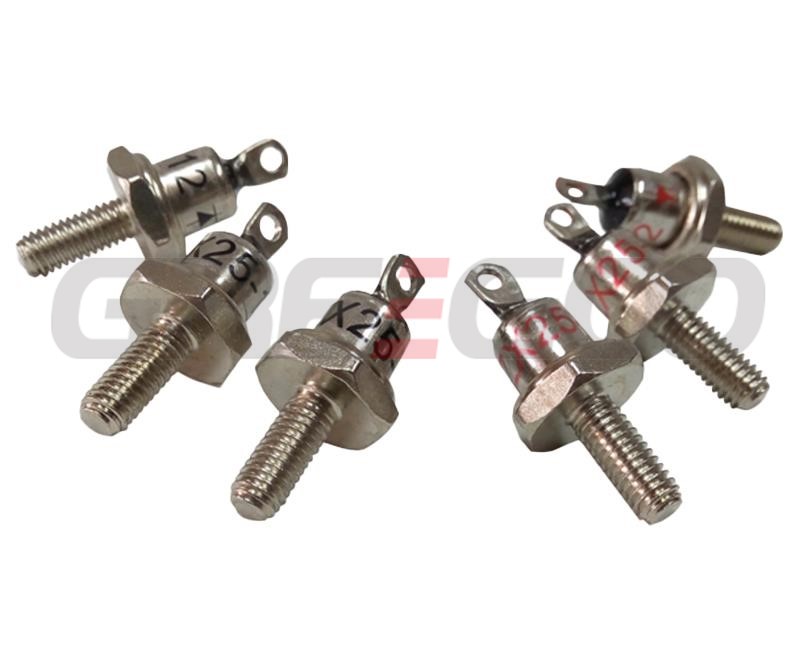

ZX25A |
25 |
≤3 |
0.7 |
3.5 |
||||
|
ZX40A |
40 |
≤3 |
0.6 |
4.5 |
||||
|

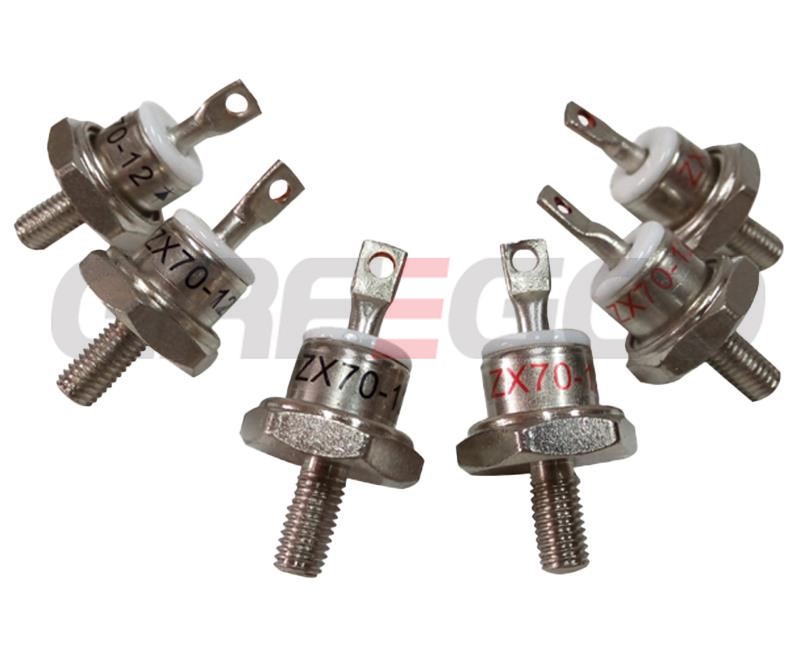

ZX70A |
70 |
≤5 |
0.4 |
4.5 |
A rotating diode is a special type of rectifier diode used in the brushless excitation system of synchronous generators (alternators). It is mounted on the rotating part of the machine (rotor) and plays a crucial role in converting AC (alternating current) to DC (direct current) to provide stable excitation to the generator's main field winding.
