Specification

Rotating Rectifier Diode Module

Part Numbers	IF(AV)	IFSM	I²t	VRRM	IRRM	VFM	Tj	Rjc	VISO	Torque Force		Note
Part Numbers	A	A	A²S	V	mA	V	℃	C/W	V	Module (N·m)	Terminals (N·m)	Technology

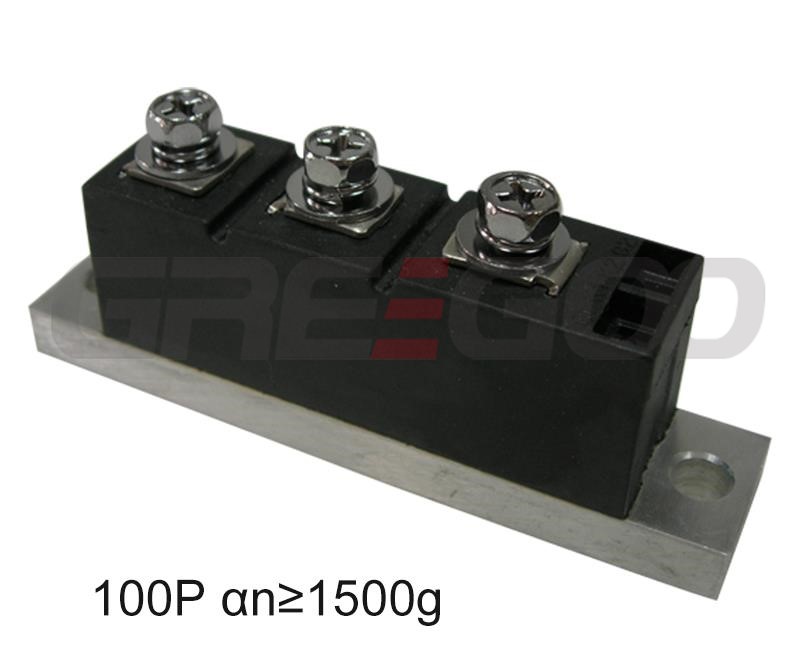

ZXQ100P	100	2200	24×10³	800-1800	≤6	≤1.65	-40～150	0.45	≥2500	4.5	3.5	Press Contact

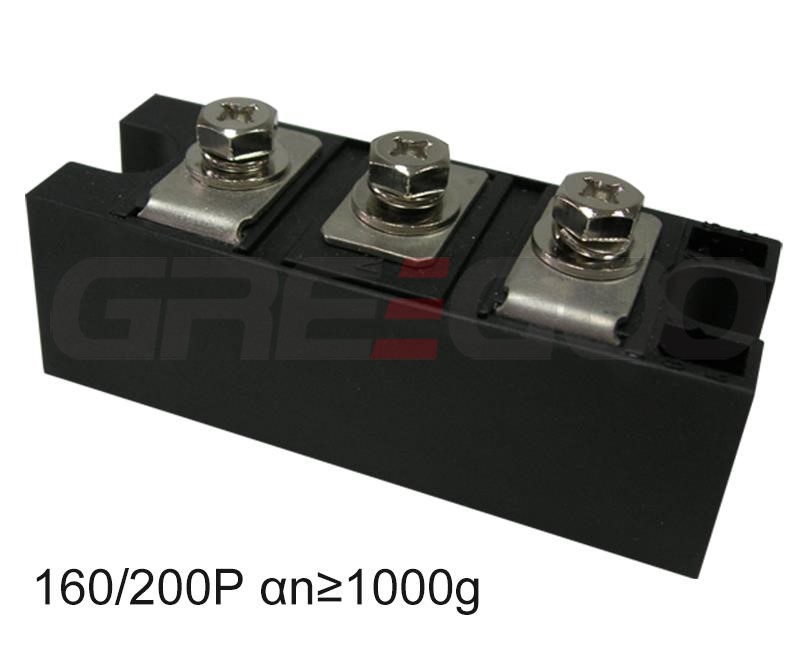

ZXQ160P	160	3200	60×10³	800-1800	≤8	≤1.80	-40～150	0.30	≥2500	4.5	4.5	Press Contact
ZXQ200P	200	4000	80×10³	800-1800	≤8	≤1.80	-40～150	0.20	≥2500	4.5	4.5	Press Contact
ZXQ250P	250	4700	120×10³	800-1800	≤10	≤1.80	-40～150	0.15	≥2500	4.5	10	Press Contact
ZXQ300P	300	5600	160×10³	800-1800	≤10	≤1.80	-40～150	0.11	≥2500	4.5	10	Press Contact
ZXQ350P	350	6400	220×10³	800-1800	≤10	≤2.00	-40～150	0.10	≥2500	4.5	10	Press Contact
ZXQ400P	400	7500	280×10³	800-1800	≤10	≤2.00	-40～150	0.09	≥2500	4.5	10	Press Contact
ZXQ500P	500	9400	440×10³	800-1800	≤12	≤2.00	-40～150	0.065	≥2500	4.5	10	Press Contact
ZXQ600P	600	11000	600×10³	800-1800	≤12	≤2.00	-40～150	0.055	≥2500	4.5	10	Press Contact
ZXQ700P	700	13000	850×10³	800-1800	≤15	≤2.00	-40～150	0.050	≥2500	4.5	12	Press Contact
ZXQ800P	800	15000	1100×10³	800-1800	≤15	≤2.00	-40～150	0.042	≥2500	4.5	12	Press Contact
ZXQ1000P	1000	19000	1800×10³	800-1800	≤15	≤2.00	-40～150	0.030	≥2500	4.5	12	Press Contact
ZXQ100S	100	1400	10×10³	800-1800	≤6	≤1.65	-40～150	0.45	≥2500	4.5	3.5	Soldering
ZXQ160S	160	2100	22×10³	800-1800	≤8	≤1.80	-40～150	0.30	≥2500	4.5	4.5	Soldering
ZXQ200S	200	2800	40×10³	800-1800	≤8	≤1.80	-40～150	0.20	≥2500	4.5	4.5	Soldering

FAQ

Q:What is a Rotating Diode?

A rotating diode is a special type of rectifier diode used in the brushless excitation system of synchronous generators (alternators). It is mounted on the rotating part of the machine (rotor) and plays a crucial role in converting AC (alternating current) to DC (direct current) to provide stable excitation to the generator's main field winding.
