Specification

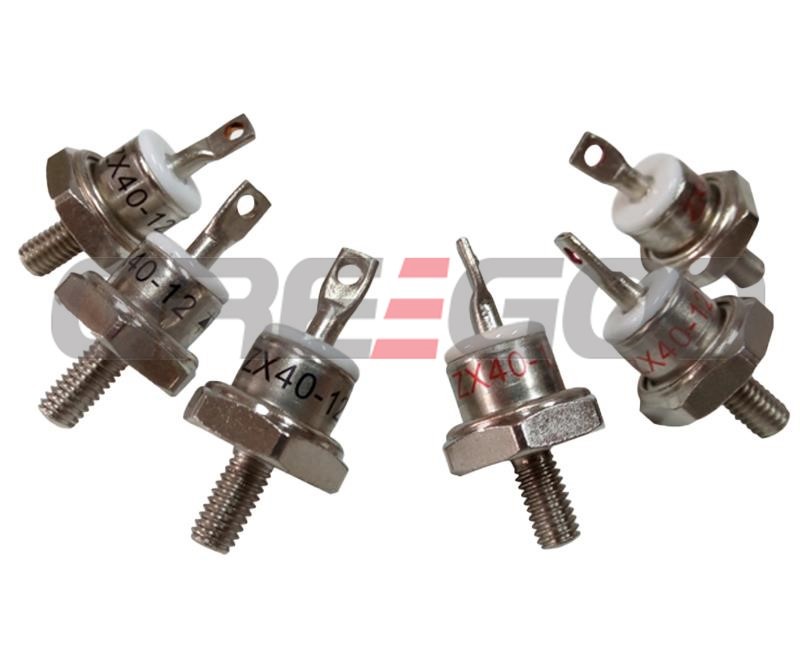

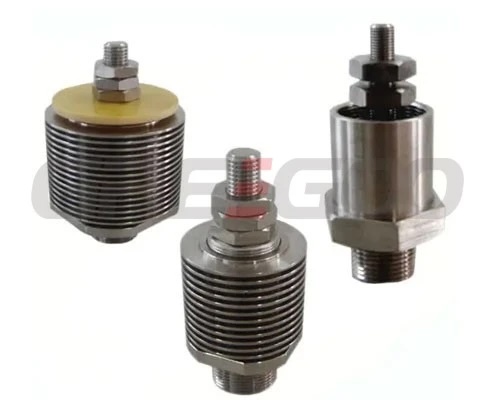

Stud Rotating Diode 16A 25A 40A 70A

Model	I_F(AV)	V_RRM	V_FM	I_RRM	Tj	Rjc	αn	Torque Force
Model	A	V	V	mA	℃	℃/W	g	N·m
ZX16A	16	800 ～ 1800	≤1.5	≤3	-40 ～ 150	0.8	1500	3.5
ZX25A	25			≤3		0.7		3.5
ZX40A	40			≤3		0.6		4.5
ZX70A	70			≤5		0.4		4.5

FAQ

Q:What is a Rotating Diode?

A rotating diode is a special type of rectifier diode used in the brushless excitation system of synchronous generators (alternators). It is mounted on the rotating part of the machine (rotor) and plays a crucial role in converting AC (alternating current) to DC (direct current) to provide stable excitation to the generator's main field winding.
