SKM300GA12E4 IGBT Module
IGBT4 Modules SKM300GA12E4
Features
- GBT4 = 4. generation medium fast trench IGBT (Infineon)
- CAL4 = Soft switching 4. generation CAL-diode
- Isolated copper baseplate using DBC technology (Direct Bonded Copper)
- Increased power cycling capability
- With integrated gate resistor
- For higher switching frequenzies up to 12kHz
Typical Applications
- AC inverter drives
- UPS
- Switched reluctance motor
Remarks
- Case temperature limited to Te = 125°C max.
- Recommended Top = -40 ... 150°C
- Product reliability results valid tor Tj= 150°C
Specification
| Characteristic | Value |
| Chip technology | IGBT 4 (Trench) |

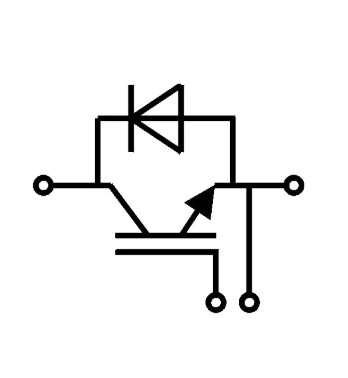

| Topology | Single Switch |
| Part numbers | SKM300GA12E4 |
| Current (A) | 300 A |
| Voltage (V) | 1200 V |
| Dimensions (LxWxH) | 106x62x37 |

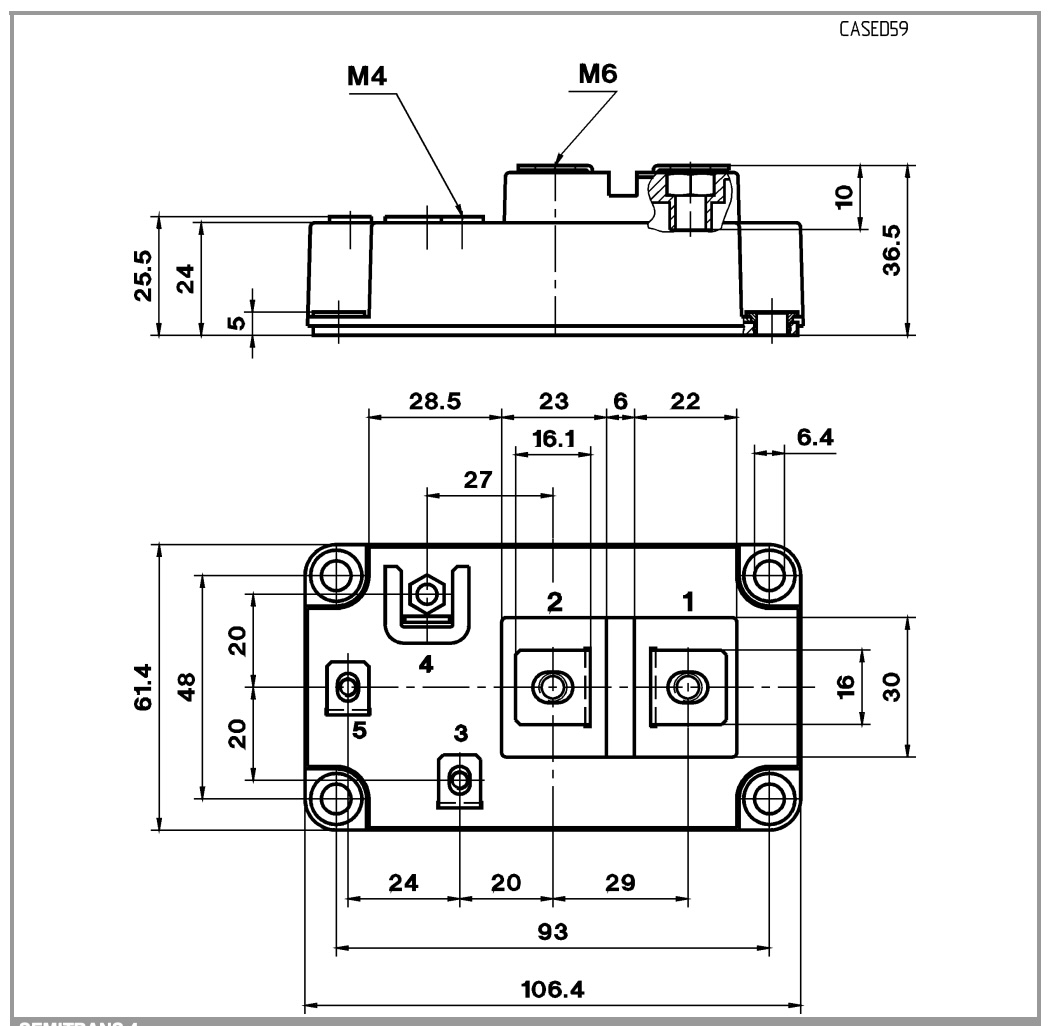

Outline dimensions
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
