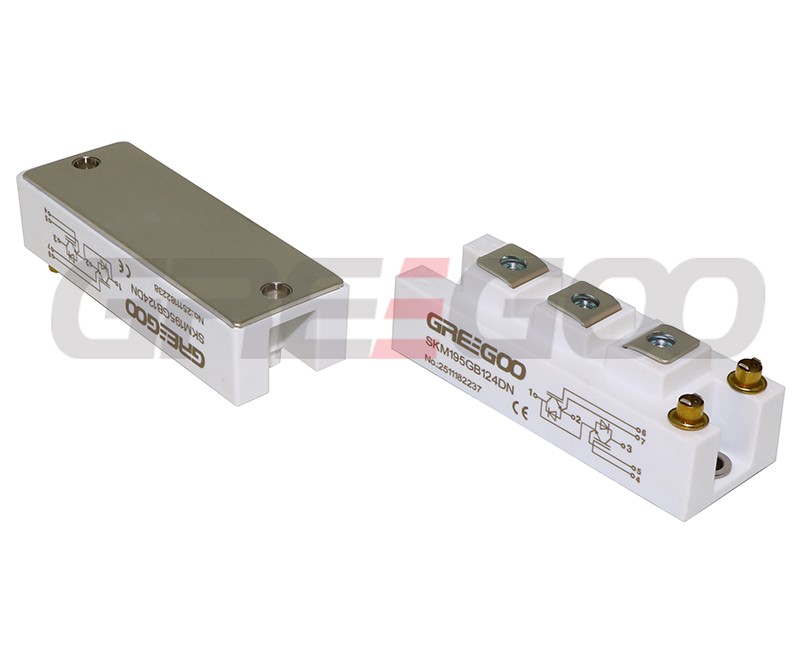

SKM195GB124DN high performance low loss IGBT Module

• Low-Loss Technology: Features N-channel, homogeneous Si structure NPT-IGBT (Non Punch-Through) technology for low saturation voltage and high efficiency.


• Rugged Construction: Includes an isolated copper baseplate using DCB (Direct Copper Bonding) technology for superior thermal management.


• Protective Components: Integrated with CAL (Controlled Avalanche) fast and soft inverse diodes to reduce reverse recovery stress and EMI.


• Safety Features: High short-circuit capability and large clearance/creepage distances (10mm/20mm) for enhanced safety.

• Motor Drives: AC motor speed control, variable frequency drives (VFDs), and servo drives.


• Power Conversion: Uninterruptible Power Supplies (UPS), solar/wind inverters, and DC choppers.


• Industrial Equipment: Electronic welding machines and industrial heating controls.


• Electric Vehicles: Power electronics for battery-to-AC motor conversion.

Collector-Emitter Voltage (Vces): 1200V

Continuous Collector Current (Ic): 180A (at a case temperature 80°C)

Package Type: SEMITRANS 2

Configuration: Half-Bridge (Dual IGBT module configuration)
