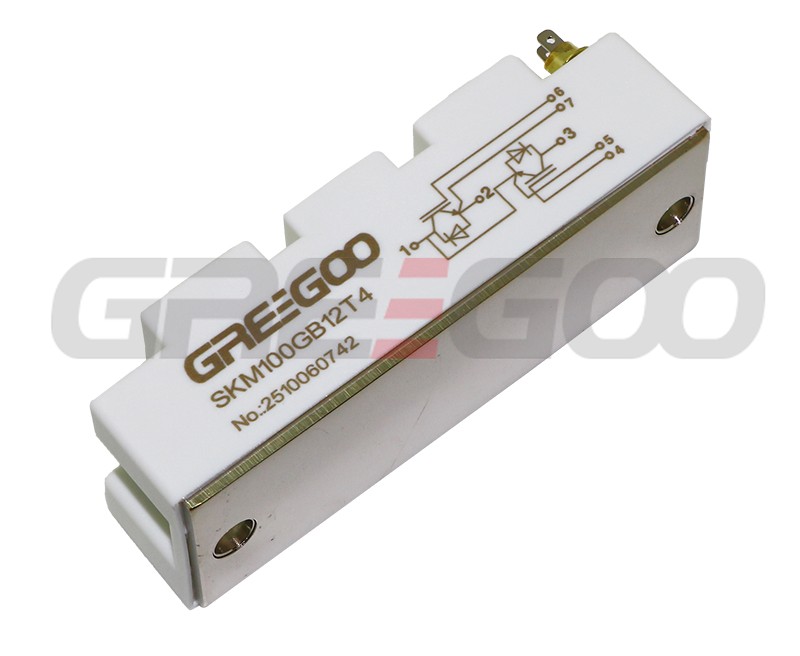

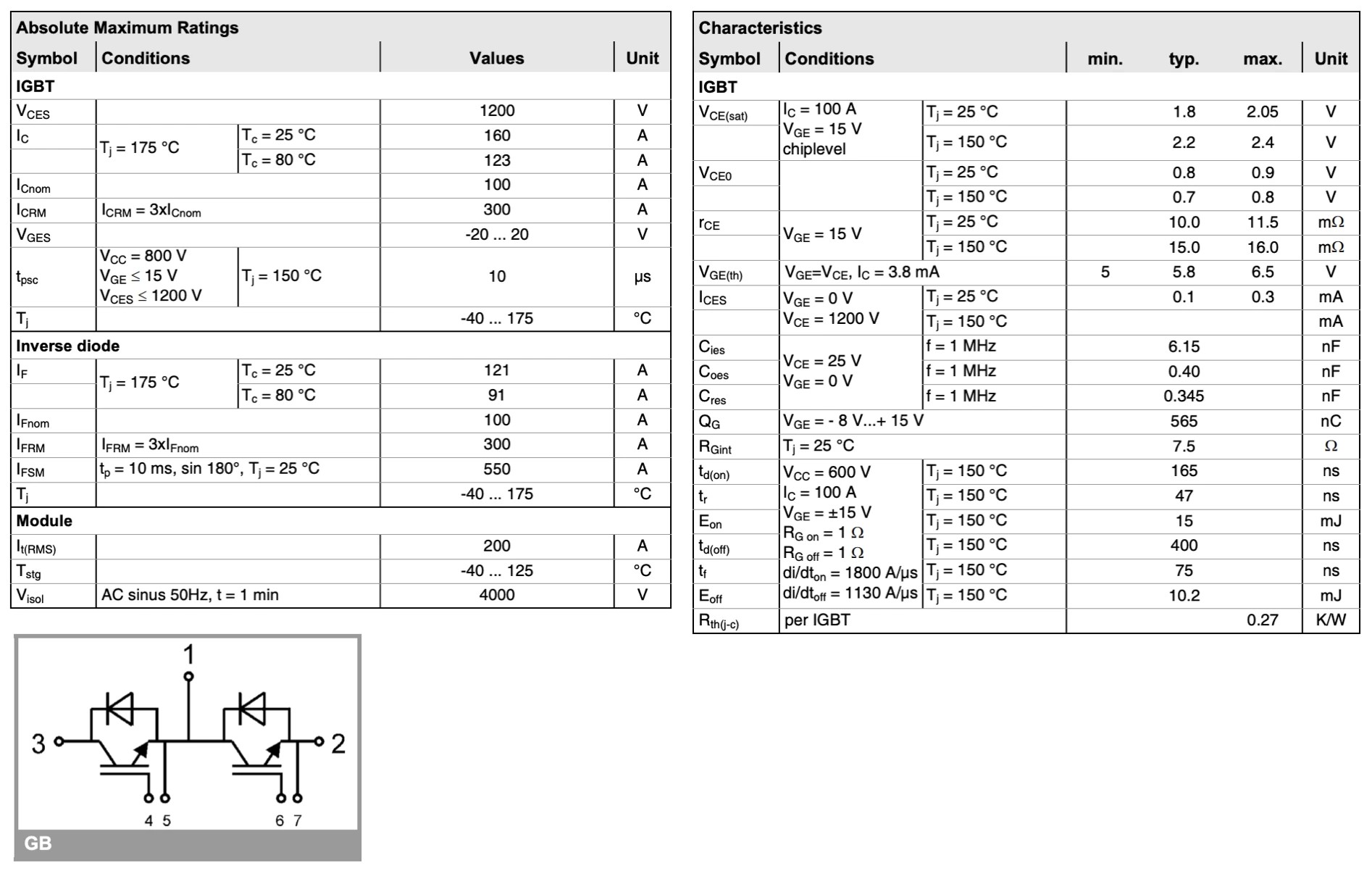

SKM100GB12T4 Fast IGBT4 Modules

Features

• IGBT4 = 4. Generation (Trench)IGBT
• VCEsat with positive temperature coefficient
• High short circuit capability, self limiting to 6 X ICNOM
• Soft switching 4. Generation CAL diode (CAL4)



Typical Applications

• AC inverter drives
• UPS
• Electronic welders at fsw up to 20 kHz

Remarks

• Case temperature limited to Tc = 125°C max, recomm.

Top = -40 ... 150°C, product rel. results valid for Tj = 150°
