LZZJB6-10Q Current Transformer
Home Products Medium Voltage CT & PTMedium Voltage Current TransformersLZZJB6-10Q Current Transformer
LZZJB6-10Q Current Transformer
LZZJB6-10Q type current transformer is suitable for power systems with rated frequency of 50Hz or 60Hz and rated voltage of 10kV for energy measurement, current measurement and protection.
Installation location: indoors.
Ambient temperature: maximum temperature 40℃; minimum temperature -5℃; daily average temperature does not exceed 30℃.
Atmospheric conditions: There is no serious pollution in the atmosphere.

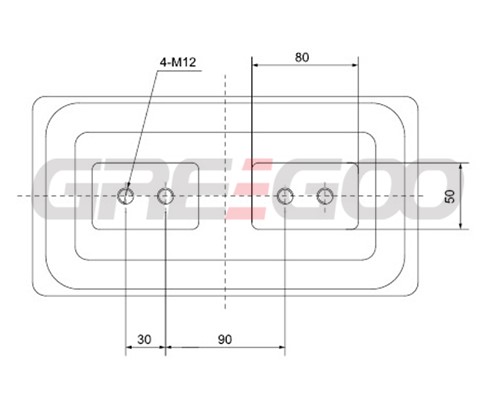

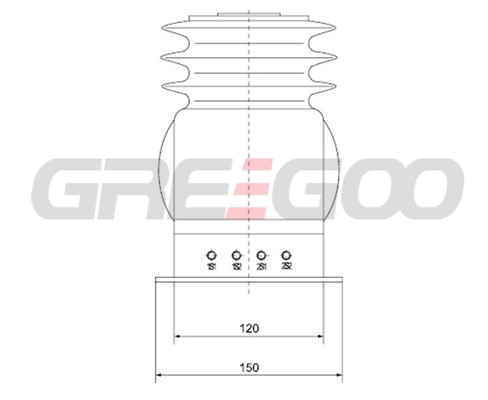

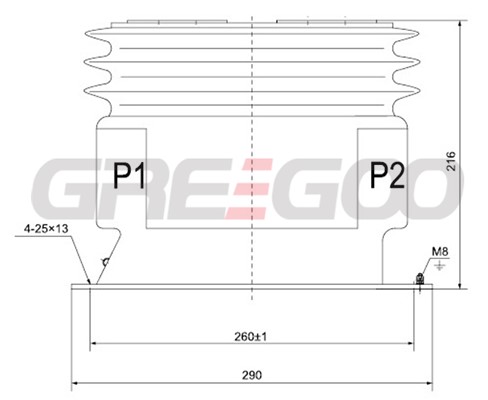

This type of current transformer is a fully enclosed structure cast by epoxy resin and has excellent insulation properties and moisture-proof capabilities. The product has clear contours, beautiful appearance and easy surface cleaning. There are grounding bolts and four mounting holes for installation on the bottom plate of the product.
LZZJB6-10Q type current transformer is suitable for power systems with rated frequency of 50Hz or 60Hz and rated voltage of 10kV for energy measurement, current measurement and protection.
Installation location: indoors.
Ambient temperature: maximum temperature 40℃; minimum temperature -5℃; daily average temperature does not exceed 30℃.
Atmospheric conditions: There is no serious pollution in the atmosphere.
This type of current transformer is a fully enclosed structure cast by epoxy resin and has excellent insulation properties and moisture-proof capabilities. The product has clear contours, beautiful appearance and easy surface cleaning. There are grounding bolts and four mounting holes for installation on the bottom plate of the product.
| Model |
Rated
primary
current
|
Rated
secondary
current |
Accuracy
class
|
Burden |
Short time
thermal
current
|
Dynamically
stable
current
|
Rated
insulation
level
|
| A | A | VA | kA/s | kA/s | KV | ||
| LZZJB6-10Q | 5 |
5A
1A
|
0.2/10P10
0.5/10P10
0.2/10P15
0.5/10P15
|
10/15
10/15
10/15
15/15
|
0.6 | 1.5 | 12/42/75 |
| 10 | 1.2 | 3 | |||||
| 15 | 1.8 | 4.5 | |||||
| 20 | 2.4 | 6 | |||||
| 30 | 3.6 | 9 | |||||
| 40 | 4.8 | 12 | |||||
| 50 | 6 | 15 | |||||
| 75 | 9 | 22.5 | |||||
| 100 | 12 | 30 | |||||
| 150 | 18 | 45 | |||||
| 200 | 18 | 45 | |||||
| 300 | 24.5 | 61.25 | |||||
| 400 | 24.5 | 61.25 | |||||
| 500 | 44.5 | 111 | |||||
| 600 | 44.5 | 111 | |||||
| 800 | 44.5 | 111 | |||||
| 1000 | 44.5 | 111 | |||||
| 1200 | 44.5 | 111 |
