LZZBW-10 Current Transformer
Home Products MV CT & PTMedium Voltage Current TransformersLZZBW-10 Current Transformer
Product Details

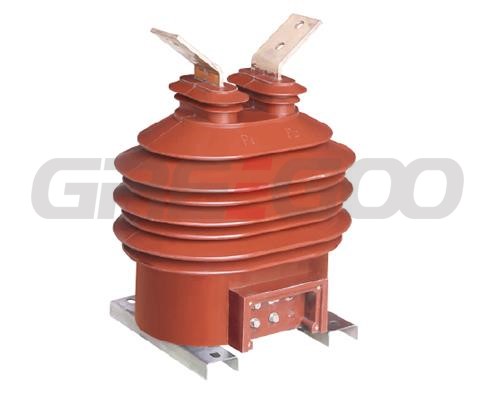

LZZBW-10 Current Transformer
OUTDOOR SINGLE-PHASE EPOXY RESIN CASTING TYPE
Rated frequency 50Hz or 60Hz
Rated insulation level 12/42/75kV
The current transformers are in accordance with IEC60044-1 standards
Ambient temperature-5℃~+40℃
Pollution class IV
