Product details

Insulated Gen 2 Schottky Rectifier Module QA250FA20

DESCRIPTION

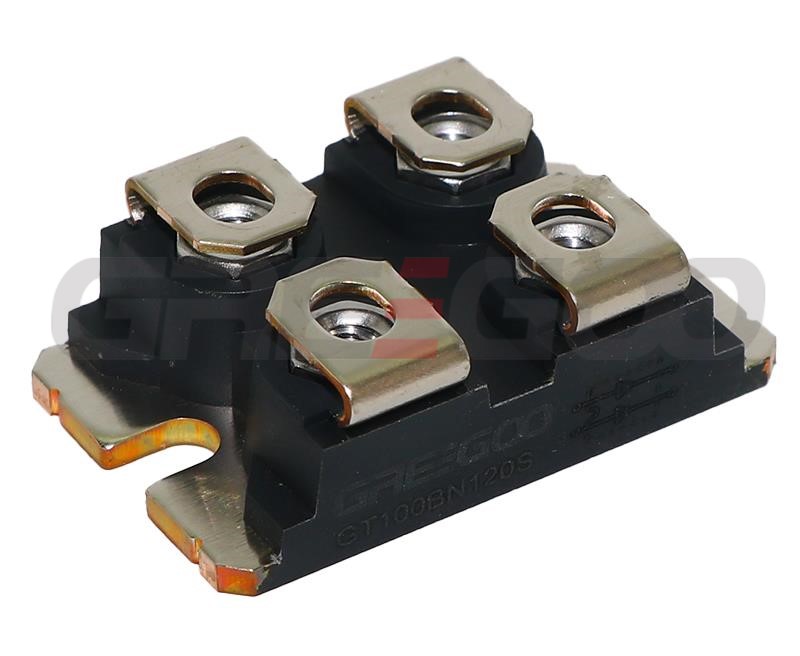

The QA250FA20 insulated modules integrate two state of the art Trench MOS Schottky technology rectifiers in the compact, industry standard SOT-227 package. These devices are thus intended for high frequency converters and switching power supplies.

FEATURES

• Max. TJ = 175 °C

• Two fully independent diodes

• Fully insulated package

• Trench MOS Barrier Schottky technology

• Ultra low forward voltage drop

• Optimized for power conversion: welding and industrial SMPS applications

• Easy to use and parallel

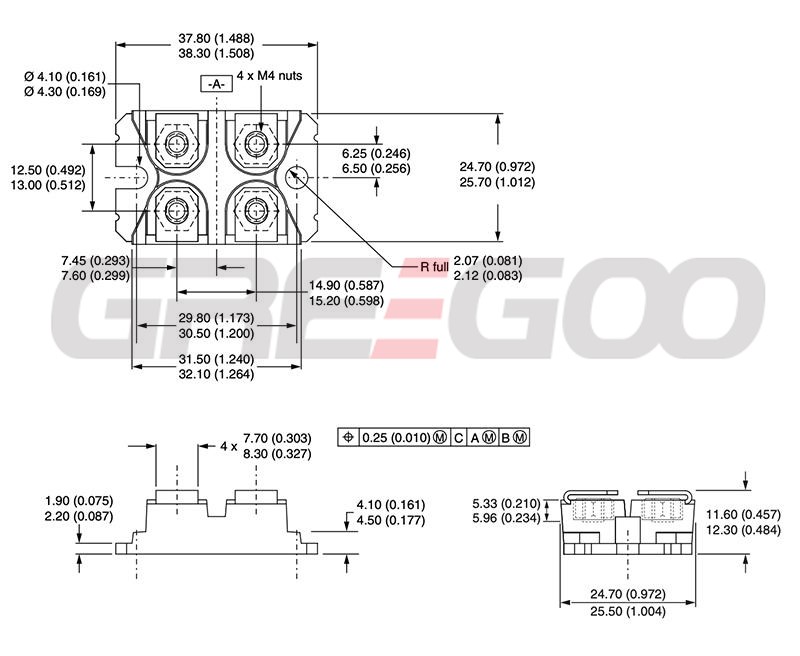

• Industry standard outline

• Designed and qualified for industrial level

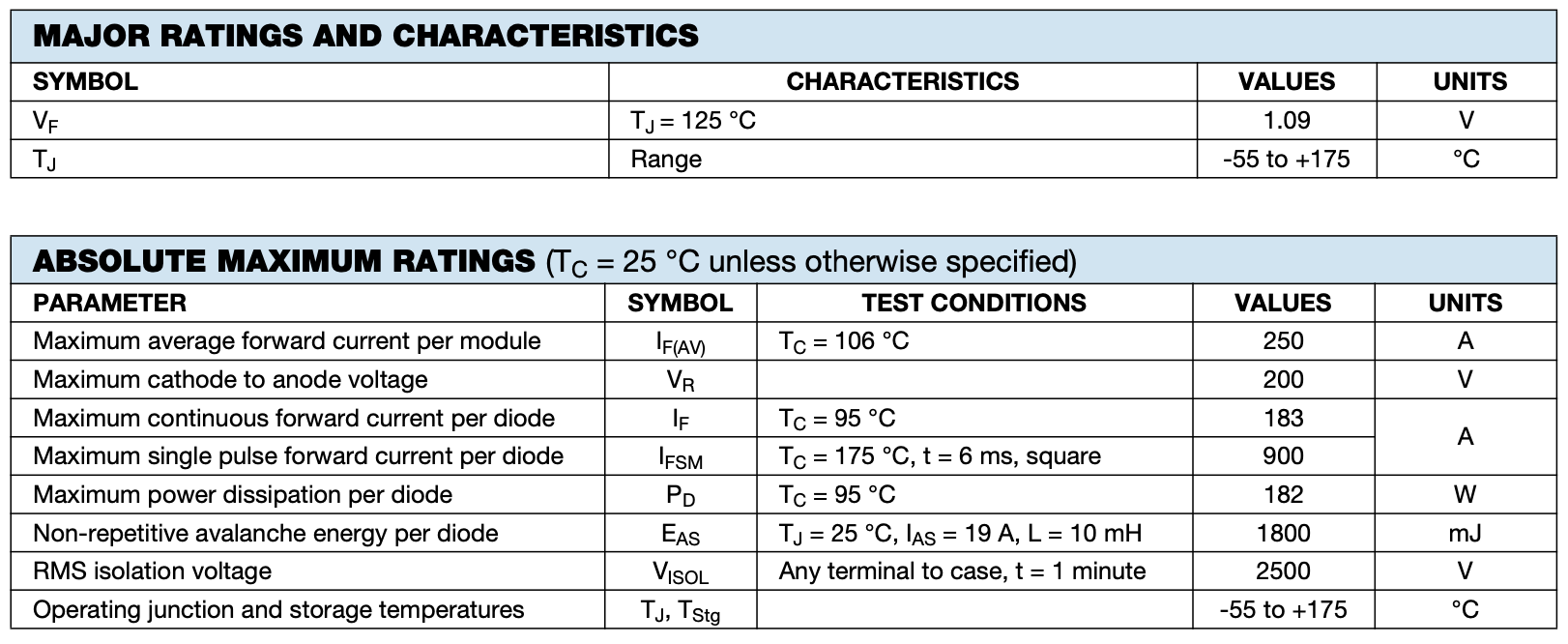

MAJOR RATINGS AND CHARACTERISTICS

VS-QA250FA20

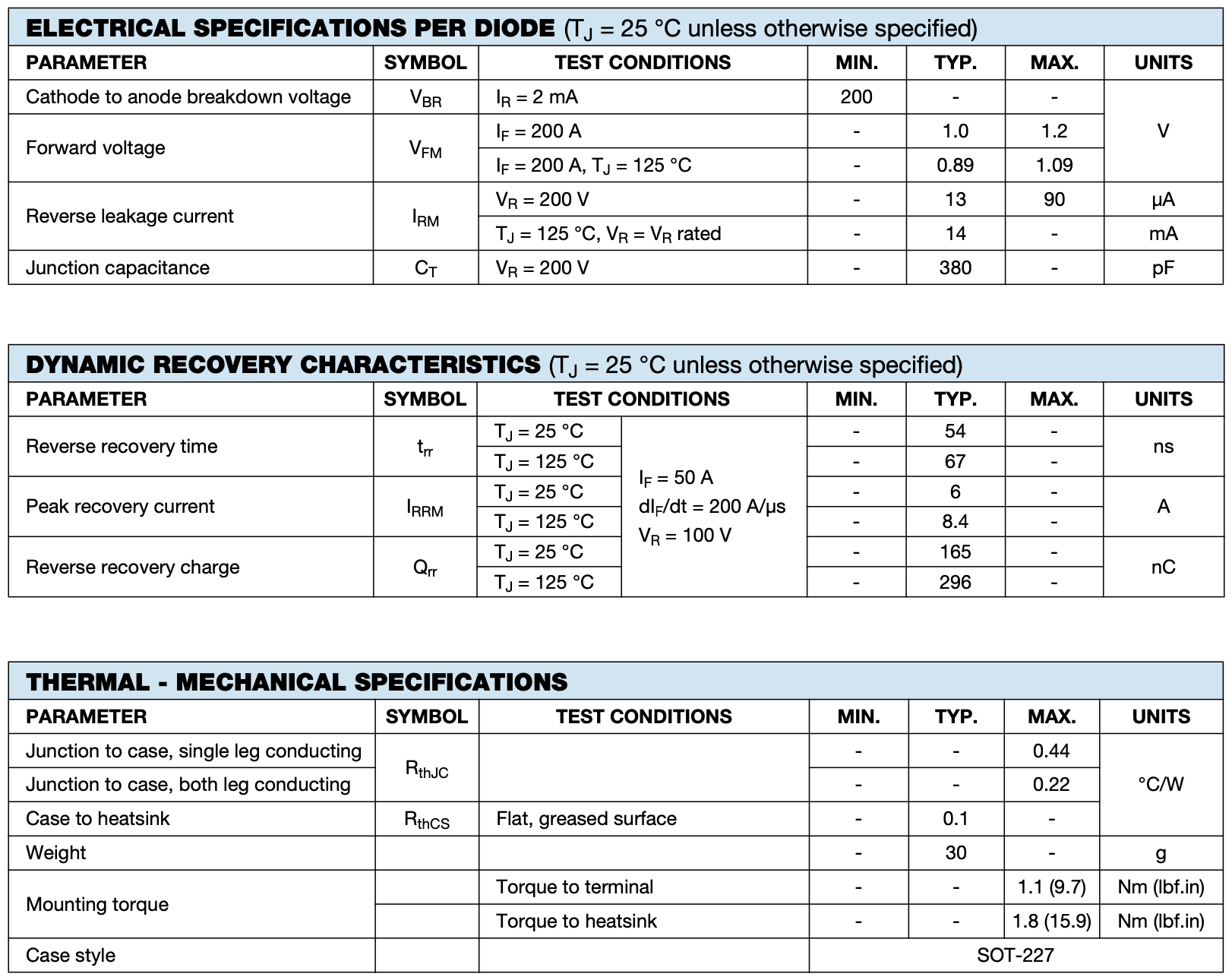

ELECTRICAL SPECIFICATIONS

VS-QA250FA20

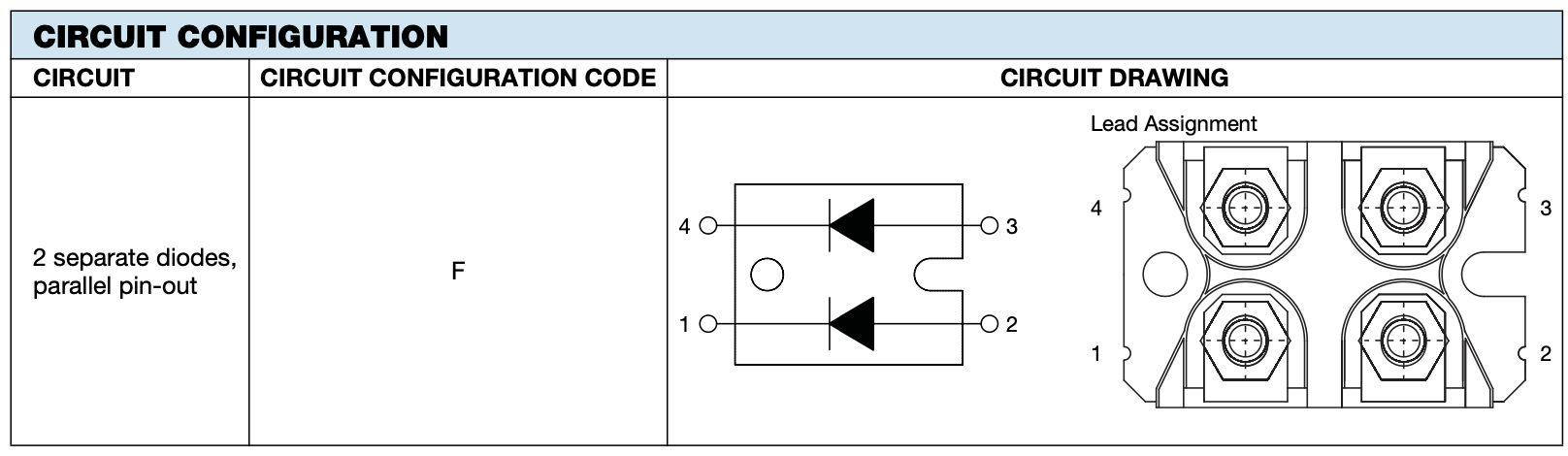

CIRCUIT CONFIGURATION
