Product details

Schottky Gen2 Diode

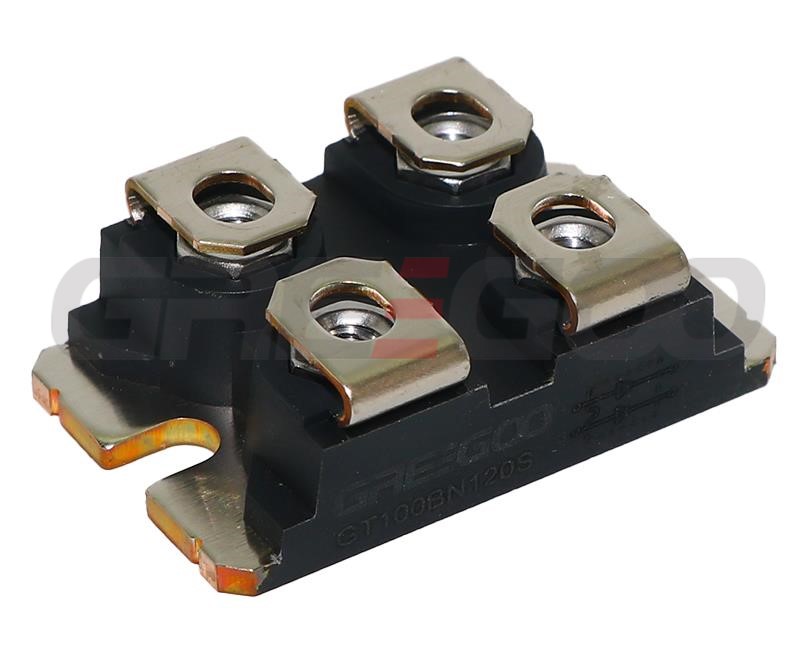

The second-generation Schottky diode (Schottky Gen2 Diode) in SOT-227B package offers advantages such as high efficiency, low thermal resistance, and high reliability. Its low forward voltage drop and fast switching characteristics make it excellent for high-frequency and high-power applications, while the SOT-227B package provides superior heat dissipation, suitable for space-constrained scenarios. Key applications include AC-DC and DC-DC power conversion, solar inverters, motor drives, battery chargers, electric vehicle power modules, and industrial equipment (e.g., UPS and welding devices). Additionally, it is widely used in high-frequency switching power supplies and RF circuits. The second-generation technology further enhances efficiency and durability, making it an ideal choice for high-performance power electronic systems.

Specification

Type	V_RRM	I_FAV d=0.5 A	@Tc d=0.5 ℃	V_F T_VJ=125℃ V	@I_F T_VJ=125℃ V	T_VJM ℃	R_thJC K/W	Fig. No.
DSA 300I45NA	45	300	95	0.7	300	150	0.2	SOT-227B
DSA 300I100NA	100	300	90	0.79	300	150	0.2	SOT-227B
DSA 240X150NA	150	2x 120	95	0.85	120	150	0.4	SOT-227B
DSA 240X200NA	200	2x 120	90	0.87	120	150	0.4	SOT-227B
DSA 300l200NA	200	300	80	0.88	300	150	0.2	SOT-227B
