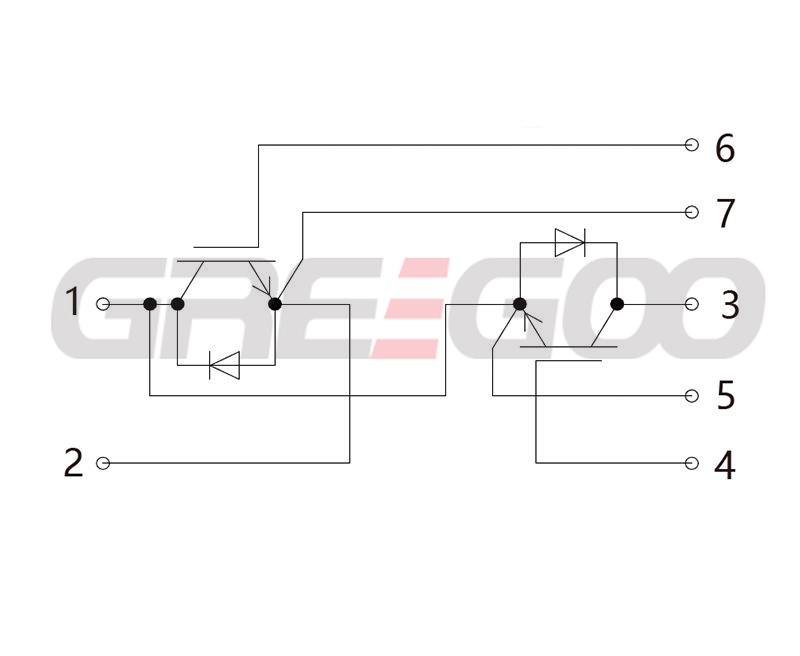

Half Bridge IGBT Module
Half-bridge IGBT modules are widely used in power electronics due to their flexibility, excellent electrical performance, and high reliability. They provide an efficient solution for variable frequency drives (VFDs) with optimized switching characteristics, including soft switching and reduced power loss. Equipped with integrated gate resistors and built-in overvoltage and overcurrent protection, these modules ensure safe and stable operation.
Common applications include induction heating power supplies, inverter welding machines, uninterruptible power supplies (UPS), and variable frequency speed control systems. Their advanced design makes them ideal for high-efficiency and high-performance power conversion solutions.
|
Type |
Vces (V) |
Ic (A) |
Vcesat (V) |
Rthjc (K/W) |
Housing |
Infineon Equivalent |
SEMIKRON Equivalent |
|
G50GB06D |
650 |
50 |
1.9 |
0.50 |
G1 |
BSM50GB60DLC |
SKM50GB063D |
|
G75GB06D |
650 |
75 |
1.9 |
0.39 |
G1 |
BSM75GB60DLC |
SKM75GB063D |
|
G100GB06D |
650 |
100 |
1.9 |
0.30 |
G1 |
BSM100GB60DLC |
SKM100GB063D |
|
G150GB06D |
650 |
150 |
1.9 |
0.21 |
G1 |
BSM150GB60DLC |
SKM145GB066D |
|
G200GB06D |
650 |
200 |
1.9 |
0.16 |
G1 |
BSM200GB60DLC |
SKM195GB066D |
|
G200GB06IE4 |
650 |
200 |
1.9 |
0.16 |
G2 |
FF200R06KE3 |
SKM200GB063D |
|
G300GB06IE4 |
650 |
300 |
1.9 |
0.11 |
G2 |
FF300R06KE3, BSM300GB60DLC |
SKM300GB063D/066D |
|
G400GB06IE4 |
650 |
400 |
1.9 |
0.08 |
G2 |
FF400R06KE3, FF400R07KE4 |
SKM400GB066D |
|
G200GB06SE4 |
650 |
200 |
1.9 |
0.16 |
G2S |
- |
SKM200GB063D |
|
G300GB06SE4 |
650 |
300 |
1.9 |
0.11 |
G2S |
- |
SKM300GB063D/066D |
|
G400GB06SE4 |
650 |
400 |
1.9 |
0.09 |
G2S |
- |
SKM400GB066D |
|
G450GB06ME4 |
650 |
450 |
1.9 |
0.07 |
G6 |
FF450R06ME3 |
- |
|
G600GB06ME4 |
650 |
600 |
1.9 |
0.05 |
G6 |
FF600R06ME3 |
- |
|
G100GB12T4 |
1200 |
40 |
2.30 |
0.60 |
G1 |
BSM35GB120DN2/DLC |
- |
|
G50GB12T4 |
1200 |
50 |
2.30 |
0.46 |
G1 |
FF50R12RT4, BSM50GB120DN2/DLC |
SKM50GB12T4/12V/123D/124D/128D |
|
G75GB12T4 |
1200 |
75 |
2.30 |
0.39 |
G1 |
FF75R12RT4, BSM75GB120DN2/DLC |
SKM75GB12T4/12V/123D/124D/128D |
|
G100GB12T4 |
1200 |
100 |
2.30 |
0.31 |
G1 |
FF100R12RT4, BSM100GB120DN2/DLCK |
SKM100GB12T4/12V/123D/124D/128D |
|
G150GB12T4 |
1200 |
150 |
2.30 |
0.23 |
G1 |
FF150R12RT4 |
SKM150GB12T4/12V, SKM145GB123D/128D |
|
G100GB12T4G |
1200 |
100 |
2.30 |
0.29 |
G2S |
- |
SKM100GB12T4G |
|
G150GB12T4G |
1200 |
150 |
2.30 |
0.23 |
G2S |
- |
SKM150GB12T4G/12VG/123D/128D |
|
G200GB12T4 |
1200 |
200 |
2.30 |
0.15 |
G2S |
- |
SKM200GB12T4/12V/123D/128D |
|
G300GB12T4 |
1200 |
300 |
2.30 |
0.11 |
G2S |
- |
SKM300GB12T4/12V/123D/128D |
|
G400GB12T4 |
1200 |
400 |
2.30 |
0.09 |
G2S |
- |
SKM400GB12T4/12V/123D/128D |
|
G450GB12T4 |
1200 |
450 |
2.30 |
0.07 |
G2S |
- |
SKM450GB12T4 |
|
G200GB12TS4 |
1200 |
200 |
2.30 |
0.15 |
G2S |
- |
SKM200GB12D305/12D615 |
|
G200GBD12T4 |
1200 |
200 |
2.30 |
0.15 |
G2S |
- |
SKM200GBD12D6 |
|
G300GBD12T4 |
1200 |
300 |
2.30 |
0.11 |
G2S |
- |
SKM300GBD12T4 |
|
G150GB12SE4 |
1200 |
150 |
2.10 |
0.17 |
G2S |
- |
- |
|
G200GB12SE4 |
1200 |
200 |
2.10 |
0.12 |
G2S |
- |
SKM200GB12E4/124D/126D |
|
G300GB12SE4 |
1200 |
300 |
2.10 |
0.09 |
G2S |
- |
SKM300GB12E4/124D/126D |
|
G400GB12SE4 |
1200 |
400 |
2.10 |
0.08 |
G2S |
- |
SKM400GB12E4/124D/126D |
|
G450GB12SE4 |
1200 |
450 |
2.10 |
0.07 |
G2S |
- |
SKM450GB12E4 |
|
G100GB12S4 |
1200 |
100 |
3.00 |
0.22 |
G1S |
- |
SKM100GB125DN |
|
G150GB12S4 |
1200 |
150 |
3.00 |
0.23 |
G2S |
- |
- |
|
G200GB12S4 |
1200 |
200 |
3.00 |
0.15 |
G2S |
- |
SKM200GB125D |
|
G300GB12S4 |
1200 |
300 |
3.00 |
0.09 |
G2S |
- |
SKM300GB125D |
|
G400GB12S4 |
1200 |
400 |
3.00 |
0.15 |
G2S |
- |
SKM400GB125D |
|
G100GB12T4G |
1200 |
100 |
2.30 |
0.29 |
G2 |
BSM100GB120DN2 |
- |
|
G150GB12T4G |
1200 |
150 |
2.30 |
0.23 |
G2 |
FF150R12KT3G, BSM150GB120DN2 |
- |
|
G200GB12T4G |
1200 |
200 |
2.30 |
0.15 |
G2 |
FF200R12KT3/4, BSM200GB120DN2 |
- |
|
G300GB12T4 |
1200 |
300 |
2.30 |
0.11 |
G2 |
FF300R12KT3/4 |
- |
|
G400GB12T4 |
1200 |
400 |
2.30 |
0.09 |
G2 |
FF400R12KT3 |
- |
|
G450GB12T4 |
1200 |
450 |
2.30 |
0.07 |
G2 |
FF450R12KT4 |
- |
|
G100GB12IE4 |
1200 |
100 |
2.10 |
0.21 |
G2 |
BSM100GB120DLC |
- |
|
G150GB12IE4 |
1200 |
150 |
2.10 |
0.17 |
G2 |
FF150R12KE3G, BSM150GB120DLC |
- |
|
G200GB12IE4 |
1200 |
200 |
2.10 |
0.14 |
G2 |
FF200R12KE3/KE4, BSM200GB120DLC |
- |
|
G300GB12IE4 |
1200 |
300 |
2.10 |
0.09 |
G2 |
FF300R12KE3/KE4, BSM300GB120DLC |
- |
|
G400GB12IE4 |
1200 |
400 |
2.10 |
0.08 |
G2 |
FF400R12KE3 |
- |
|
G450GB12IE4 |
1200 |
450 |
2.10 |
0.07 |
G2 |
FF450R12KE4 |
SKM450GB12IE4 |
|
G100GB12IS4 |
1200 |
100 |
2.30 |
0.22 |
G2 |
FF100R12KS4 |
- |
|
G150GB12IS4 |
1200 |
150 |
2.30 |
0.23 |
G2 |
FF150R12KS4 |
- |
|
G200GB12IS4 |
1200 |
200 |
2.30 |
0.15 |
G2 |
FF200R12KS4 |
- |
|
G300GB12IS4 |
1200 |
300 |
2.30 |
0.09 |
G2 |
FF300R12KS4 |
- |
|
G225GB12ME4 |
1200 |
225 |
2.10 |
0.11 |
G6 |
FF225R12ME4/ME3 |
- |
|
G300GB12ME4 |
1200 |
300 |
2.10 |
0.09 |
G6 |
FF300R12ME4/ME3 |
- |
|
G450GB12ME4 |
1200 |
450 |
2.10 |
0.07 |
G6 |
FF450R12ME4/ME3 |
- |
|
G600GB12ME4 |
1200 |
600 |
2.10 |
0.05 |
G6 |
FF600R12ME4/ME3 |
- |
|
G50GB17E4 |
1700 |
50 |
2.30 |
0.46 |
G1 |
BSM50GB170DN2 |
SKM75GB176D/173D |
|
G75GB17E4 |
1700 |
75 |
2.30 |
0.39 |
G1 |
BSM75GB170DN2 |
SKM75GB17E4, SKM100GB176D/173D |
|
G100GB17E4 |
1700 |
100 |
2.30 |
0.14 |
G1 |
- |
SKM100GB17E4, SKM145GB176D |
|
G150GB17E4 |
1700 |
150 |
2.30 |
0.11 |
G1 |
- |
SKM150GB17E4 |
|
G100GB17IE4 |
1700 |
100 |
2.30 |
0.12 |
G2 |
BSM100GB170DN2/DLC |
- |
|
G150GB17IE4 |
1700 |
150 |
2.30 |
0.12 |
G2 |
FF150R17KE4, BSM150GB170DN2/DLC |
- |
|
G200GB17IE4 |
1700 |
200 |
2.30 |
0.08 |
G2 |
FF200R17KE4/KE3, BSM200GB170DLC |
- |
|
G300GB17IE4 |
1700 |
300 |
2.30 |
0.05 |
G2 |
FF300R17KE4/KE3 |
- |
|
G100GB17IE4 |
1700 |
100 |
2.30 |
0.16 |
G2 |
BSM100GB170DN2/DLC |
- |
|
G150GB17IE4 |
1700 |
150 |
2.30 |
0.12 |
G2 |
FF300R06KE3, BSM300GB60DLC |
- |
|
G200GB17IE4 |
1700 |
200 |
2.30 |
0.08 |
G2 |
FF400R06KE3, FF400R07KE4 |
- |
|
G300GB17IE4 |
1700 |
300 |
2.30 |
0.05 |
G2 |
FF300R17KE4/KE3 |
- |
|
G100GB17SE4 |
1700 |
100 |
2.30 |
0.16 |
G2S |
- |
- |
|
G150GB17SE4 |
1700 |
150 |
2.30 |
0.12 |
G2S |
- |
- |
|
G200GB17SE4 |
1700 |
200 |
2.30 |
0.08 |
G2S |
- |
- |
|
G300GB17SE4 |
1700 |
300 |
2.30 |
0.05 |
G2S |
- |
- |
|
G225GB17ME4 |
1700 |
225 |
2.30 |
0.07 |
G6 |
FF225R17ME4/ME3 |
- |
|
G300GB17ME4 |
1700 |
300 |
2.30 |
0.04 |
G6 |
FF300R17ME4/ME3 |
- |
|
G450GB17ME4 |
1700 |
450 |
2.30 |
0.04 |
G6 |
FF450R17ME4/ME3 |
- |
|
G600GB17ME4 |
1700 |
600 |
2.30 |
0.03 |
G6 |
FF600R17ME4/ME3 |
- |
