GD400CUY120C2S IGBT Module
Home Products IGBT Power ModuleBest Selling IGBT ModulesGD400CUY120C2S IGBT Module
Product Details
GD400CUY120C2S IGBT Module
Features
• Low VCE(sat) Trench IGBT technology
• 10μs short circuit capability
• VCE(sat) with positive temperature coefficient
• Maximum junction temperature 175°C
• Low inductance case
• Fast & soft reverse recovery anti-parallel FWD
• Isolated copper baseplate using DBC technology
Typical Applications
• Inverter for motor drive
• AC and DC servo drive amplifier
• Uninterruptible power supply

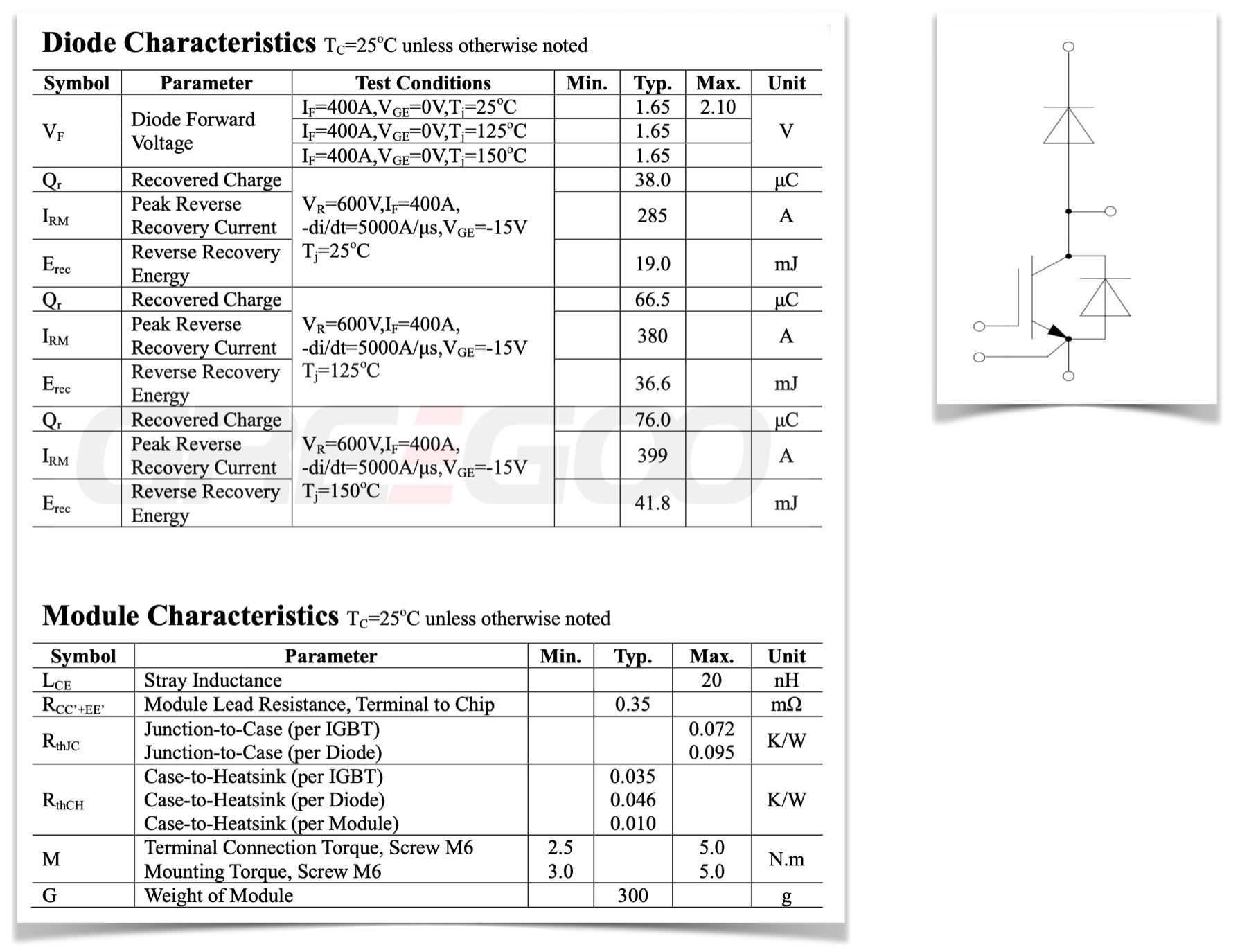

Specification
GD400CUY120C2S IGBT Module
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
