FZ1600R17KF6C-B2 IGBT Module

Home Products IGBT Power Module IGBT ModulesFZ1600R17KF6C-B2 IGBT Module

FZ1600R17KF6C-B2
FZ1600R17KF6C-B2
Product details

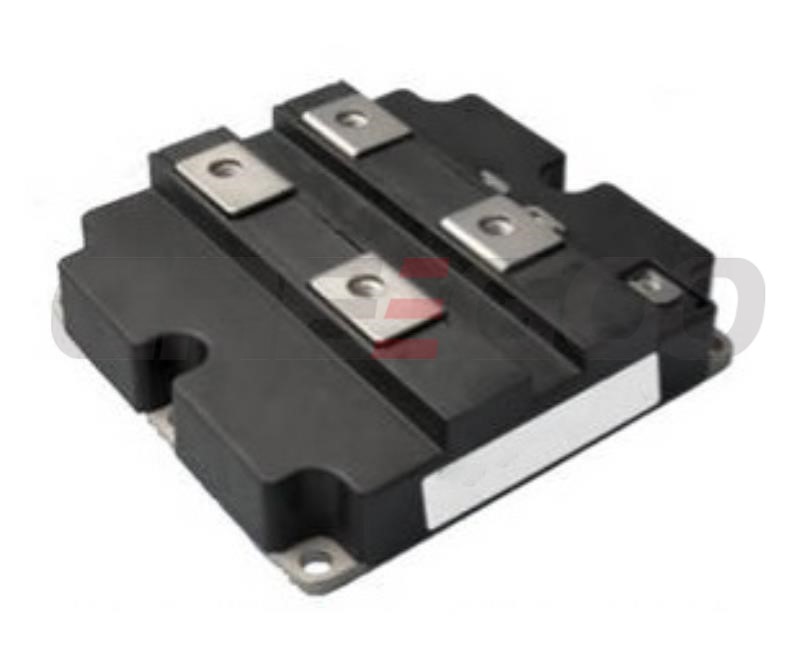

FZ1600R17KF6C-B2 IGBT Module

  1. Product Overview:

    • Model: FZ1600R17KF6C-B2
    • Type: 1700V IGBT module with low-loss IGBT of the second generation and soft emitter-controlled diode.

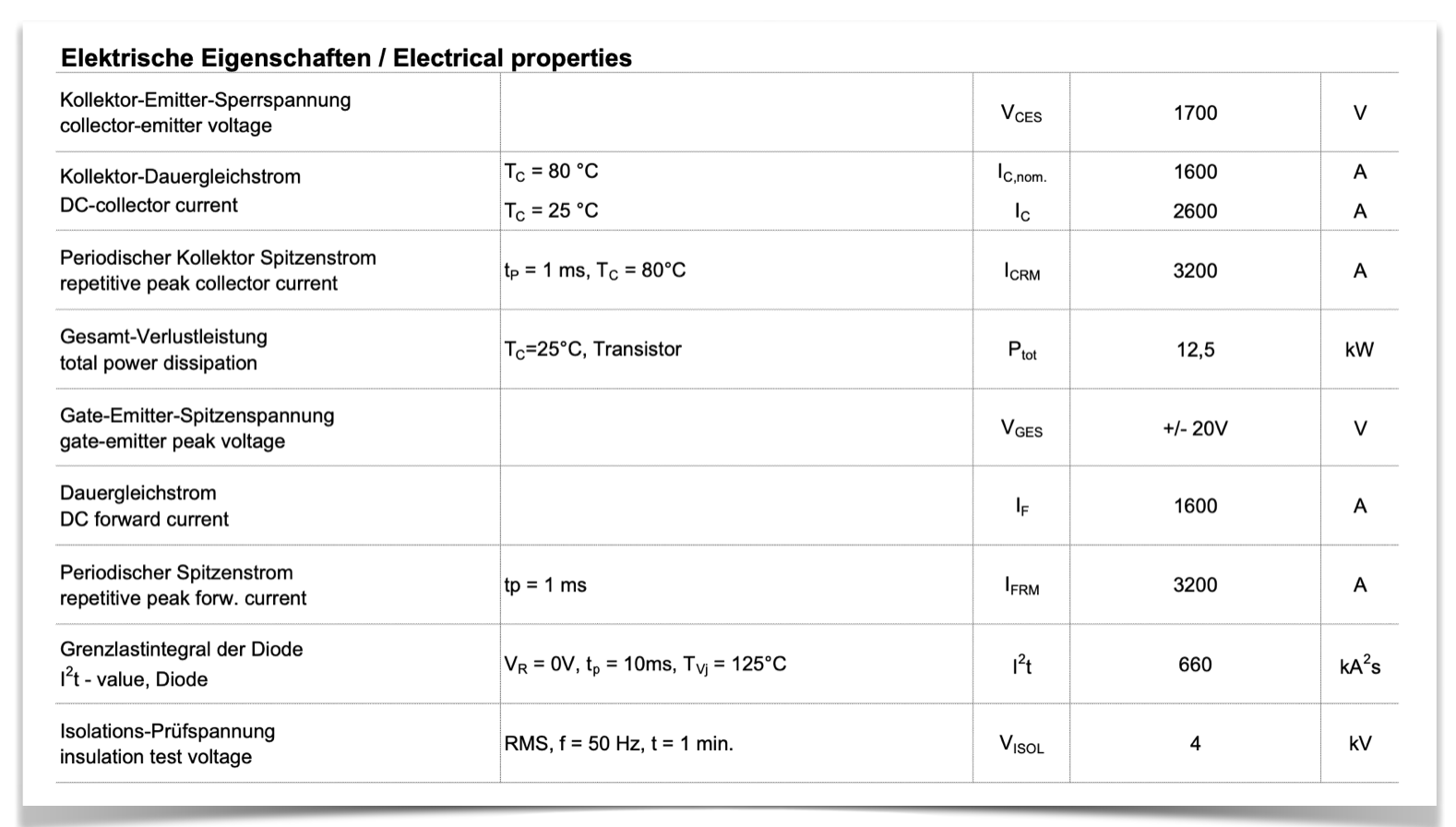

  2. Maximum Rated Values:

    • Collector-Emitter Voltage (VCES): 1700V
    • Continuous DC Collector Current (IC nom): 1600A (TC = 80°C, Tvj max = 150°C), 2600A (TC = 25°C, Tvj max = 150°C)
    • Repetitive Peak Collector Current (ICRM): 3200A
    • Total Power Dissipation (Ptot): 12.5kW (TC = 25°C, Tvj max = 150°C)
    • Gate-Emitter Peak Voltage (VGES): ±20V

  3. Characteristic Values:

    • Collector-Emitter Saturation Voltage (VCE sat): 2.60V (typical, IC = 1600A, VGE = 15V, Tvj = 25°C), 3.10V (maximum, Tvj = 125°C)
    • Gate Threshold Voltage (VGEth): 4.5V (minimum), 5.5V (typical), 6.5V (maximum)
    • Gate Charge (QG): 19.0µC
    • Internal Gate Resistor (RGint): 0.66Ω
    • Input Capacitance (Cies): 105nF
    • Reverse Transfer Capacitance (Cres): 5.30nF
    • Collector-Emitter Cut-off Current (ICES): 0.04mA (minimum), 3.0mA (maximum)
    • Gate-Emitter Leakage Current (IGES): 400nA

  4. Dynamic Characteristics:

    • Turn-on Delay Time (td on): 0.30µs
    • Rise Time (tr): 0.19µs
    • Turn-off Delay Time (td off): 1.20µs
    • Fall Time (tf): 0.15µs (Tvj = 25°C), 0.16µs (Tvj = 125°C)

  5. Energy Loss:

    • Turn-on Energy Loss (Eon): 430mJ
    • Turn-off Energy Loss (Eoff): 670mJ

  6. Short Circuit Behavior:

    • Short Circuit Current (ISC): 6400A (Tvj = 125°C, tP ≤ 10 µs)
Specification

IGBT Silicon Modules

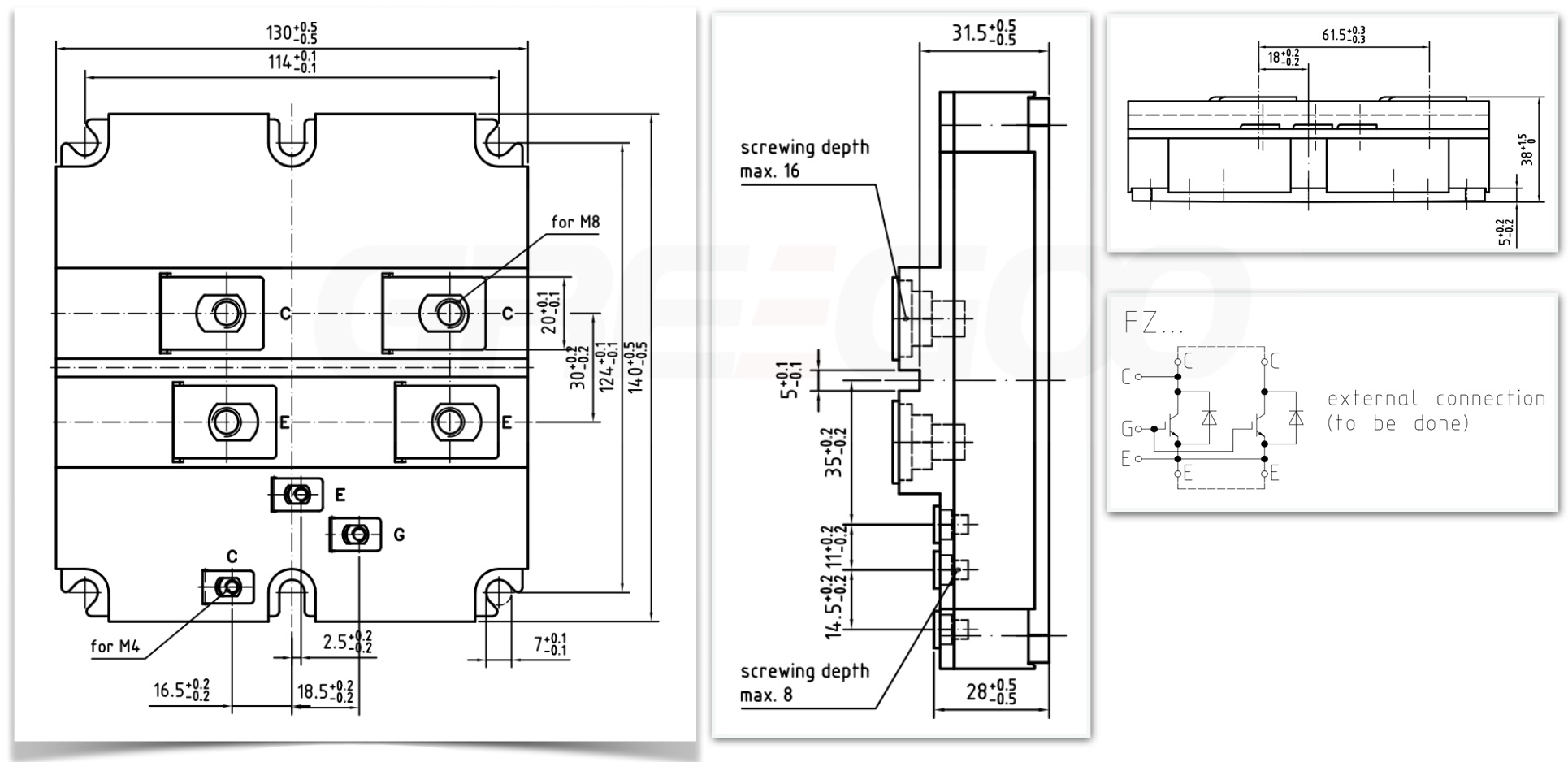

Dimension
