DF60LA160 DF60LB160 DF75LA160 DF75LB160 DF100LA160 DF100LB160 Three phase Diode

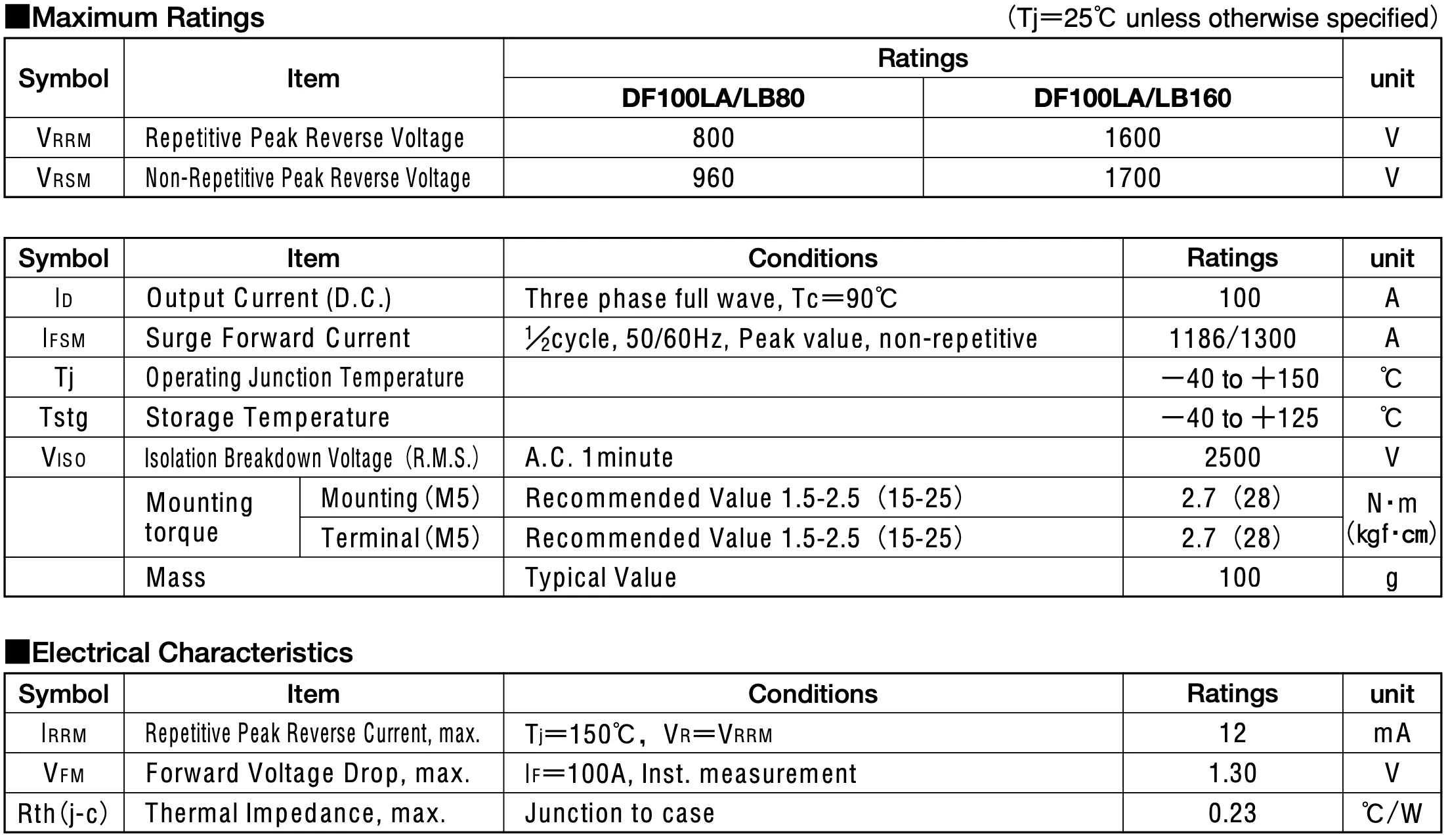

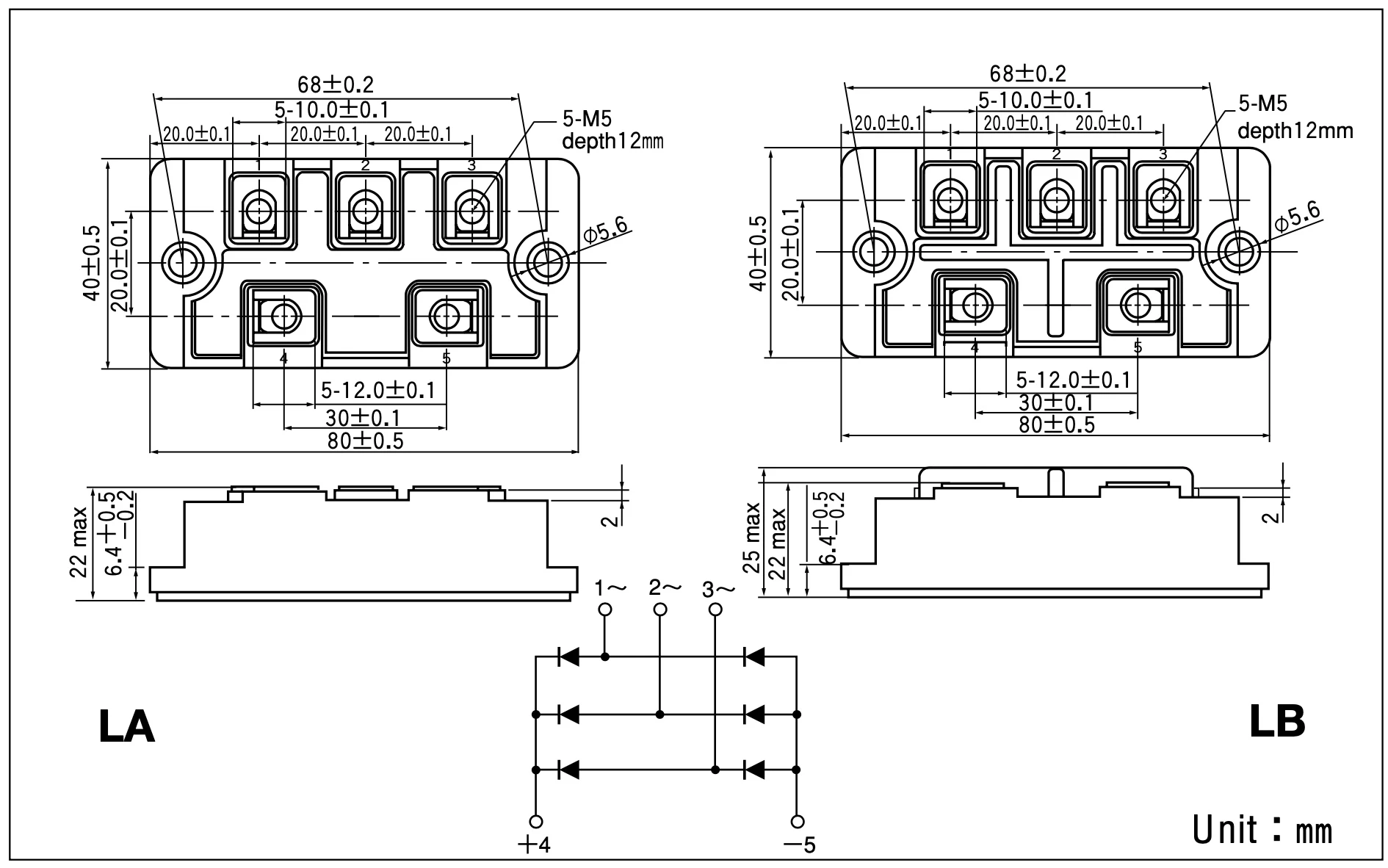

Power Diode Module DF60LA/LB, DF75LA/LB, DF100LA/LB are designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction output DC current is 60Amp (Tc=111℃) Repetitive peak reverse voltage is up to 1600V.
Features：
TjMAX= =150℃
Isolated Mounting Base
Applications：
AC. DC Motor Drive/AVR/Switching－for three phase rectification
Need more information?
Contact us to request pricing, availability and customization options.
