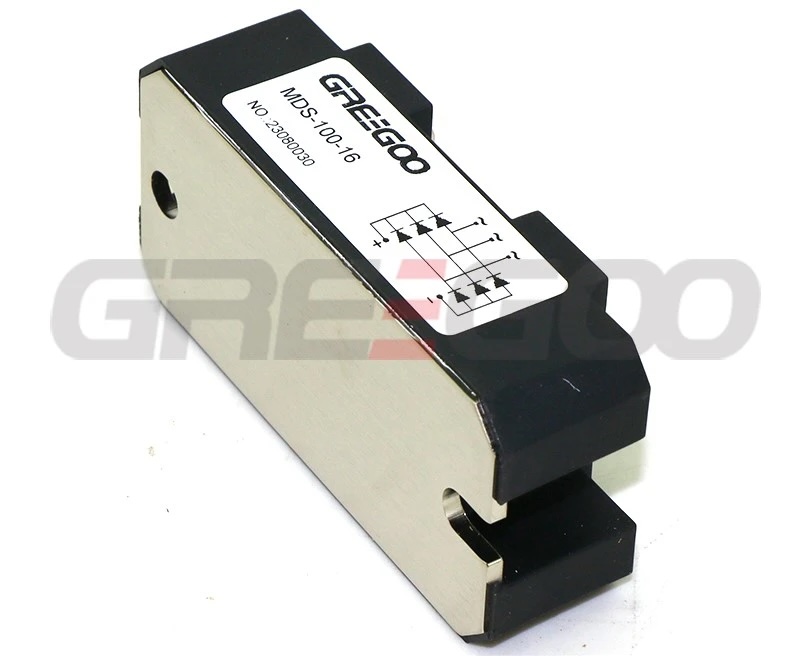

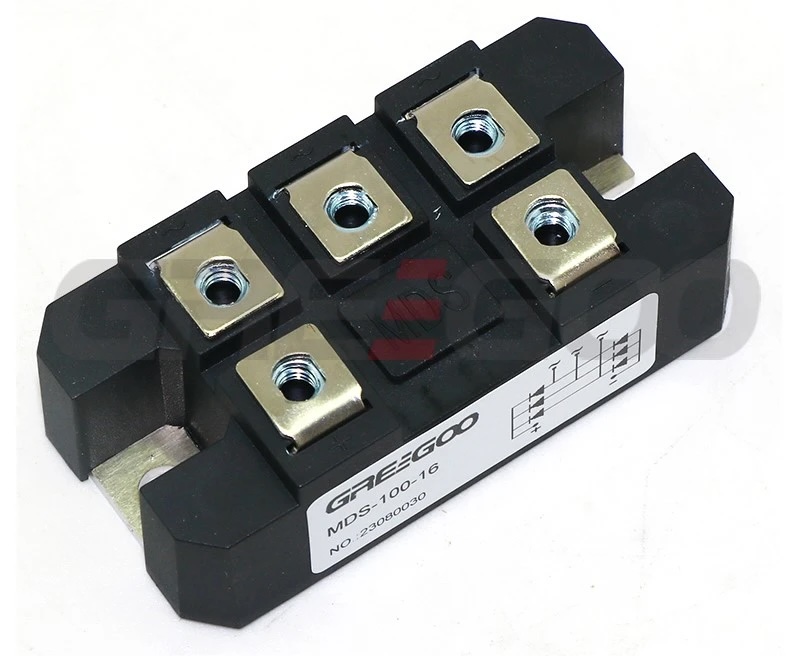

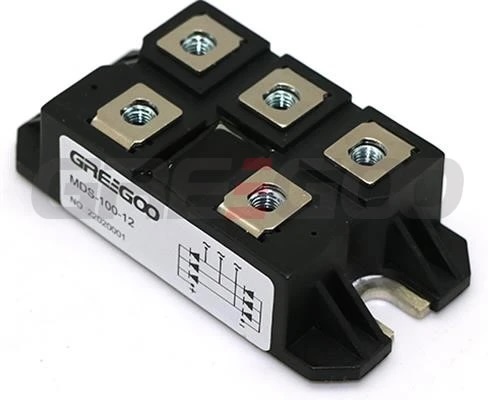

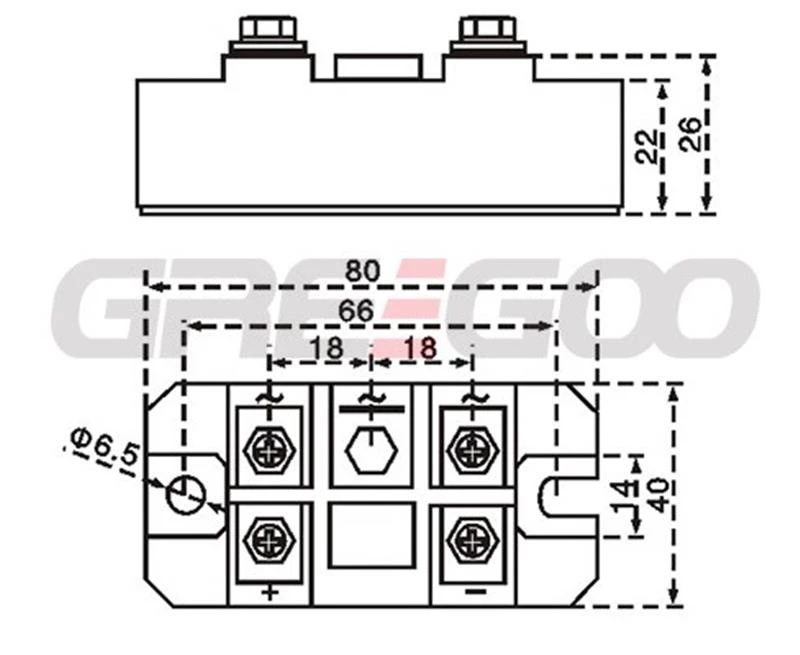

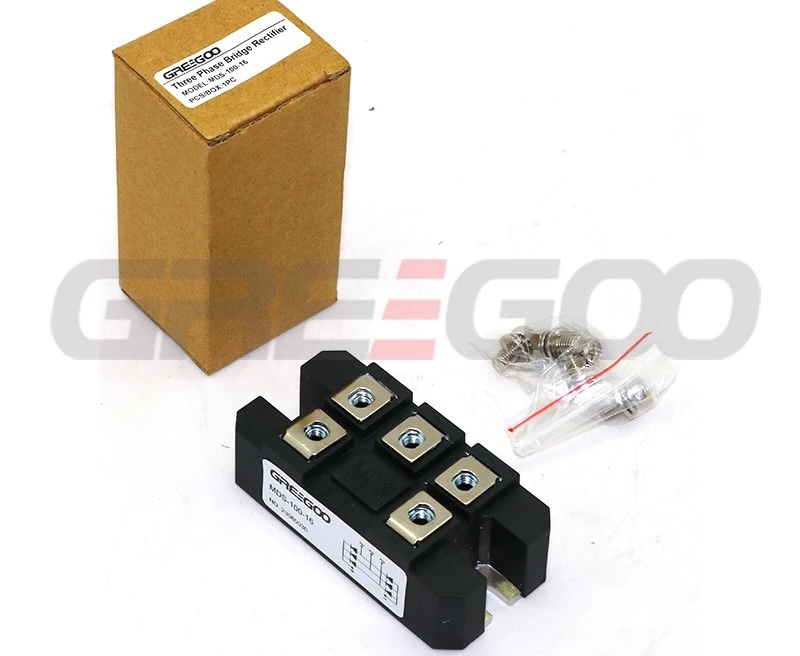

50-100A three phase bridge rectifier module
Home Products Diode Bridge ModuleSingle and 3 phase Diode Bridge module50-100A three phase bridge rectifier module
50-100A three phase bridge rectifier module
Features：
Isolated mounting base 2500V
Solder joint technology
Space and weight savings
Typical Applications
DC Power supplies for equipments.
DC supply for PWM inverter
Inverter Welder
| VRSM | IDAV(Tcase= 100 ℃,) | ||
| VRRM | 50A | 75A | 100A |
| 600V | MDS-50-06F2 | MDS-75-06F2 | MDS-100-06F2 |
| 800V | MDS-50-08F2 | MDS-75-08F2 | MDS-100-08F2 |
| 1200V | MDS-50-12F2 | MDS-75-12F2 | MDS-100-12F2 |
| 1400V | MDS-50-14F2 | MDS-75-14F2 | MDS-100-14F2 |
| 1600V | MDS-50-16F2 | MDS-75-16F2 | MDS-100-16F2 |
| 1800V | MDS-50-18F2 | MDS-75-18F2 | MDS-100-18F2 |
50-100A three phase bridge rectifier module
|
SYMBOL |
CHARACTERISTIC |
TEST CONDITIONS |
Tj(°C ) |
VALUE |
UNIT |
||
|
Min |
Type |
Max |
|||||
|
Io |
DC output current |
Single-phase full wave rectifying circuit, Tc=100°C |
150 |
|
|
50 |
A |
|
Vrrm |
Repetitive peak reverse voltage |
Vrrm tp=10ms Vrsm= Vrrm 100V |
150 |
600 |
|
1800 |
V |
|
IRRM |
Repetitive peak current |
at Vrrm |
150 |
|
|
4 |
mA |
|
Ifsm |
Surge forward current |
10ms half sine wave Vr=0.6Vrrm |
150 |
|
|
1.0 |
KA |
|
I2t |
I2T for fusing coordination |
|
|
5.0 |
A2s*103 |
||
|
Vfo |
Threshold voltage |
|
150 |
|
|
0.8 |
V |
|
rF |
Forward slop resistance |
|
|
9.0 |
mQ |
||
|
Vfm |
Peak forward voltage |
Ifm=75A |
25 |
|
|
1.25 |
V |
|
Rth(j-c) |
Thermal resistance Junction to case |
Single side cooled |
|
|
|
0.24 |
°C /W |
|
Rth(c-h) |
Thermal resistance case to heatsink |
Single side cooled |
|
|
|
0.15 |
°C /W |
|
Viso |
Isolation voltage |
50Hz,R.M.S,t=1min,liso：1 mA(max) |
|
2500 |
|
|
V |
|
Fm |
Terminal connection torque(M5) |
|
|
|
4 |
|
N・m |
|
Mounting torque(M6) |
|
|
|
6 |
|
N・m |
|
|
Tstg |
Stored temperature |
|
|
-40 |
|
125 |
°C |
