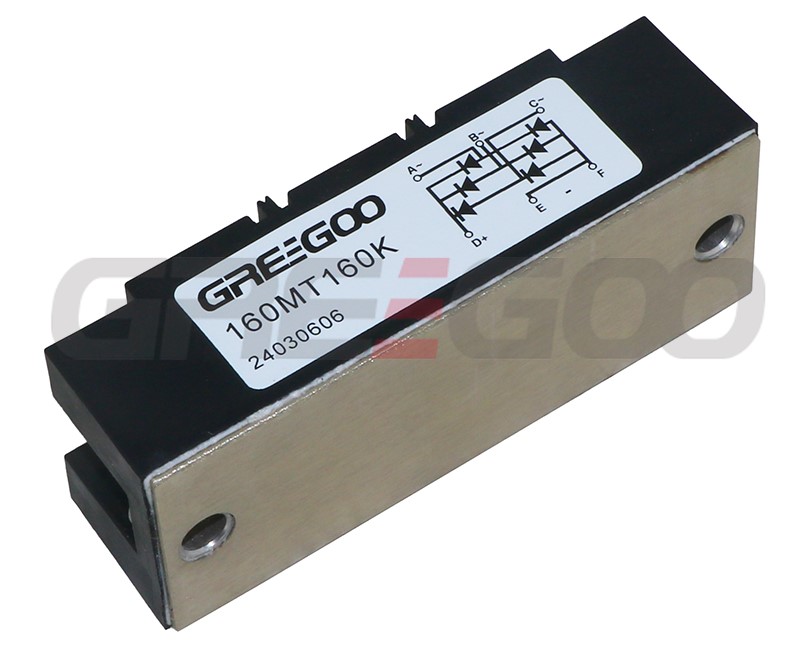

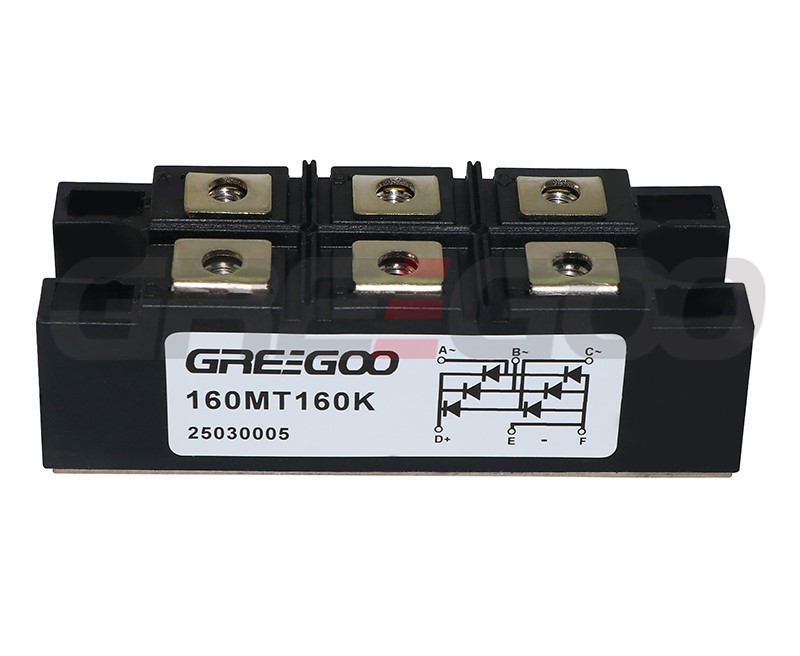

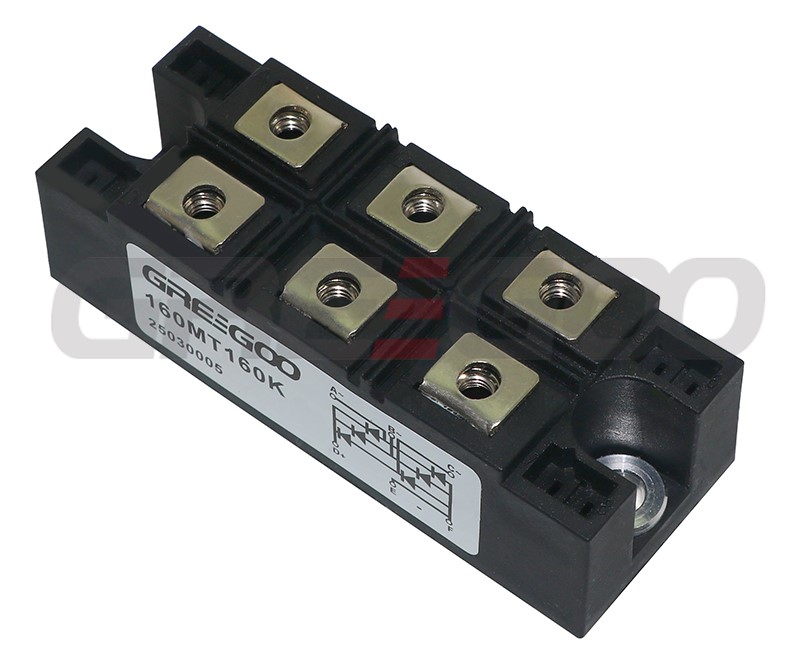

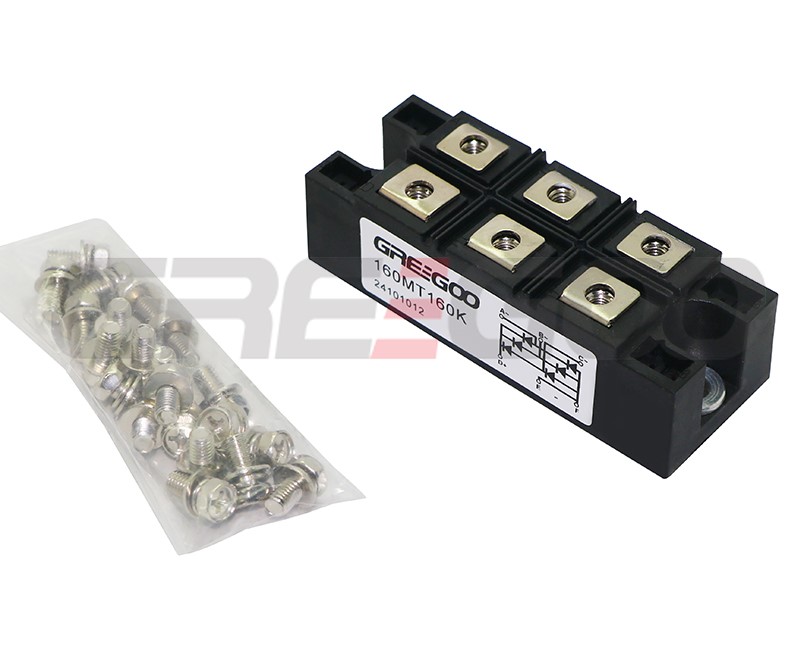

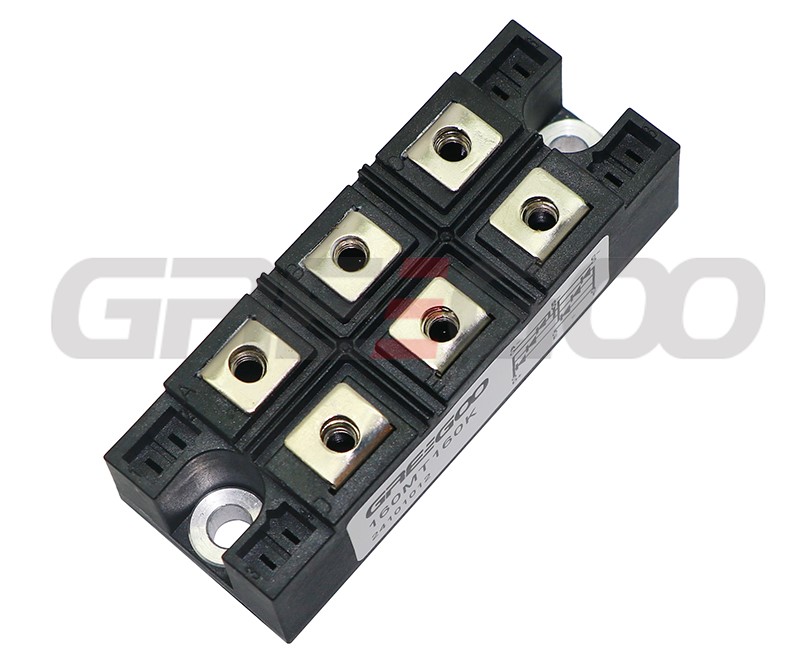

160MT16K 160MT160K 160MT12K three phase bridge power module
FEATURES
• Package fully compatible with the industry standard power modules
• High thermal conductivity package, electrically insulated case
• Excellent power volume ratio, outline for easy connections to power transistor and IGBT modules
• 4000 VRMS isolating voltage
• Designed and qualified for industrial level
A range of extremely compact, encapsulated three phase bridge rectifiers offering efficient and reliable operation. They are intended for use in general purpose and heavy duty applications.
| Equal to | Voltage Code | VRRM/VDRM (V) | VRSM (V) | IRRM (mA) |
| 160MT08K | 8 | 800 | 900 | 5 |

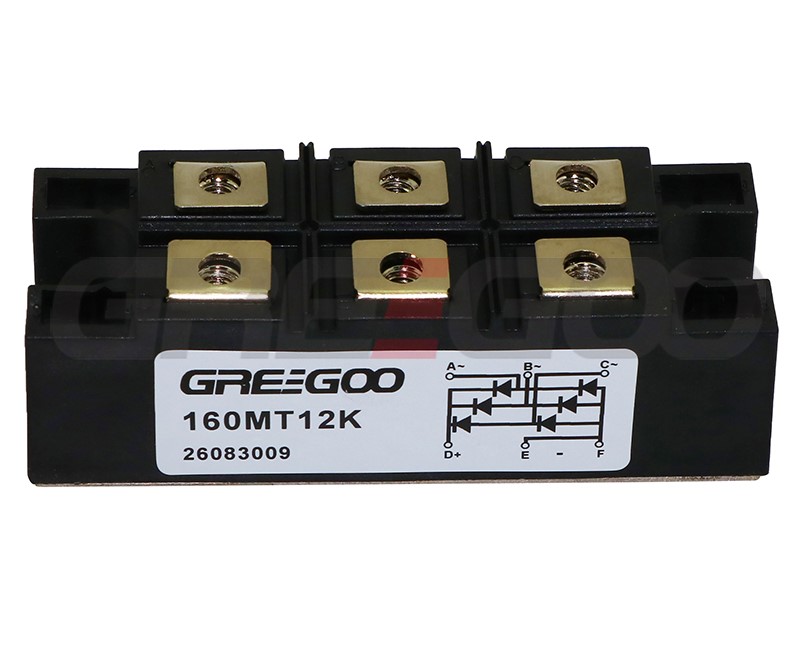

| 160MT12K | 12 | 1200 | 1300 | 5 |
| 160MT14K | 14 | 1400 | 1500 | 5 |
| 160MT16K | 16 | 1600 | 1700 | 5 |
| 160MT18K | 18 | 1800 | 1900 | 5 |
| MAJOR RATINGS AND CHARACTERISTICS | |||
| SYMBOL | CHARACTERISTICS | VALUES | UNITS |
| 160MT.K | |||
| IO | 160(200) | A | |
| TC | 85(60) | °C | |
| IFSM | 50 Hz | 1430 | A |
| 60 Hz | 1500 | ||
| I2t | 50 Hz | 10200 | A2s |
| 60 Hz | 9300 | ||
| I2√t | 102000 | A2√s | |
| VRRM | Range | 800 to 1800 | V |
| TStg | Range | -40 to 150 | °C |
| TJ | -40 to 150 | ||
