Chopper IGBT Module

IGBT Chopper Modules are widely used in electric traction applications, such as subways, electric locomotives, trolleybuses, and battery-powered transport vehicles, for smooth, stepless speed control of DC motors. Greegoo's chopper IGBT module, compared to traditional series resistance voltage regulation methods, offer better starting and braking performance while eliminating the need for bulky DC contactors and power-consuming resistors. This significantly reduces energy consumption and improves overall efficiency.

Specification

Type	Vces (V)	Ic (A)	Vcesat (V)	Rthjc (K/W)	Housing	Infineon Equivalent	SEMIKRON Equivalent
G50GAL12T4	1200	50	2.30	0.46	G1	BSM50GAL120DN2	SKM50GAL12T4 SKM50GAL123D
G75GAL12T4	1200	75	2.30	0.39	G1	BSM75GAL120DN2	SKM75GAL12T4 SKM75GAL123D
G100GAL12T4	1200	100	2.30	0.31	G1	BSM100GAL120DLCK	SKM100GAL12T4 SKM100GAL123D
G150GAL12T4	1200	150	2.30	0.25	G1	FD150R12RT4	SKM150GAL12T4 SKM150GAL12V SKM150GAL123D SKM150GAL128D
G50GAR12T4	1200	50	2.30	0.46	G1	-	SKM50GAR12T4
G75GAR12T4	1200	75	2.30	0.39	G1	BSM75GAR120DN2	SKM75GAR12T4
G100GAR12T4	1200	100	2.30	0.31	G1	-	SKM100GAR12T3D
G150GAR12T4	1200	150	2.30	0.25	G1	DF150R12RT4	-
G100GAL17IE4	1700	100	2.30	0.14	G1	-	SKM100GB17E4, SKM145GAL176D
G150GAL12ST4G	1200	150	2.30	0.23	G2S	-	SKM150GAL123D
G200GAL12ST4	1200	200	2.30	0.15	G2S	-	SKM200GAL12T4 SKM200GAL123D
G300GAL12ST4	1200	300	2.30	0.11	G2S	-	SKM300GAL12T4 SKM300GAL123D SKM300GAL128D
G400GAL12ST4	1200	400	2.30	0.09	G2S	-	SKM400GAL12T4 SKM400GAL12V SKM400GAL128D
G150GAR12ST4G	1200	150	2.30	0.23	G2S	-	SKM150GAR123D
G200GAR12ST4	1200	200	2.30	0.15	G2S	-	SKM200GAR123D
G300GAR12ST4	1200	300	2.30	0.11	G2S	-	SKM300GAR123D

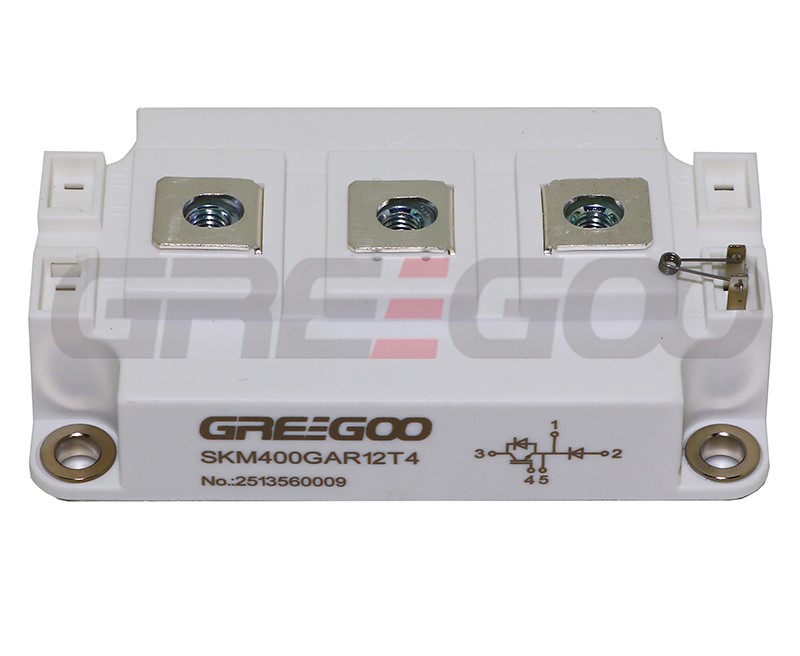

G400GAR12ST4	1200	400	2.30	0.09	G2S	-	SKM400GAR12T4 SKM400GAR12V SKM400GAR128D
G200GAL12SE4	1200	200	2.10	0.14	G2S	-	SKM200GAL12E4 SKM200GAL126D
G300GAL12SE4	1200	300	2.10	0.09	G2S	-	SKM300GAL12E4
G400GAL12SE4	1200	400	2.10	0.08	G2S	-	SKM400GAL12E4 SKM400GAL124D SKM400GAL126D
G200GAR12SE4	1200	200	2.10	0.14	G2S	-	SKM200GAR12E4
G300GAR12SE4	1200	300	2.10	0.09	G2S	-	SKM300GAR12E4
G400GAR12SE4	1200	400	2.10	0.08	G2S	-	SKM400GAR12E4 SKM400GAR124D
G150GAL12SS4	1200	150	3.00	0.23	G2S	-	SKM200GAL125D
G200GAL12SS4	1200	200	3.00	0.15	G2S	-	SKM300GAL125D
G300GAL12SS4	1200	300	3.00	0.09	G2S	-	SKM400GAL125D
G150GAR12SS4	1200	150	3.00	0.23	G2S	-	SKM200GAR125D
G200GAR12SS4	1200	200	3.00	0.15	G2S	-	SKM300GAR125D
G300GAR12SS4	1200	300	3.00	0.09	G2S	-	SKM400GAR125D
G100GAL12IT4G	1200	100	2.30	0.29	G2	BSM100GAL120DN2	-
G150GAL12IT4G	1200	150	2.30	0.23	G2	BSM150GAL120DN2	-
G200GAL12IT4	1200	200	2.30	0.15	G2	BSM200GAL120DN2	-
G100GAR12IT4G	1200	100	2.30	0.29	G2	BSM100GAR120DN2	-
G150GAR12IT4G	1200	150	2.30	0.23	G2	BSM150GAR120DN2	-
G200GAR12IT4	1200	200	2.30	0.15	G2	BSM200GAR120DN2	-
G150GAL12IE4	1200	150	2.10	0.17	G2	BSM150GAL120DLC	-
G200GAL12IE4	1200	200	2.10	0.14	G2	BSM200GAL120DLC FD200R12KE3	-
G300GAL12IE4	1200	300	2.10	0.09	G2	BSM300GAL120DLC FD300R12KE3	-
G400GAL12IE4	1200	400	2.10	0.08	G2	FD400R12KE3	-
G200GAR12IE4	1200	200	2.10	0.14	G2	DF200R12KE3	-
G300GAR12IE4	1200	300	2.10	0.09	G2	BSM300GAR120DLC DF300R12KE3	-
G400GAR12IE4	1200	400	2.10	0.08	G2	DF400R12KE3	-
G300GAL12IS4	1200	300	3.00	0.09	G2	FD300R12KS4	-
G300GAR12IS4	1200	300	3.00	0.09	G2	DF300R12KS4	-

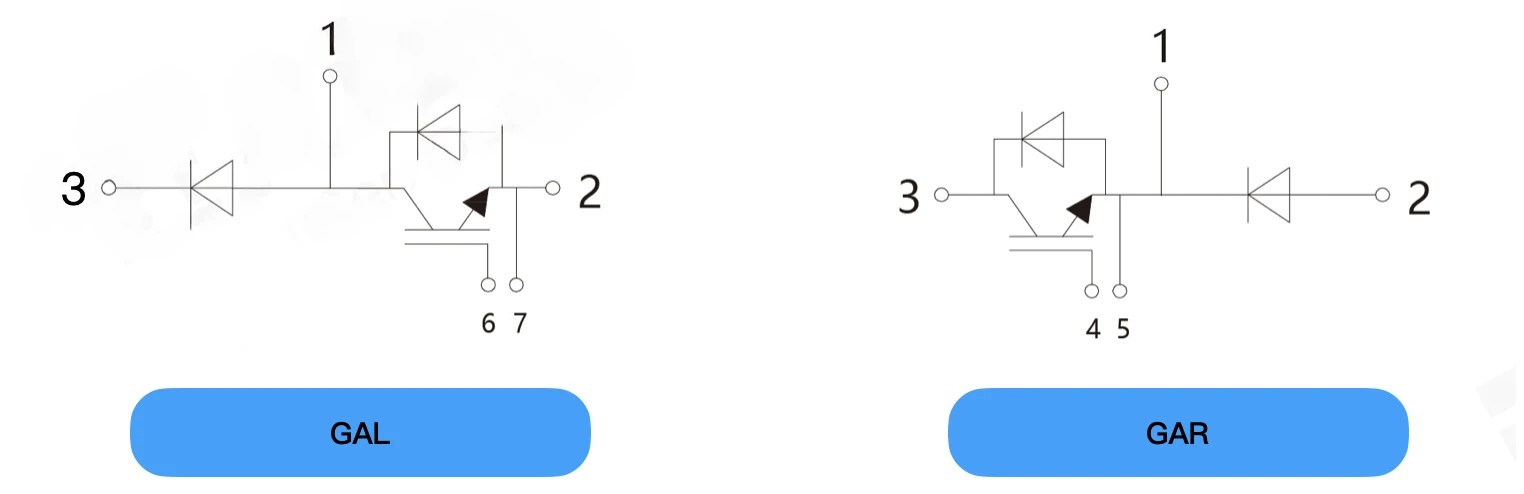

Diagram
