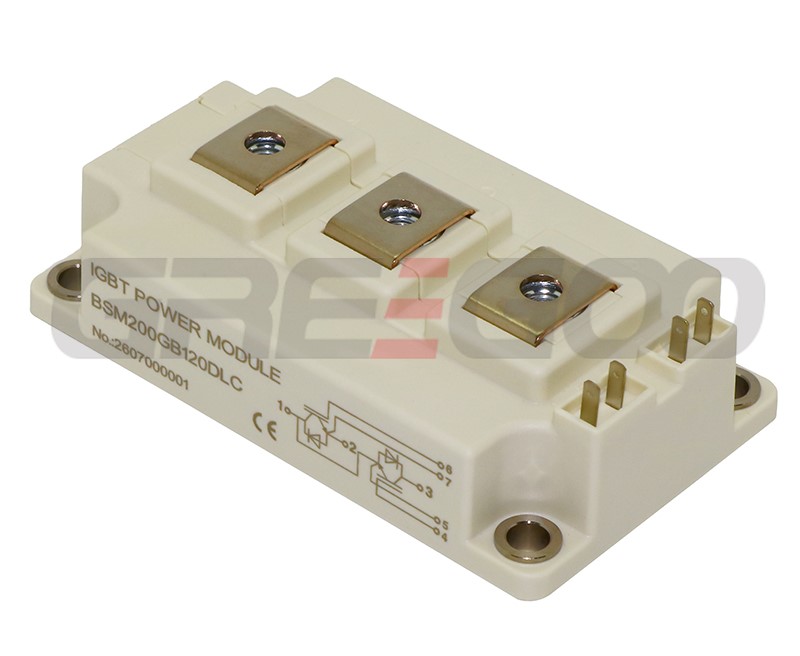

Half Bridge IGBT Module

Half-bridge IGBT modules are widely used in power electronics due to their flexibility, excellent electrical performance, and high reliability. They provide an efficient solution for variable frequency drives (VFDs) with optimized switching characteristics, including soft switching and reduced power loss. Equipped with integrated gate resistors and built-in overvoltage and overcurrent protection, these modules ensure safe and stable operation.

Common applications include induction heating power supplies, inverter welding machines, uninterruptible power supplies (UPS), and variable frequency speed control systems. Their advanced design makes them ideal for high-efficiency and high-performance power conversion solutions.

Specification

Type	Vces (V)	Ic (A)	Vcesat (V)	Rthjc (K/W)	Housing	Infineon Equivalent	SEMIKRON Equivalent
G50GB06D	650	50	1.9	0.50	G1	BSM50GB60DLC	SKM50GB063D
G75GB06D	650	75	1.9	0.39	G1	BSM75GB60DLC	SKM75GB063D
G100GB06D	650	100	1.9	0.30	G1	BSM100GB60DLC	SKM100GB063D
G150GB06D	650	150	1.9	0.21	G1	BSM150GB60DLC	SKM145GB066D
G200GB06D	650	200	1.9	0.16	G1	BSM200GB60DLC	SKM195GB066D
G200GB06IE4	650	200	1.9	0.16	G2	FF200R06KE3	SKM200GB063D
G300GB06IE4	650	300	1.9	0.11	G2	FF300R06KE3, BSM300GB60DLC	SKM300GB063D SKM300GB066D
G400GB06IE4	650	400	1.9	0.08	G2	FF400R06KE3, FF400R07KE4	SKM400GB066D
G200GB06SE4	650	200	1.9	0.16	G2S	-	SKM200GB063D
G300GB06SE4	650	300	1.9	0.11	G2S	-	SKM300GB063D SKM300GB066D
G400GB06SE4	650	400	1.9	0.09	G2S	-	SKM400GB066D
G450GB06ME4	650	450	1.9	0.07	G6	FF450R06ME3	-
G600GB06ME4	650	600	1.9	0.05	G6	FF600R06ME3	-
G100GB12T4	1200	40	2.30	0.60	G1	BSM35GB120DN2 BSM35GB120DLC	-
G50GB12T4	1200	50	2.30	0.46	G1	FF50R12RT4, BSM50GB120DN2 BSM50GB120DLC	SKM50GB12T4 SKM50GB12V SKM50GB123D SKM50GB124D SKM50GB128D
G75GB12T4	1200	75	2.30	0.39	G1	FF75R12RT4, BSM75GB120DN2 BSM75GB120DLC	SKM75GB12T4 SKM75GB12V SKM75GB123D SKM75GB124D SKM75GB128D
G100GB12T4	1200	100	2.30	0.31	G1	FF100R12RT4, BSM100GB120DN2 BSM100GB120DLCK	SKM100GB12T4 SKM100GB12V SKM100GB123D SKM100GB124D SKM100GB128D
G150GB12T4	1200	150	2.30	0.23	G1	FF150R12RT4	SKM150GB12T4 SKM150GB12V SKM145GB123D SKM145GB128D
G100GB12T4G	1200	100	2.30	0.29	G2S	-	SKM100GB12T4G
G150GB12T4G	1200	150	2.30	0.23	G2S	-	SKM150GB12T4G SKM150GB12VG SKM150GB123D SKM150GB128D
G200GB12T4	1200	200	2.30	0.15	G2S	-	SKM200GB12T4 SKM200GB12V SKM200GB123D SKM200GB128D
G300GB12T4	1200	300	2.30	0.11	G2S	-	SKM300GB12T4 SKM300GB12V SKM300GB123D SKM300GB128D
G400GB12T4	1200	400	2.30	0.09	G2S	-	SKM400GB12T4 SKM400GB12V SKM400GB123D SKM400GB128D
G450GB12T4	1200	450	2.30	0.07	G2S	-	SKM450GB12T4
G200GB12TS4	1200	200	2.30	0.15	G2S	-	SKM200GB12D305 SKM200GB12D615
G200GBD12T4	1200	200	2.30	0.15	G2S	-	SKM200GBD12D6
G300GBD12T4	1200	300	2.30	0.11	G2S	-	SKM300GBD12T4
G150GB12SE4	1200	150	2.10	0.17	G2S	-	-
G200GB12SE4	1200	200	2.10	0.12	G2S	-	SKM200GB12E4 SKM200GB124D SKM200GB126D
G300GB12SE4	1200	300	2.10	0.09	G2S	-	SKM300GB12E4 SKM300GB124D SKM300GB126D
G400GB12SE4	1200	400	2.10	0.08	G2S	-	SKM400GB12E4 SKM400GB124D SKM400GB126D
G450GB12SE4	1200	450	2.10	0.07	G2S	-	SKM450GB12E4
G100GB12S4	1200	100	3.00	0.22	G1S	-	SKM100GB125DN
G150GB12S4	1200	150	3.00	0.23	G2S	-	-
G200GB12S4	1200	200	3.00	0.15	G2S	-	SKM200GB125D
G300GB12S4	1200	300	3.00	0.09	G2S	-	SKM300GB125D
G400GB12S4	1200	400	3.00	0.15	G2S	-	SKM400GB125D
G100GB12T4G	1200	100	2.30	0.29	G2	BSM100GB120DN2	-
G150GB12T4G	1200	150	2.30	0.23	G2	FF150R12KT3G, BSM150GB120DN2	-
G200GB12T4G	1200	200	2.30	0.15	G2	FF200R12KT3 FF200R12KT4 BSM200GB120DN2	-
G300GB12T4	1200	300	2.30	0.11	G2	FF300R12KT3/4	-
G400GB12T4	1200	400	2.30	0.09	G2	FF400R12KT3	-
G450GB12T4	1200	450	2.30	0.07	G2	FF450R12KT4	-
G100GB12IE4	1200	100	2.10	0.21	G2	BSM100GB120DLC	-
G150GB12IE4	1200	150	2.10	0.17	G2	FF150R12KE3G, BSM150GB120DLC	-
G200GB12IE4	1200	200	2.10	0.14	G2	FF200R12KE3 FF200R12KE4 BSM200GB120DLC	-
G300GB12IE4	1200	300	2.10	0.09	G2	FF300R12KE3 FF300R12KE4, BSM300GB120DLC	-
G400GB12IE4	1200	400	2.10	0.08	G2	FF400R12KE3	-
G450GB12IE4	1200	450	2.10	0.07	G2	FF450R12KE4	SKM450GB12IE4
G100GB12IS4	1200	100	2.30	0.22	G2	FF100R12KS4	-
G150GB12IS4	1200	150	2.30	0.23	G2	FF150R12KS4	-
G200GB12IS4	1200	200	2.30	0.15	G2	FF200R12KS4	-
G300GB12IS4	1200	300	2.30	0.09	G2	FF300R12KS4	-
G225GB12ME4	1200	225	2.10	0.11	G6	FF225R12ME4 FF225R12ME3	-
G300GB12ME4	1200	300	2.10	0.09	G6	FF300R12ME4 FF300R12ME3	-
G450GB12ME4	1200	450	2.10	0.07	G6	FF450R12ME4 FF450R12ME3	-
G600GB12ME4	1200	600	2.10	0.05	G6	FF600R12ME4 FF600R12ME3	-
G50GB17E4	1700	50	2.30	0.46	G1	BSM50GB170DN2	SKM75GB176D SKM75GB173D
G75GB17E4	1700	75	2.30	0.39	G1	BSM75GB170DN2	SKM75GB17E4, SKM100GB176D SKM100GB173D
G100GB17E4	1700	100	2.30	0.14	G1	-	SKM100GB17E4, SKM145GB176D
G150GB17E4	1700	150	2.30	0.11	G1	-	SKM150GB17E4
G100GB17IE4	1700	100	2.30	0.12	G2	BSM100GB170DN2 BSM100GB170DLC	-
G150GB17IE4	1700	150	2.30	0.12	G2	FF150R17KE4, BSM150GB170DN2 BSM150GB170DLC	-
G200GB17IE4	1700	200	2.30	0.08	G2	FF200R17KE4 FF200R17KE3, BSM200GB170DLC	-
G300GB17IE4	1700	300	2.30	0.05	G2	FF300R17KE4 KFF300R17E3	-
G100GB17IE4	1700	100	2.30	0.16	G2	BSM100GB170DN2 BSM100GB170DLC	-
G150GB17IE4	1700	150	2.30	0.12	G2	FF300R06KE3, BSM300GB60DLC	-
G200GB17IE4	1700	200	2.30	0.08	G2	FF400R06KE3, FF400R07KE4	-
G300GB17IE4	1700	300	2.30	0.05	G2	FF300R17KE4 FF300R17KE3	-
G225GB17ME4	1700	225	2.30	0.07	G6	FF225R17ME4 FF225R17ME3	-
G300GB17ME4	1700	300	2.30	0.04	G6	FF300R17ME4 FF300R17ME3	-
G450GB17ME4	1700	450	2.30	0.04	G6	FF450R17ME4 FF450R17ME3	-
G600GB17ME4	1700	600	2.30	0.03	G6	FF600R17ME4 FF600R17ME3	-

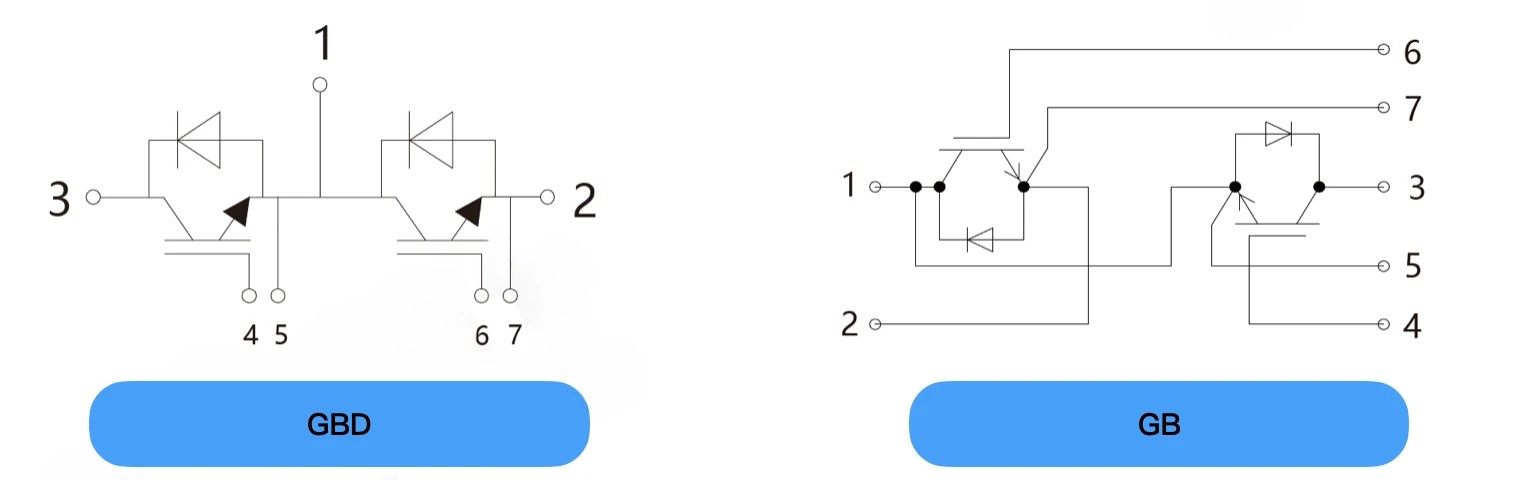

Diagram

GB GBD half bridge module
