Product details

Four-pack IGBT Module

Designed for high efficiency and reliability, this module features high power density, a well-developed Easy module concept, and an optional integrated temperature sensor for real-time monitoring. Its low parasitic inductance design improves switching efficiency, while compliance with RoHS standards ensures environmental safety. The compact design optimizes space usage, reduces development time, and lowers costs. Additionally, its flexible configuration and fast, reliable, and cost-effective assembly process make it an ideal choice for various power application.

Specification

Type	Vces (V)	Ic (A)	Vcesat (V)	Rthjc (K/W)	Housing	Infineon Equivalent
G50GH07W1H3	650	50	1.80	0.60	E1	F4-50R07W1H3_B11A
G75GH07W1H3	650	75	1.80	0.45	E1	F4-75R07W1H3_B11A
G50GH12IS4	1200	50	3.00	0.44	G4	F4-50R12KS4
G75GH12IS4	1200	75	3.00	0.34	G4	F4-75R12KS4
G100GH12IS4	1200	100	3.00	0.29	G5	F4-100R12KS4
G150GH12IS4	1200	150	3.00	0.19	G5	F4-150R12KS4

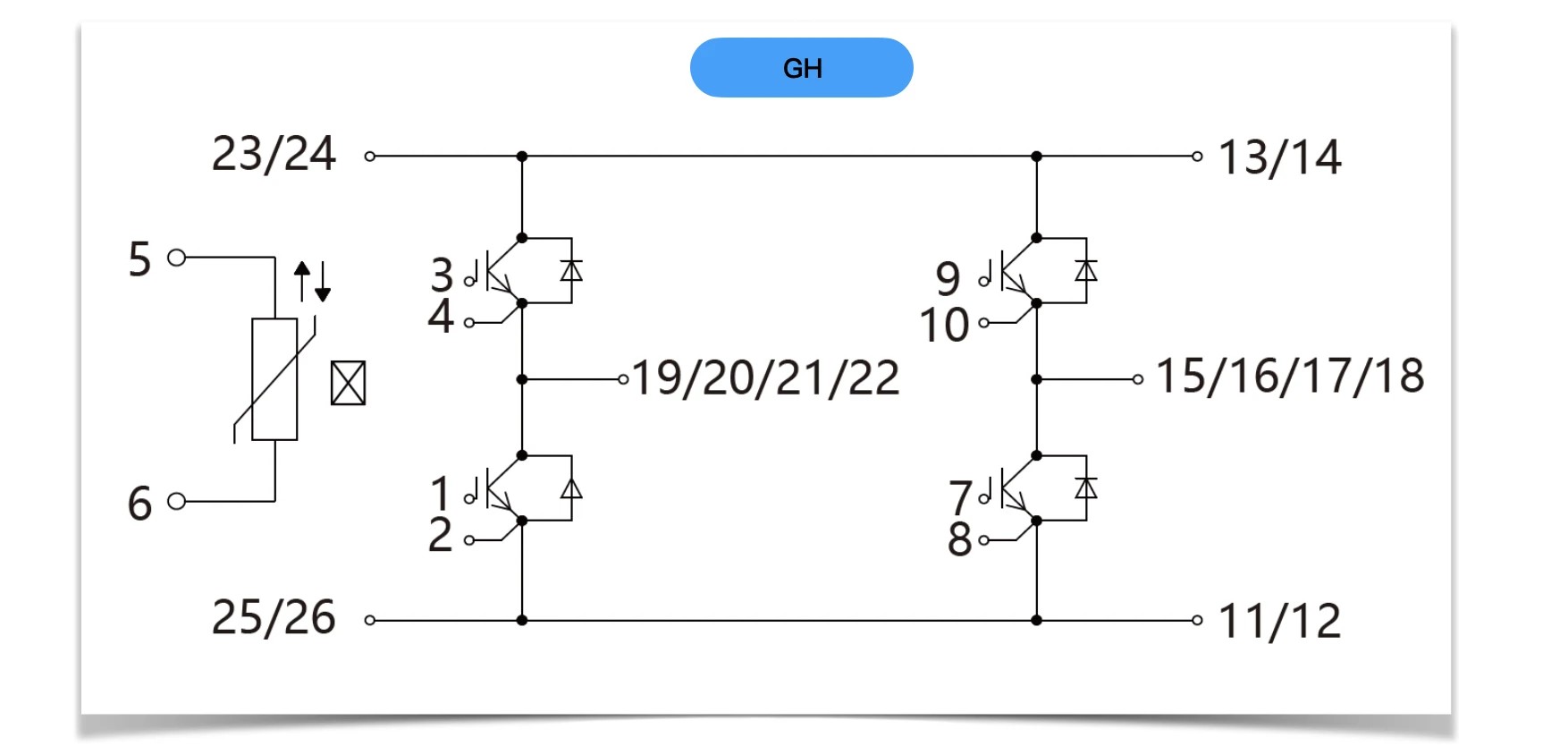

Diagram

four pack module
