60A to 150A Solid State Relay

The main differences between Solid State Relays (SSR) and Electromechanical Relays (EMR) lie in their structure and performance. SSRs have no mechanical contacts and use semiconductor devices for switching, offering longer lifespan, faster switching speeds, and noiseless operation, making them suitable for high-frequency operations and harsh environments. EMRs rely on electromagnetic coils to drive mechanical contacts, resulting in slower switching speeds, shorter lifespan, and noise during operation, and they are more sensitive to vibration and shock. SSRs consume less power and are ideal for applications requiring frequent switching, such as heating and motor control, while EMRs are suitable for general switching applications, especially where electrical isolation is needed.

A margin should be left when selecting the voltage and current of the solid state relay. For resistive load: the current is selected according to 2.5~4 times the load current, and the voltage is selected according to 2~2.5 times the load power. Inductive load: current is selected according to 3-7 times load current, voltage is selected according to 2.5-3 times load voltage.

TRIAC Output SSR: Simple, cost-effective, and suitable for low to medium power AC load switching applications, particularly in consumer or light industrial settings. Limitations include lower performance and durability under high current/voltage and inability to regulate current.

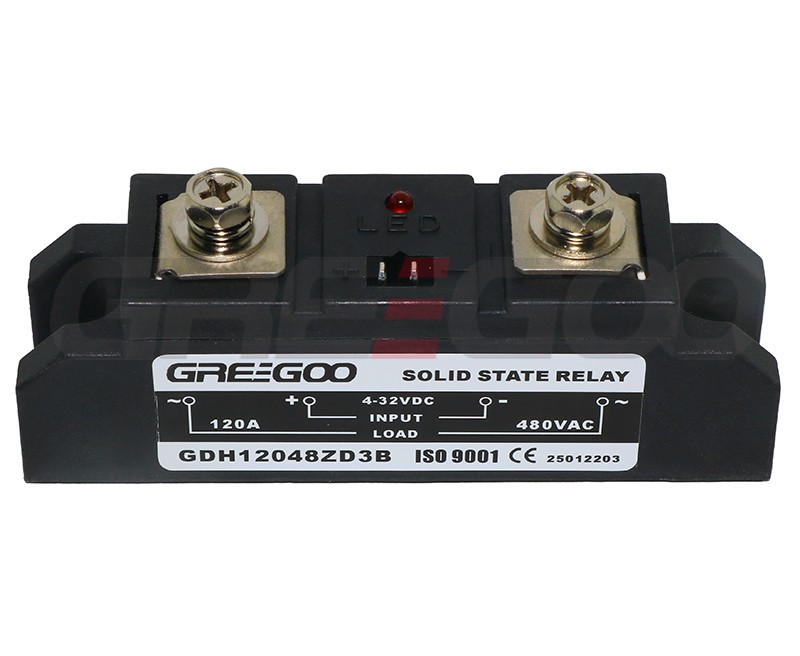

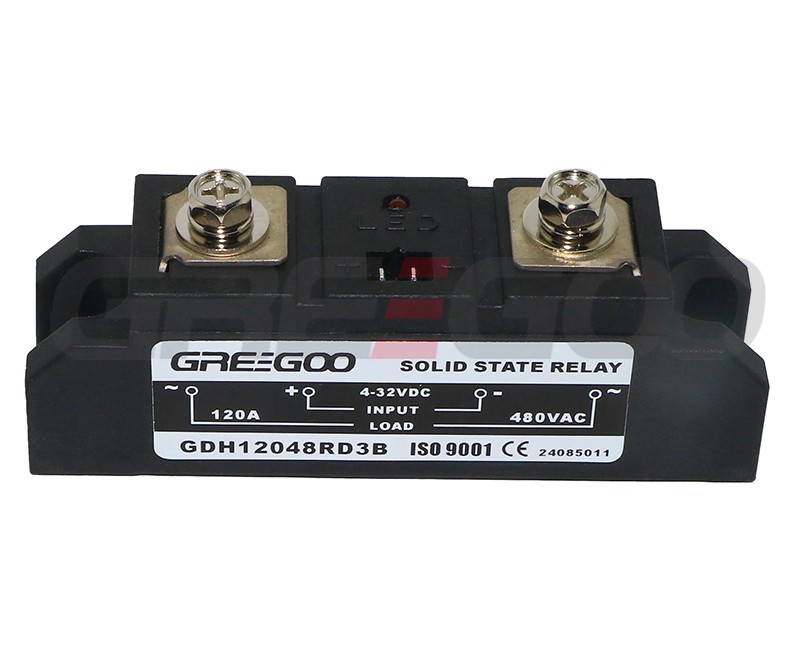

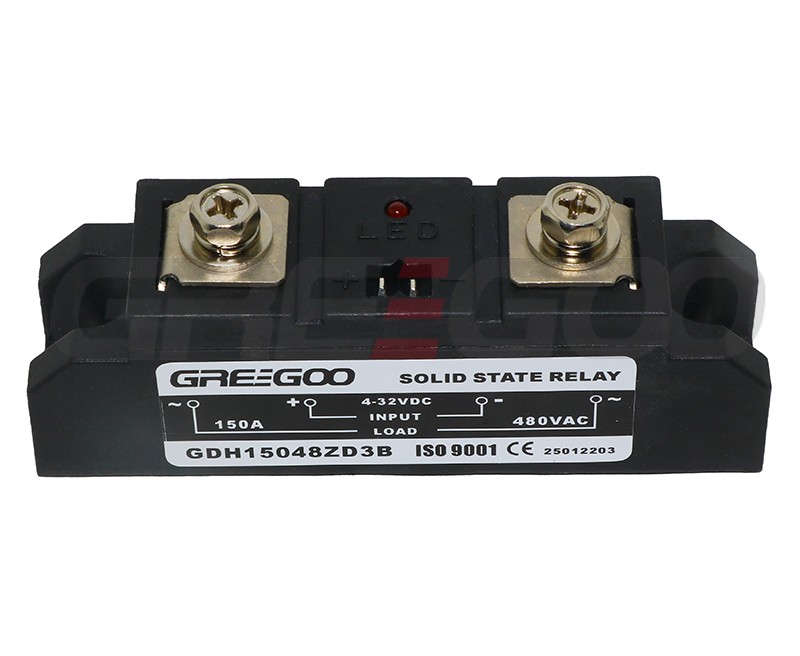

SCR Output SSR: Uses dual SCRs, designed for high-power, high-voltage, and heavy-load applications with better thermal management, higher reliability, and longer lifespan. Supports both zero-crossing and random switching modes, and can regulate current, making it ideal for industrial applications but at a higher cost.
