Product Details

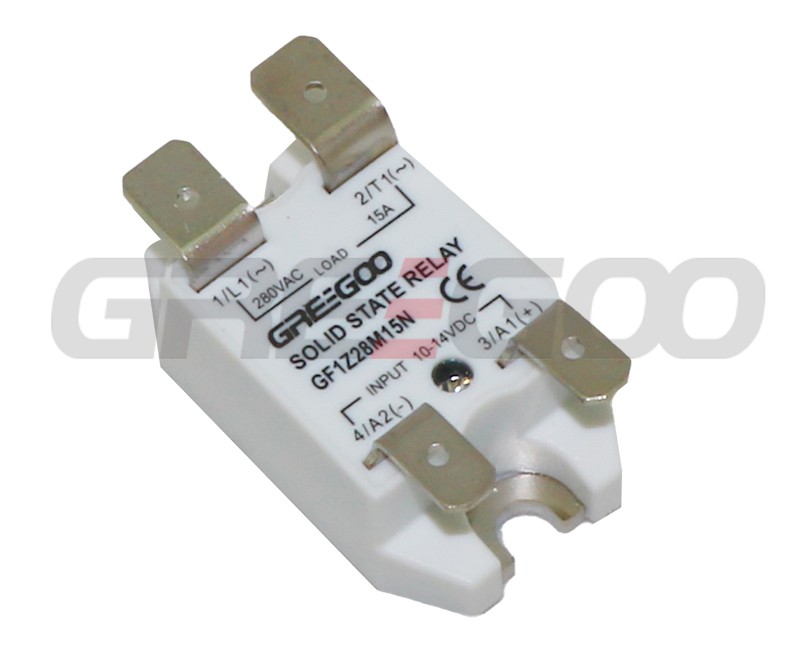

Compact FASTON terminals ac switching solid state relay

1-Phase, 15A and 25A, 230VAC with LED status indicator, FASTON terminals connection, easy to use, compact design, miniature package for space-demanding applications.

Greegoo's GF1 series solid state relay provides a compact solid state switching solution suited for confined spaces. Long life time is ensured by the use of assembly technology that reduces stresses on the power semiconductors. A green LED indicates presence of the control voltage. FASTON terminals enable fast installation.

AC switching Solid State Relay
Switching through back to back thyristors
Long lifetime through reduced stress on output chip
Operational ratings: up to 280 VAC, 25A
Control voltage: 5 VDC, 12 VDC, 24 VDC
LED for control status indication
Opto isolation input to output 3750 VAC
Pre-attached thermal interface to SSR backplate

Model	Rated load current	Control voltage	Output Voltage	Switching type	Termination

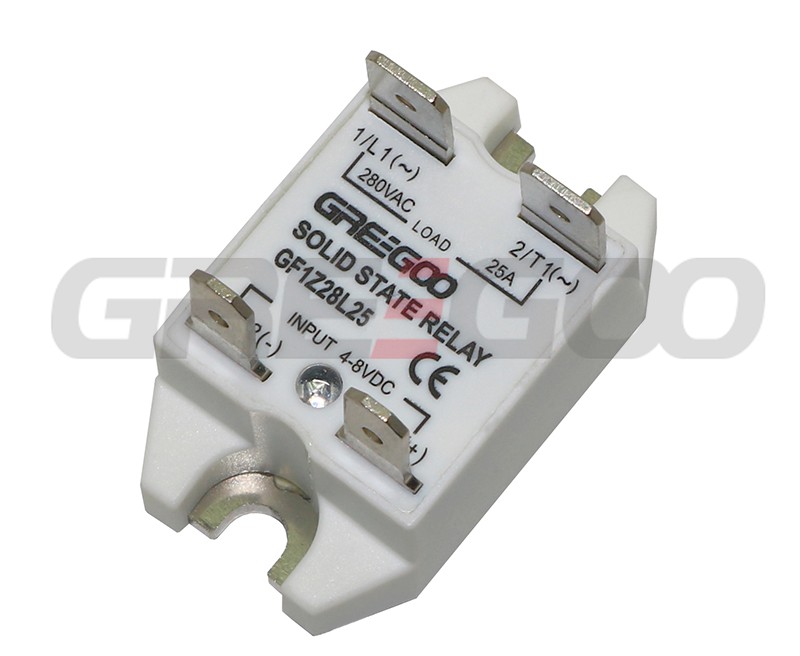

GF1Z28L25	25A	L:5(4-8)VDC	24-280VAC	Zero cross	Standard quick connect
GF1Z28M25	25A	M:12(10-14)VDC	24-280VAC	Zero cross	Standard quick connect
GF1Z28D25	25A	D:24(21-27)VDC	24-280VAC	Zero cross	Standard quick connect
GF1R28L25	25A	L:5(4-8)VDC	24-280VAC	Random	Standard quick connect
GF1R28M25	25A	M:12(10-14)VDC	24-280VAC	Random	Standard quick connect
GF1R28D25	25A	D:24(21-27)VDC	24-280VAC	Random	Standard quick connect
GF1Z28L15	15A	L:5(4-8)VDC	24-280VAC	Zero cross	Standard quick connect
GF1Z28M15	15A	M:12(10-14)VDC	24-280VAC	Zero cross	Standard quick connect
GF1Z28D15	15A	D:24(21-27)VDC	24-280VAC	Zero cross	Standard quick connect
GF1R28L15	15A	L:5(4-8)VDC	24-280VAC	Random	Standard quick connect
GF1R28M15	15A	M:12(10-14)VDC	24-280VAC	Random	Standard quick connect
GF1R28D15	15A	D:24(21-27)VDC	24-280VAC	Random	Standard quick connect

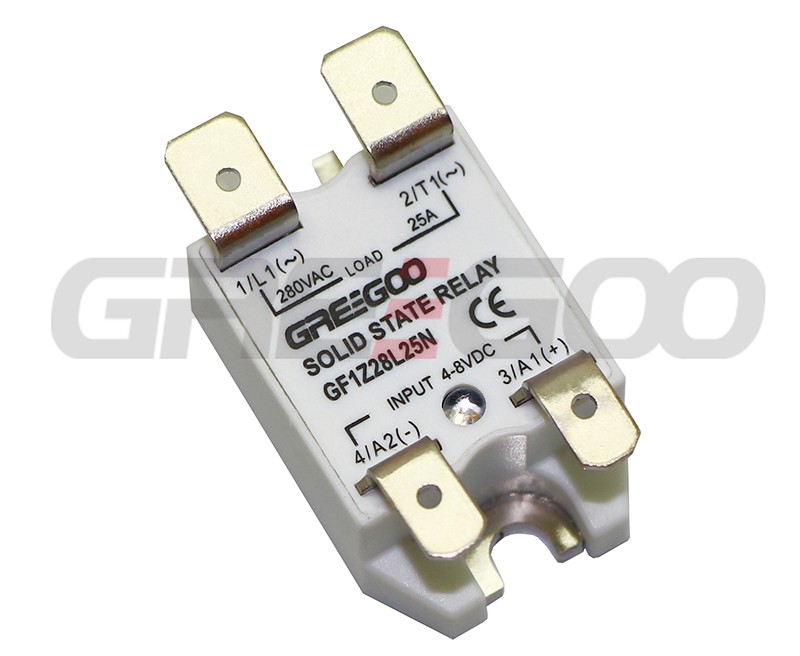

GF1Z28L25N	25A	L:5(4-8)VDC	24-280VAC	Zero cross	90º bent quick connect

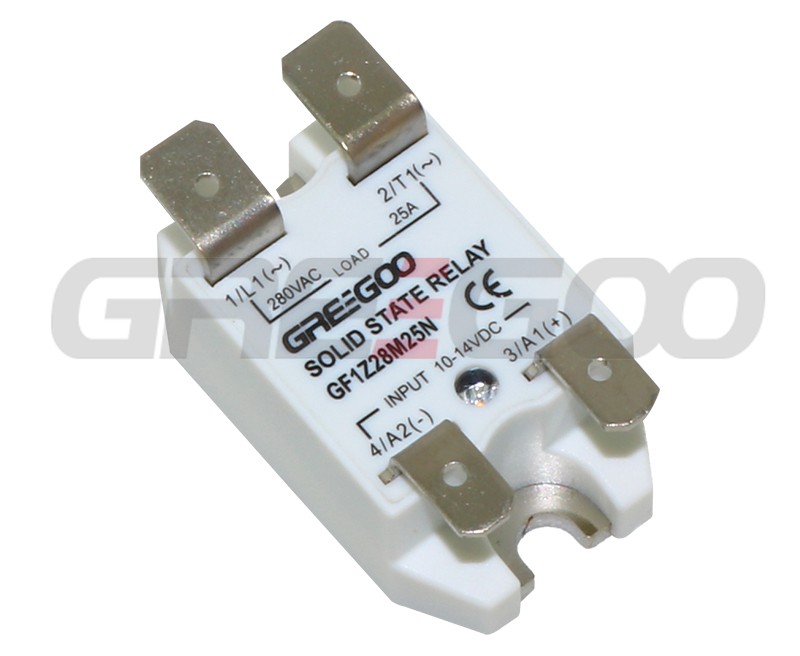

GF1Z28M25N	25A	M:12(10-14)VDC	24-280VAC	Zero cross	90º bent quick connect

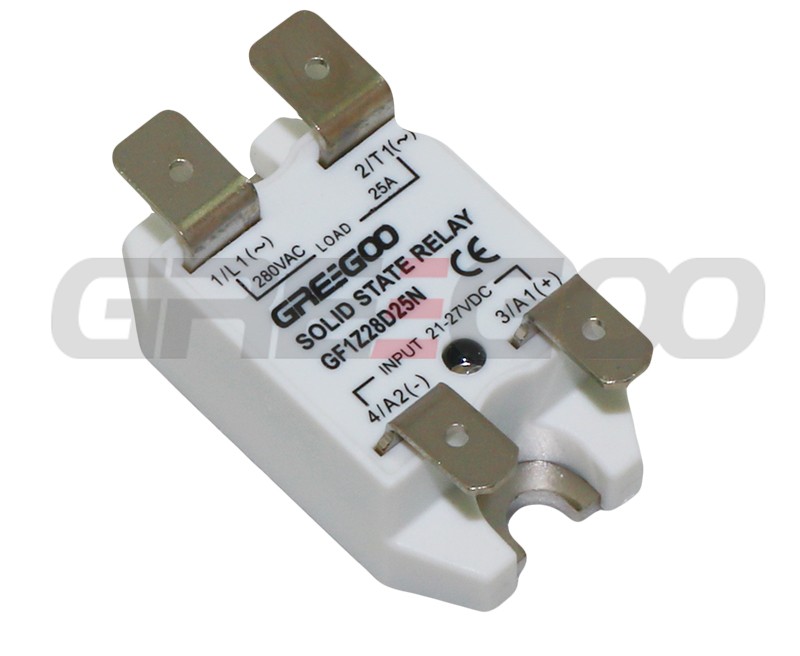

GF1Z28D25N	25A	D:24(21-27)VDC	24-280VAC	Zero cross	90º bent quick connect

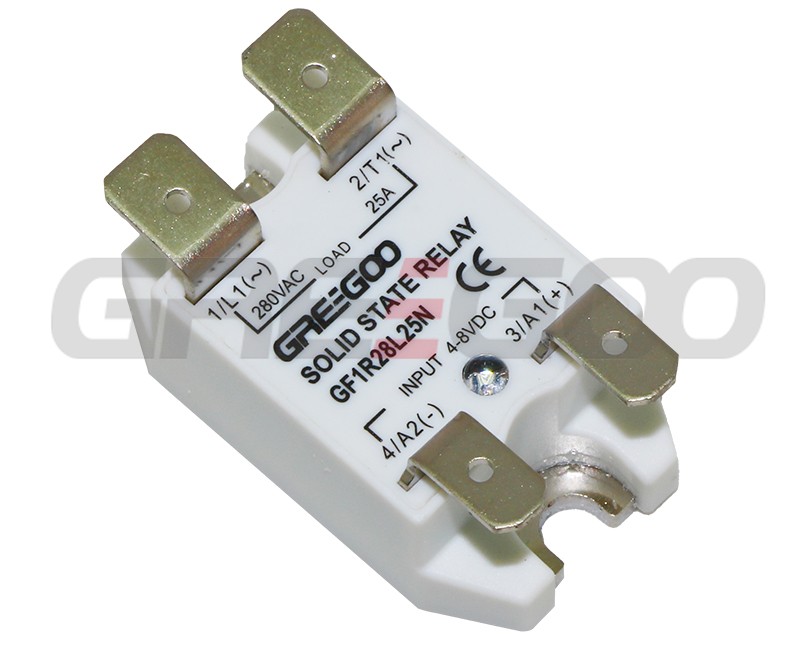

GF1R28L25N	25A	L:5(4-8)VDC	24-280VAC	Random	90º bent quick connect
GF1R28M25N	25A	M:12(10-14)VDC	24-280VAC	Random	90º bent quick connect
GF1R28D25N	25A	D:24(21-27)VDC	24-280VAC	Random	90º bent quick connect

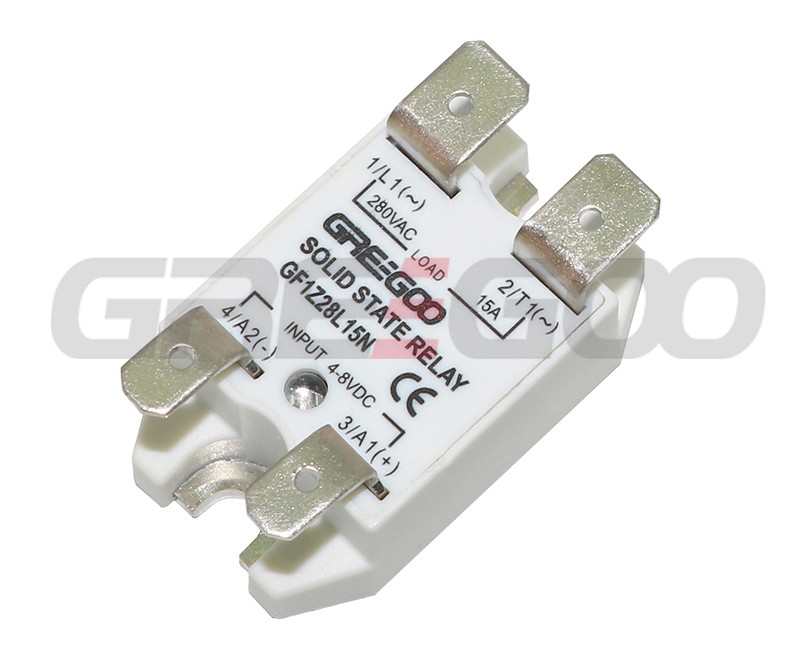

GF1Z28L15N	15A	L:5(4-8)VDC	24-280VAC	Zero cross	90º bent quick connect
GF1Z28M15N	15A	M:12(10-14)VDC	24-280VAC	Zero cross	90º bent quick connect

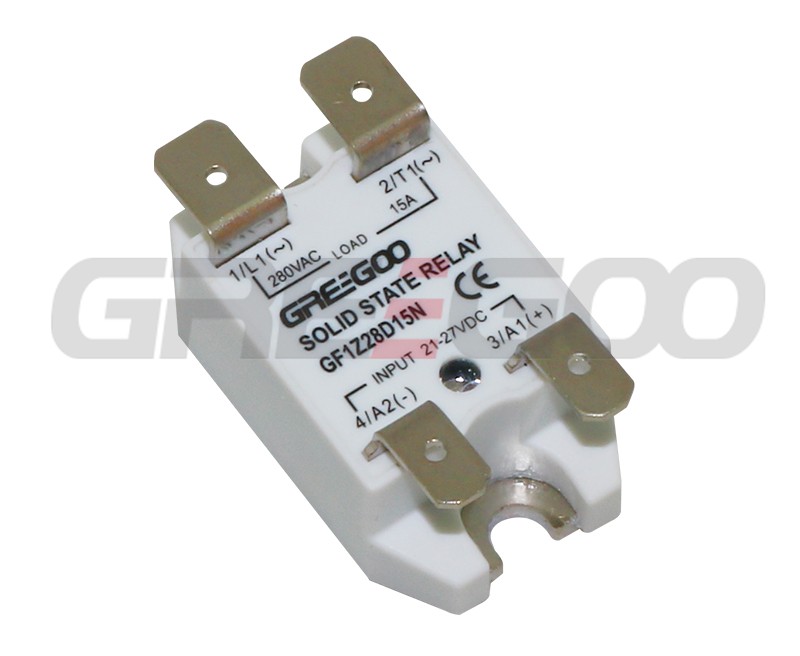

GF1Z28D15N	15A	D:24(21-27)VDC	24-280VAC	Zero cross	90º bent quick connect

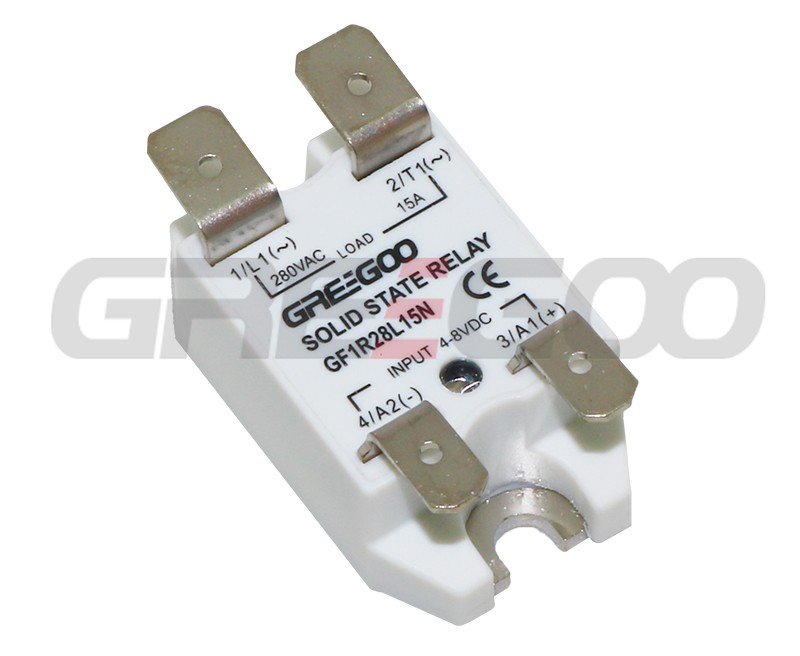

GF1R28L15N	15A	L:5(4-8)VDC	24-280VAC	Random	90º bent quick connect

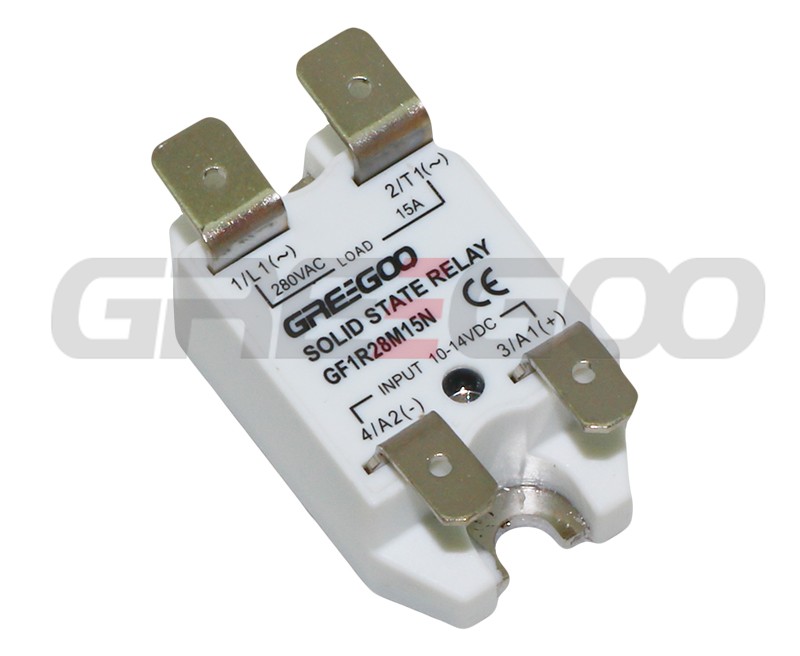

GF1R28M15N	15A	M:12(10-14)VDC	24-280VAC	Random	90º bent quick connect

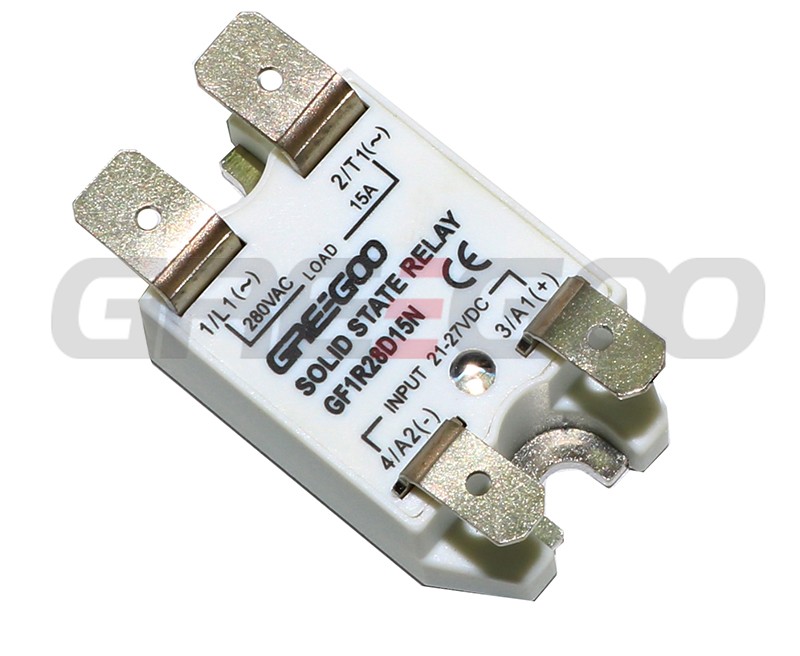

GF1R28D15N	15A	D:24(21-27)VDC	24-280VAC	Random	90º bent quick connect

FAQ

Q:Selection Guide for Solid State Relays

A margin should be left when selecting the voltage and current of the solid state relay.

For resistive load: the current is selected according to 2.5~4 times the load current, and the voltage is selected according to 2~2.5 times the load power. Inductive load: current is selected according to 3-7 times load current, voltage is selected according to 2.5-3 times load voltage.

According to the relationship between load current and ambient temperature, when the ambient temperature is high or heat dissipation conditions are not good, the current capacity of the solid state relay should be increased accordingly.
In order to prevent the product from short-circuiting during use, it is necessary to connect a fast circuit breaker or a fast fuse in series with the product in the load circuit.

For inductive loads, a freewheeling diode must be connected to both ends of the load, and a varistor must be connected to the output end (the varistor (MOV) is selected according to 1~1.5 times of the power supply voltage) to prevent the high voltage generated during switching from damaging the solid-state switch.

When the product is installed, it is required that the contact surface between the heatsink and the product must be flat and clean, and a layer of thermally conductive silicone grease is applied to its surface, and then finally the screws set with flat washers and Spring washersare tightened symmetrically to fix.
