Product Details

5KV HV Relay GHR-46A/B/C

◆ Compact, space-saving design
◆ Vacuum dielectric for power switching low current loads.
◆ Widely used in antenna coupler applications

◆ Short actuator, low profile, 5kV relay

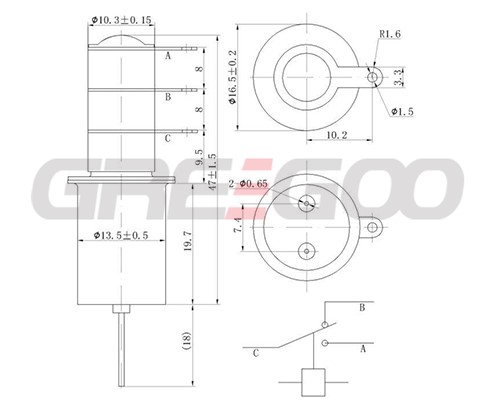

Specification

Product Specification			Units	GHR46A	GHR46B	GHR46C
Contact Form				A	B	C
Contact Arrangement				SPST-NO	SPST-NC	SPDT
Test Voltage,(kV, Peak), Test Max., Contacts & to Base (15 μA Leakage Max., dc or 60Hz)			KV Peak	6	6	6
Rated Operating Voltage, (kV,Peak), Contacts & to Base (15 μA Leakage Max.)		DC or 60Hz	KV Peak	5	5	5
		2.5MHz	KV Peak	4.5	4.5	4.5
		16MHz	KV Peak	3.5	3.5	3.5
		32MHz	KV Peak	2.8	2.8	2.8
Continuous Current, Carry Max		DC or 60Hz	Amps	12	12	12
		2.5MHz	Amps	10	10	10
		16MHz	Amps	5	5	5
		32MHz	Amps	3	3	3
Coil Hi -Pot (V RMS, 60 Hz)			V	500	500	500
Capacitance	Across Open Contacts		pF	1.6	1.6	1.6
Capacitance	Contacts to Ground		pF	2	2	2
Resistance, Contact Max @ 1A, 28Vdc			Ω	0.05	0.05	0.05
Operate Time, Max			ms	10	10	10
Release Time, Max			ms	10	10	10
Operating Temperature Ambient			°C	-55~ 125	-55~ 125	-55~ 125
Shock, 1/2 Sine11ms (Peak)			G’s	50	50	50
Vibration, Sine (10-2000 Hz Peak)			G’s	10	10	10
Mechanical Life			Cycles	2 million	2 million	2 million
Weight			g	22	22	22

Coil Rating

How to order
