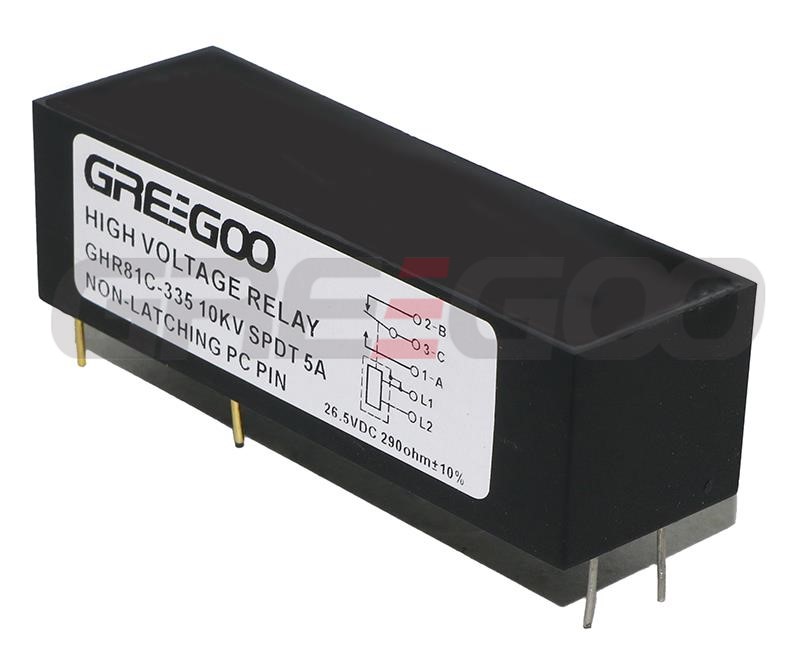

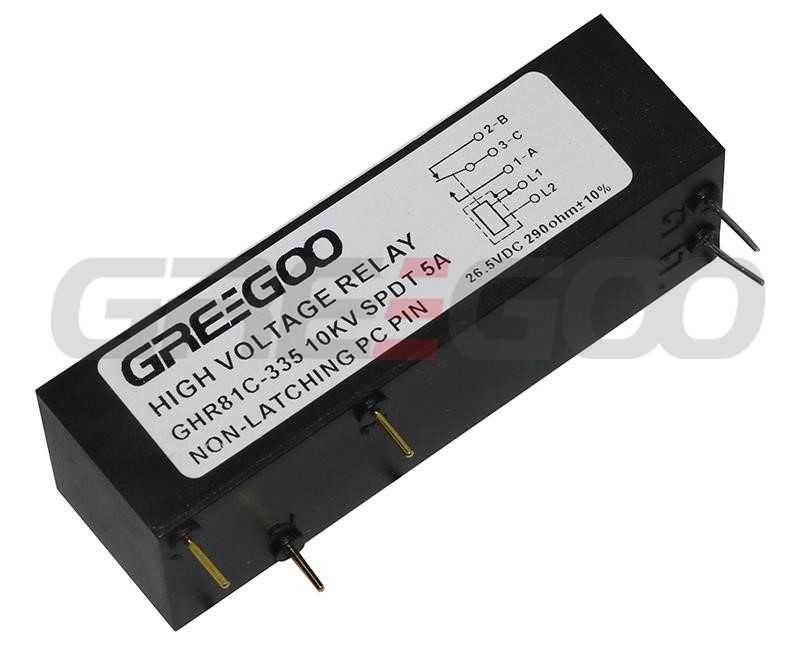

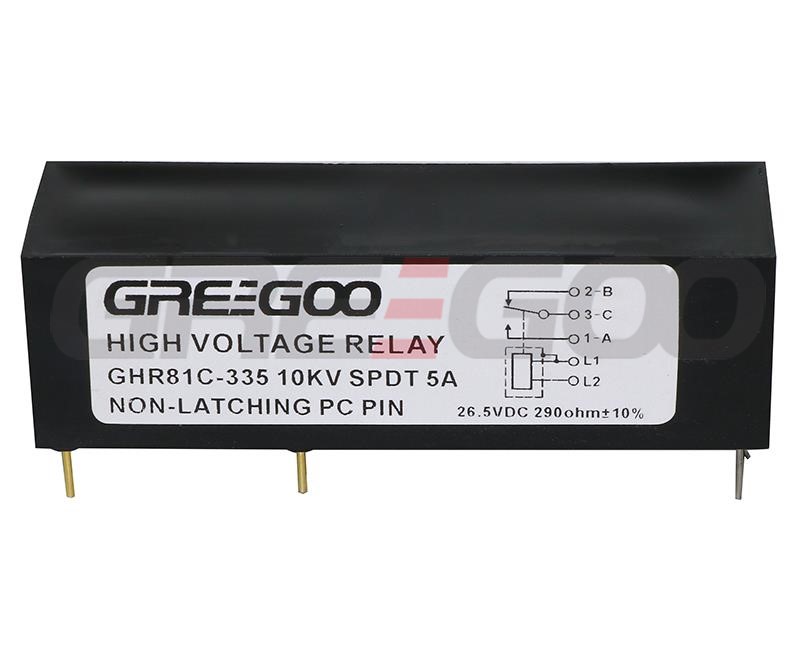

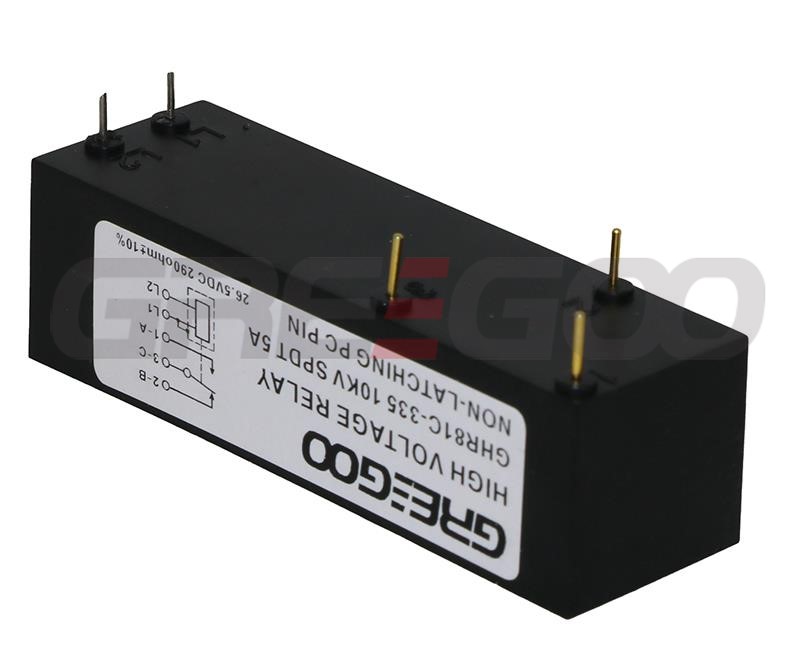

10KV PCB mount high voltage relay G81
Tungsten contacts improve hot load switching
Contact Support for load capability
Can be mounted in any position, any axis

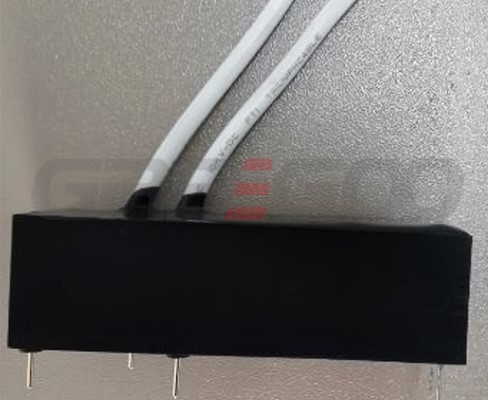

PCB and flying leads mount versions
|
Contact & Relay Ratings |
Units |
GHR81A(G81A) |
GHR81B (G81B) |
|
Contact Form |
|
A |
B |
|
Contact Arrangement |
|
SPST-NO |
SPST-NC |
|
Voltage,Test Max.,Contacts &to Base(15 μA Leakage Max.,dc or 60Hz) |
kV Peak |
11 |
11 |
|
Voltage,Operating Max.,Contacts &to Base (15 μA Leakage Max.)-dc or 60 Hz |
kV Peak |
10 |
10 |
|
Current,Continuous Carry Max -dc or 60 Hz |
Amps |
5,10 |
5,10 |
|
Resistance,Contact Max @1A,28 Vdc |
ohms |
0.03 |
0.03 |
|
Operate Time |
ms |
10 |
10 |
|
Release Time |
ms |
10 |
10 |
|
Life,Mechanical |
cycles |
2 million |
2 million |
|
Weight,Nominal |
g |
56 |
56 |
|
Vibration,Operating,Sine (55-500 Hz Peak) |
G's |
10 |
10 |
|
Shock,Operating,1/2 Sine11ms (Peak) |
G's |
30 |
30 |
|
Temperature Ambient Operating |
℃ |
-55 to 85 |
-55 to 85 |
|
Nominal,Volts dc |
12 |
26.5 |
115 |
|
Pick-up,Volts dc,Max. |
8 |
16 |
80 |
|
Drop-Out,Volts dc |
0.5-5 |
1-10 |
5-50 |
|
Coil Resistance(0hms±10%) |
70 |
290 |
4700 |

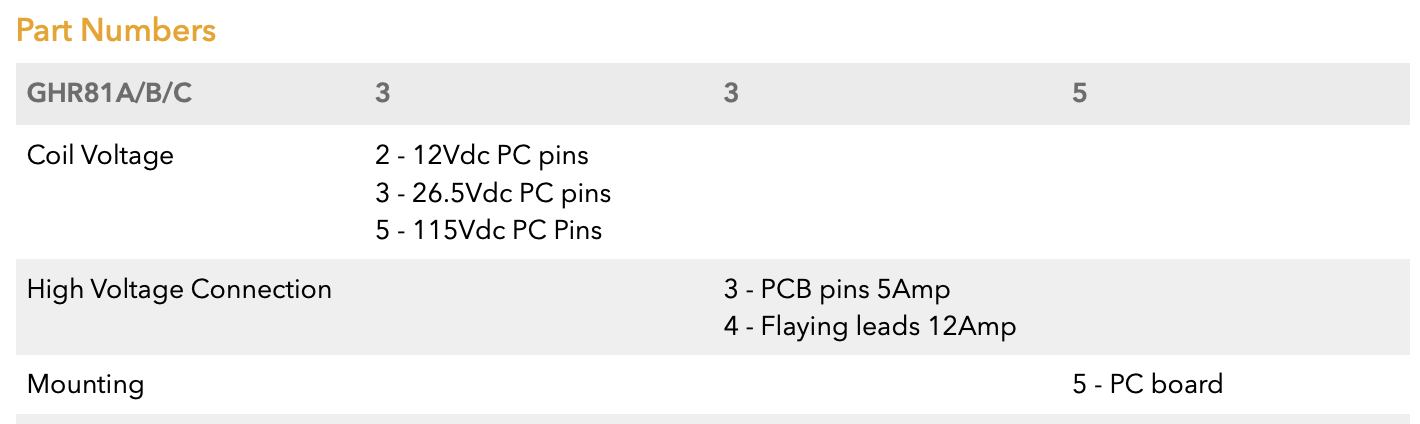

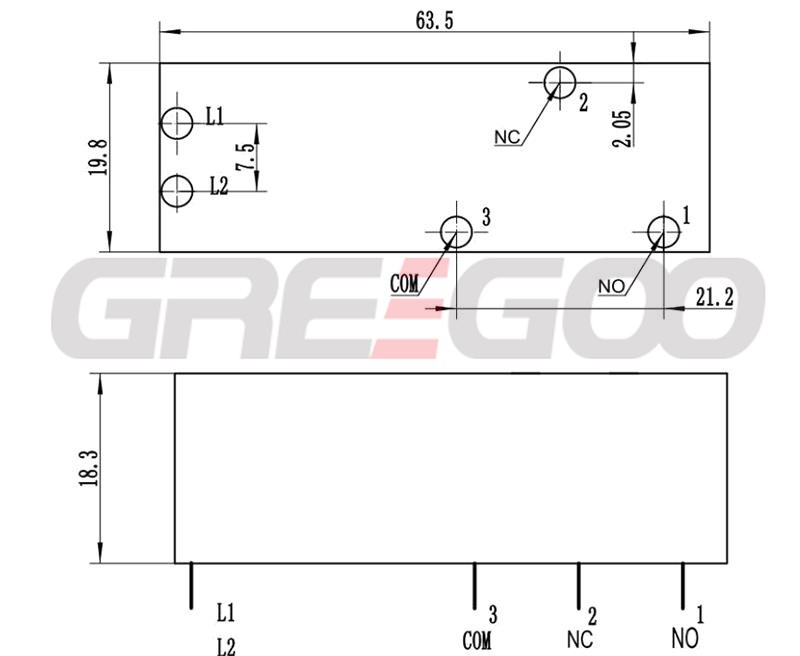

G81A/B coil rating High voltage connection (PCB pins 5A or Flying leads 10A)
Need more information?
Contact us to request pricing, availability and customization options.
