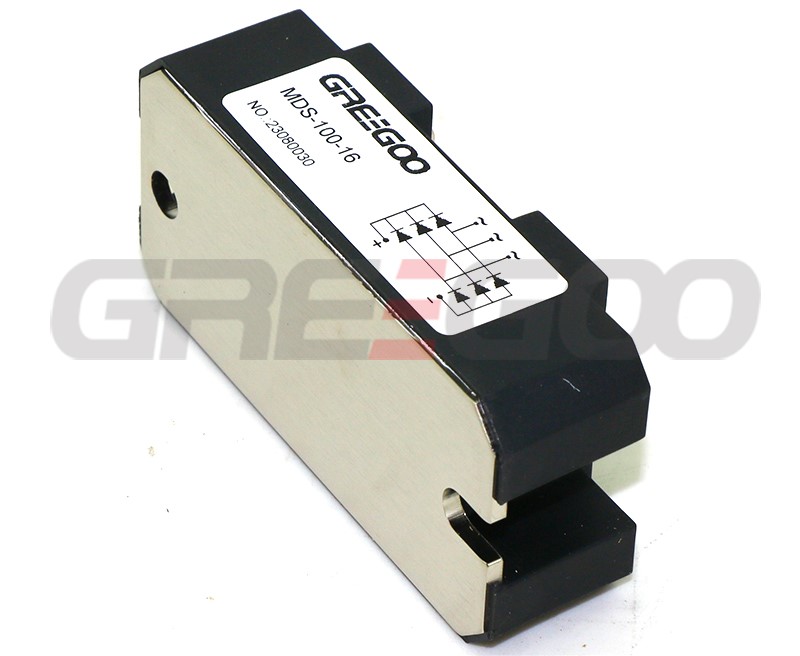

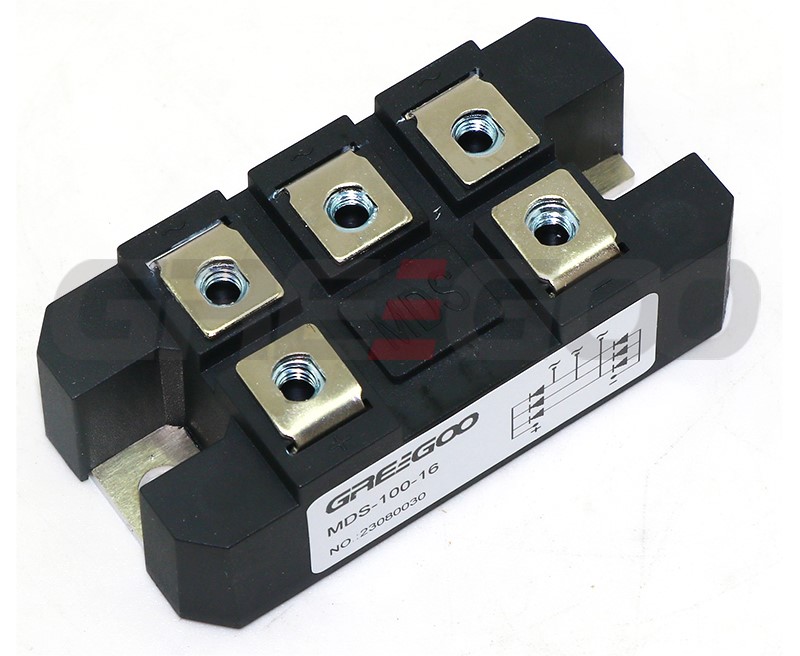

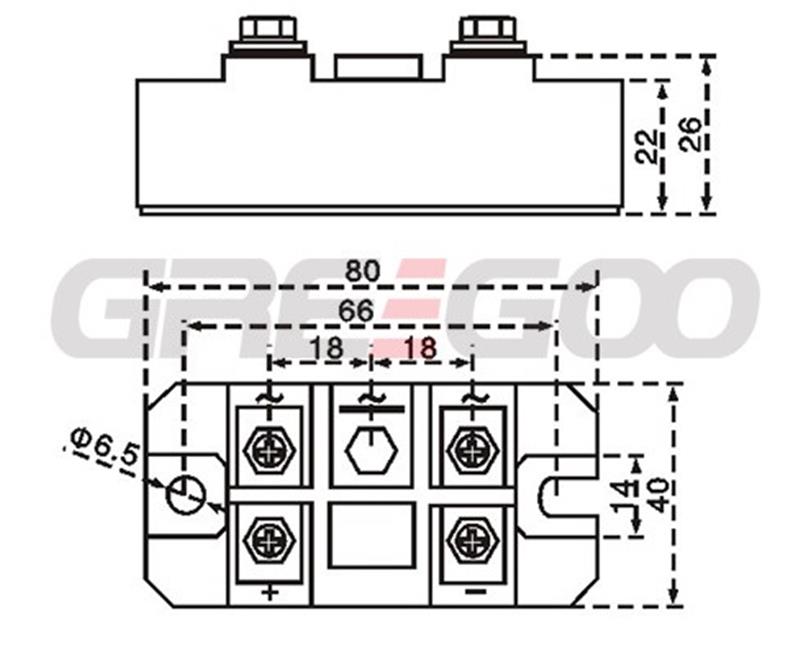

50-100A three phase bridge rectifier module

Features
Isolated mounting base 2500V
Solder joint technology
Space and weight savings

Typical Applications
DC Power supplies for equipments.
DC supply for PWM inverter
Inverter Welder

VRSM IDAV(Tcase= 100 ℃,)
VRRM 50A 75A 100A
600V MDS-50-06F2 MDS-75-06F2 MDS-100-06F2
800V MDS-50-08F2 MDS-75-08F2 MDS-100-08F2
1200V MDS-50-12F2 MDS-75-12F2 MDS-100-12F2
1400V MDS-50-14F2 MDS-75-14F2 MDS-100-14F2
1600V MDS-50-16F2 MDS-75-16F2 MDS-100-16F2
1800V MDS-50-18F2 MDS-75-18F2 MDS-100-18F2


50-100A three phase bridge rectifier module

SYMBOL

CHARACTERISTIC

TEST CONDITIONS

Tj(°C )

VALUE

UNIT

Min

Type

Max

Io

DC output current

Single-phase full wave rectifying circuit,

Tc=100°C

150





50

A

Vrrm

Repetitive peak reverse voltage

Vrrm tp=10ms

Vrsm= Vrrm+100V

150

600



1800

V

IRRM

Repetitive peak current

at Vrrm

150





4

mA

Ifsm

Surge forward current

10ms half sine wave

Vr=0.6Vrrm

150





1.0

KA

I2t

I2T for fusing coordination





5.0

A2s*103

Vfo

Threshold voltage



150





0.8

V

rF

Forward slop resistance





9.0

mQ

Vfm

Peak forward voltage

Ifm=75A

25





1.25

V

Rth(j-c)

Thermal resistance

Junction to case

Single side cooled







0.24

°C /W

Rth(c-h)

Thermal resistance case to heatsink

Single side cooled







0.15

°C /W

Viso

Isolation voltage

50Hz,R.M.S,t=1min,liso:1 mA(max)



2500





V

Fm

Terminal connection torque(M5)







4



N・m

Mounting torque(M6)







6



N・m

Tstg

Stored temperature





-40



125

°C
