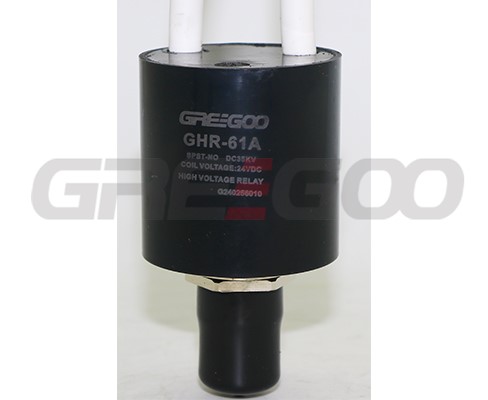

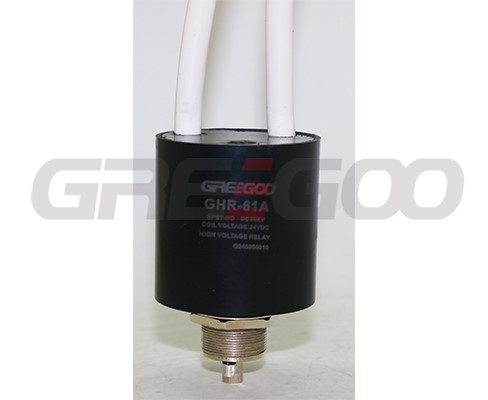

35KV GAS filled HV Relay GHR61 (G61)
Make Only Load Switchings
- Compact design saves precious space while isolating 35kV

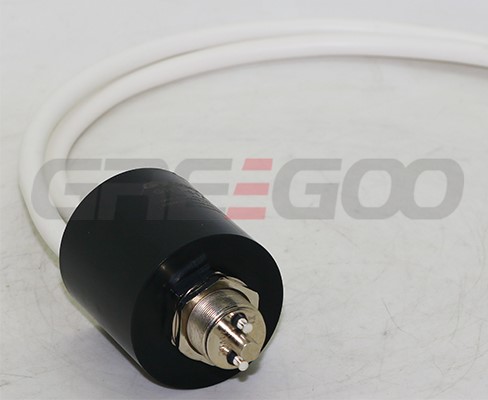

- Flying leads provide versatile high voltage connections
- Excellent for capacitive discharge and safety dump switch applications
- Effectively bounce free operation
|
Contact & Relay Ratings |
Units |
GHR61A(G61A) |
GHR61B(G61B) |
GHR61C(G61C) |
|
Contact Form |
|
A |
B |
C |
|
Contact Arrangement |
|
SPST-NO |
SPST-NC |
SPDT |
|
Contact Material (moveable/stationary) |
|
molybdenum /tungsten |
||
|
Dielectric |
|
Inert Gas |
||
|
Voltage,Test Max.,Contacts &to Base(15 μA Leakage Max,dc or 60Hz) |
kV Peak |
40 |
40 |
40 |
|
Voltage,Operating Max.,Contacts & to Base(15 μA Leakage Max.) |
|
|
|
|
|
dc |
kV Peak |
35 |
35 |
35 |
|
60 Hz RMS |
kV Peak |
30 |
30 |
30 |
|
2.5 MHz |
kV Peak |
|
|
|
|
16 MHz |
kV Peak |
|
|
一 |
|
32 MHz |
kV Peak |
|
|
|
|
Current,Continuous Carry Max |
|
|
|
|
|
dc or 60 Hz |
Amps |
10 |
10 |
10 |
|
2.5 MHz |
Amps |
|
|
|
|
16 MHz |
Amps |
|
|
一 |
|
32 MHz |
Amps |
|
|
一 |
|
Coil Hi-Pot (V RMS,60 Hz) |
V |
500 |
500 |
500 |
|
Capacitance |
|
|
|
|
|
Across Open Contacts |
pF |
|
|
|
|
Contacts to Ground |
pF |
|
|
|
|
Resistance,Contact Max @1A,28Vdc |
ohms |
1.0 |
1.0 |
1.0 |
|
Operate Time |
MS |
15 |
15 |
15 |
|
Release Time |
ms |
15 |
15 |
15 |
|
Life,Mechanical |
cycles |
1 million |
1 million |
1 million |
|
Weight,Nominal |
g(oz) |
230(12) |
230(12) |
230(12) |
|
Vibration,Operating,Sine(55-500 Hz Peak) |
G's |
10 |
10 |
10 |
|
Shock,Operating,1/2 Sine 11ms(Peak) |
G's |
20 |
20 |
20 |
|
Temperature Ambient Operating |
°C |
-55 to 85 |
-55 to 85 |
-55 to 85 |
|
COIL RATINGS |
|||
|
Nominal, Volts dc |
26.5 |
24 |
12 |
|
Pick-up, Volts dc,Max |
18 |
18 |
9 |
|
Drop-Out, Volts dc,Min |
1-10 |
1-10 |
0.5-5 |
|
Coil Resistance (Ω±10%) |
125 |
125 |
30 |
|
※ Ratings listed are for 25°C |
|||
High voltage connection: Flying Leads (12'', 36'' and 72'')
Mounting: Threaded

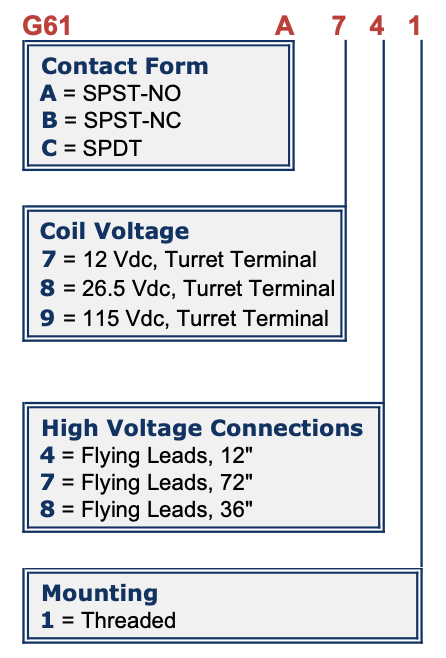

Tips: model coil rating flying leads length
For example: GHR61A 24V 12''
