25KV gas filled high voltage relay GHR-18
Home Products Vacuum Relay and CapacitorGas filled high voltage relay25KV gas filled high voltage relay GHR-18
25KV gas filled high voltage relay GHR-18
◆ SF-6 gas-filled for power switching on the"make"
◆ Long load life in capacitive discharge applications
◆ Recommneded for ESD testing and safety interlock applications
◆ Consult factory for load switching applications
|

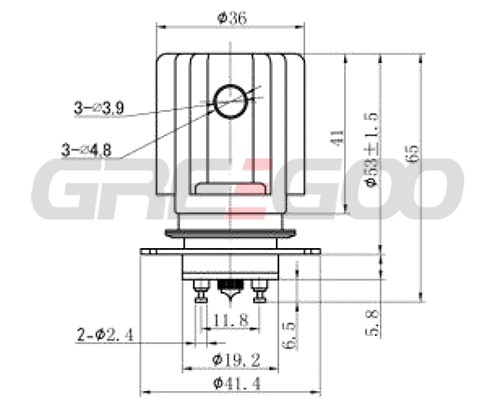

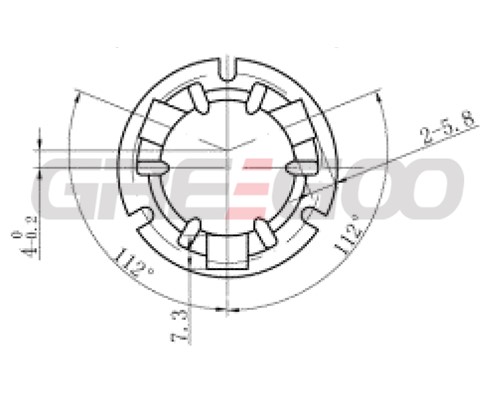

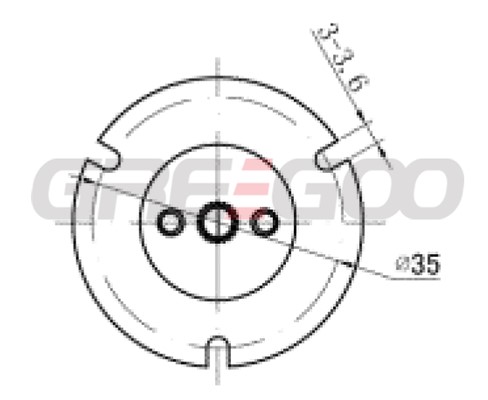

Product Specification |
Units |
GHR-18-SF |
||
|
Contact Form |
|
C |
||
|
Contact Arrangement |
|
SPDT |
||
|
Test Voltage,(kV,Peak),Test Max.,Contacts &to Base (15 μ A Leakage Max.,dc or 60Hz) |
KV Peak |
28 |
||
|
Rated Operating Voltage,(kV,Peak), Contacts &to Base (15 u A Leakage Max.) |
DC or 60Hz |
KV Peak |
25 |
|
|
2.5MHz |
KV Peak |
一 |
||
|
16MHz |
KV Peak |
一 |
||
|
32MHz |
KV Peak |
|
||
|
Continuous Current Carry Max |
DC or 60Hz |
Amps |
12 |
|
|
2.5MHz |
Amps |
一 |
||
|
16MHz |
Amps |
一 |
||
|
32MHz |
Amps |
一 |
||
|
Coil Hi-Pot (V RMS,60 Hz) |
V |
500 |
||
|
Capacitance |
Across Open Contacts |
pF |
0.5 |
|
|
Contacts to Ground |
nF PI |
1 |
||
|
Resistance,Contact Max @1A,28Vdc |
Ω |
1.0 |
||
|
Operate Time,Max |
ms |
18 |
||
|
Release Time,Max |
ms |
12 |
||
|
Operating Temperature Ambient |
℃ |
-55~ 125 |
||
|
Shock,1/2 Sine11ms (Peak) |
G's |
50 |
||
|
Vibration,Sine(10-2000Hz Peak) |
G's |
10 |
||
|
Mechanical Life |
Cycles |
1 million |
||
|
Weight |
g |
110 |
||
|
Coil rating |
|||
|
Nominal voltage Vdc |
26.5 |
24 |
12 |
|
Pick up voltage Max. Vdc |
18 |
18 |
9 |
|
Drop out voltage Min. Vdc |
1-10 |
1-10 |
0.5-5 |
|
Coil Resistance (Ω±10%) |
125 |
125 |
30 |
※ The above test value is for 25°C.
Need more information?
Contact us to request pricing, availability and customization options.
