Product Details
3.6KV Vacuum Contactor
| Model | Unit | GVC6-400A/3.6KV | GVC6-630A/3.6KV |
| Main circuit rated voltage | kV | 3.6 | 3.6 |
| Main circuit rated current | A | 400 | 630 |
| Rated ferquency | Hz | 50 | 50 |
| Power-frequency withstand voltage | kV | 18 | 18 |
| Rated make current | 100Ops. | 4000A | 6300A |
| Rated break current | 25Ops. | 3200A | 5000A |
| Maximum break current | 3Ops. | 4000A | 6000A |
| Opening time | ms | ≤ 80 | ≤ 80 |
| Closing time | ms | ≤ 100 | ≤ 100 |
| Clearance between open contacts | mm | 3±0.5 | 3±0.5 |
| Over travel | mm | ≥1 | ≥1 |
| Mechanical life | Ops. | 1,000,000 | 1,000,000 |
| Electricity life | Ops. | 600,000 |
600,000 |
| Contact Block: | 4NO 3NC | 4NO 3NC |

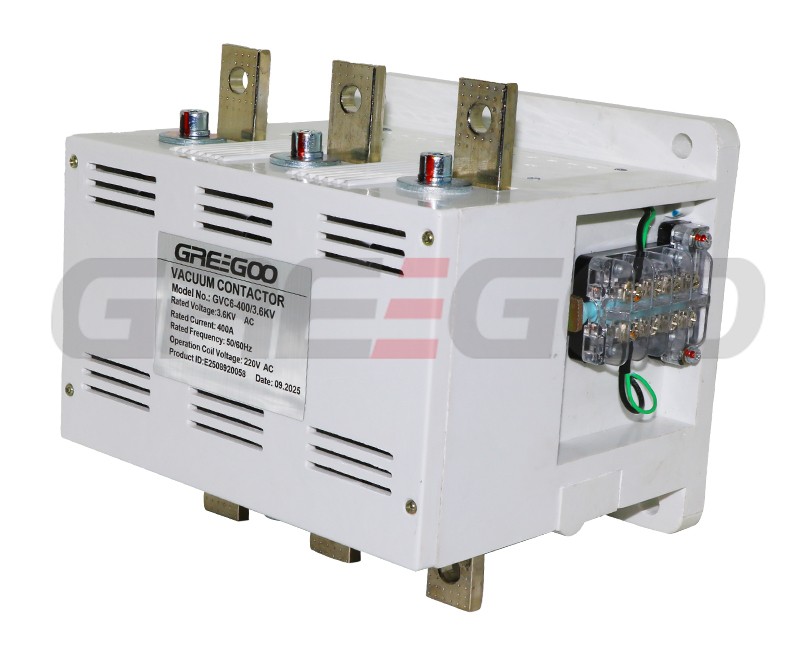

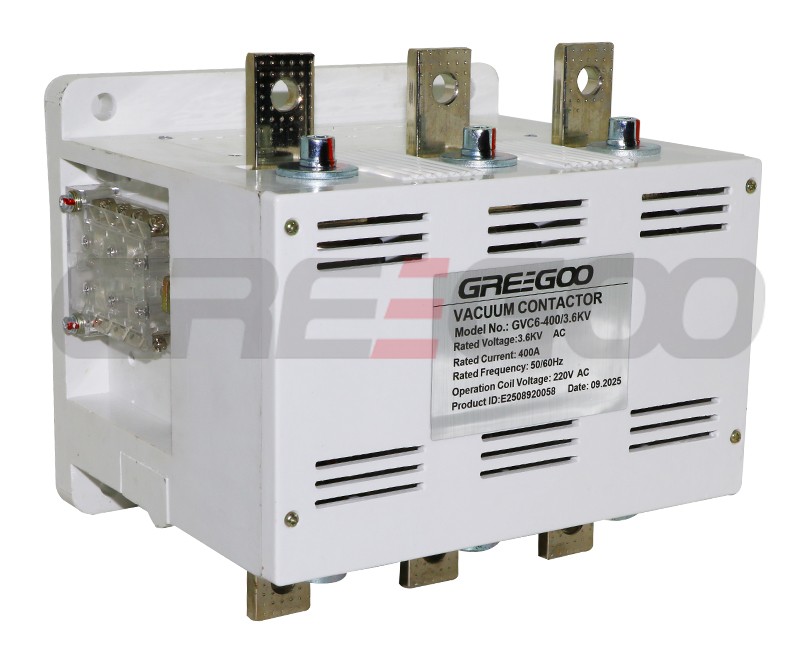

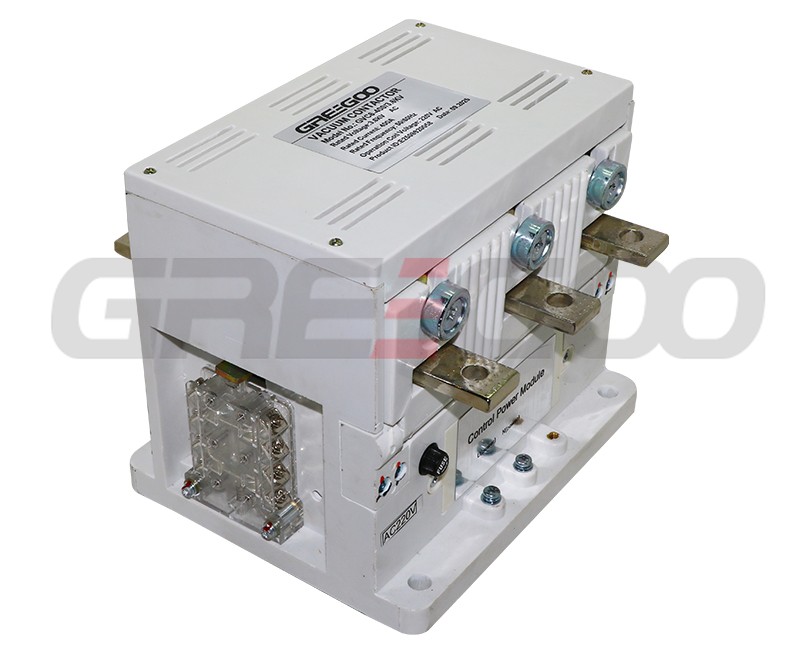

Enclosed type of 3.6KV Vacuum Contactor, three phase, 400A and 630A, 4a 3b auxiliary contacts.
Dimensions

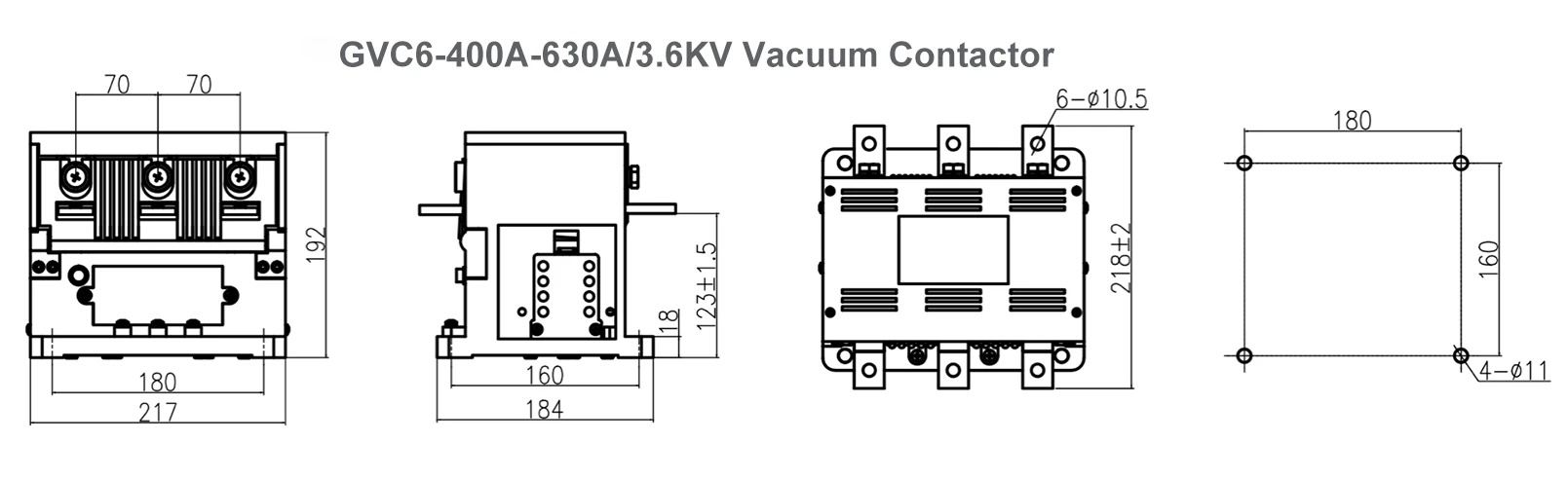

3.6KV Vacuum Contactor dimensions and mounting size
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
Related Products

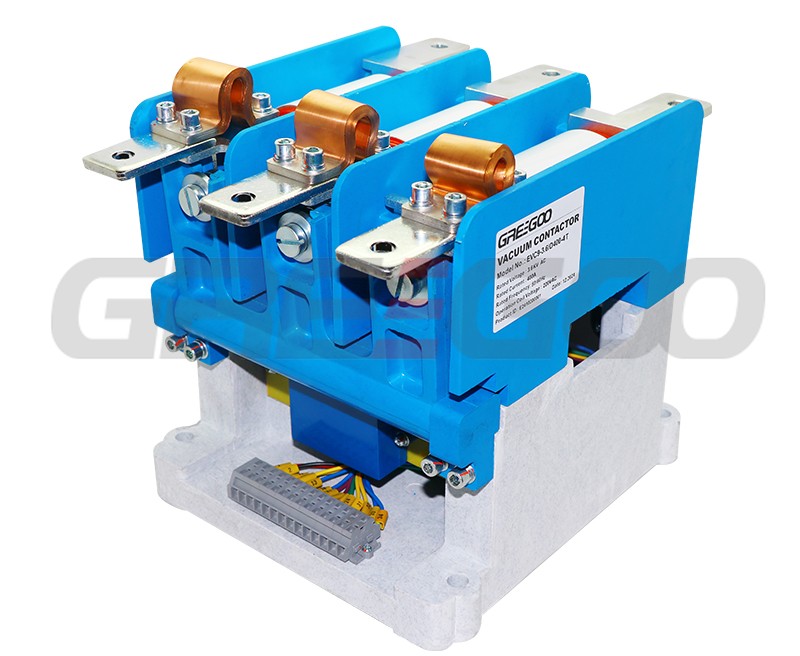

3.3KV 3.6KV vacuum contactor EVC9-3.6/D400-4T
3.6kv, 400A open frame vacuum starter, 3.3kv Vacuum Contactor starter, 3.3kv vacuum contactor

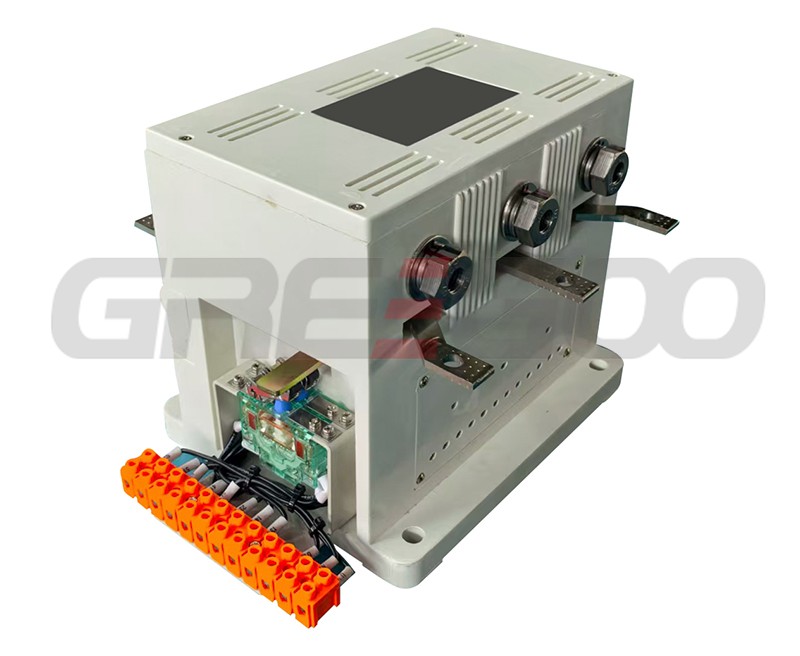

4160V 400Hz 160A Vacuum Contactor
400Hz 4160V 160A Vacuum Contactor, high-voltage rail applications
3.6KV 630A to 2500A Fast Vacuum Contactors (bypass switch)
Making or breaking time is less than 5ms vacuum contactor as by-pass switch.

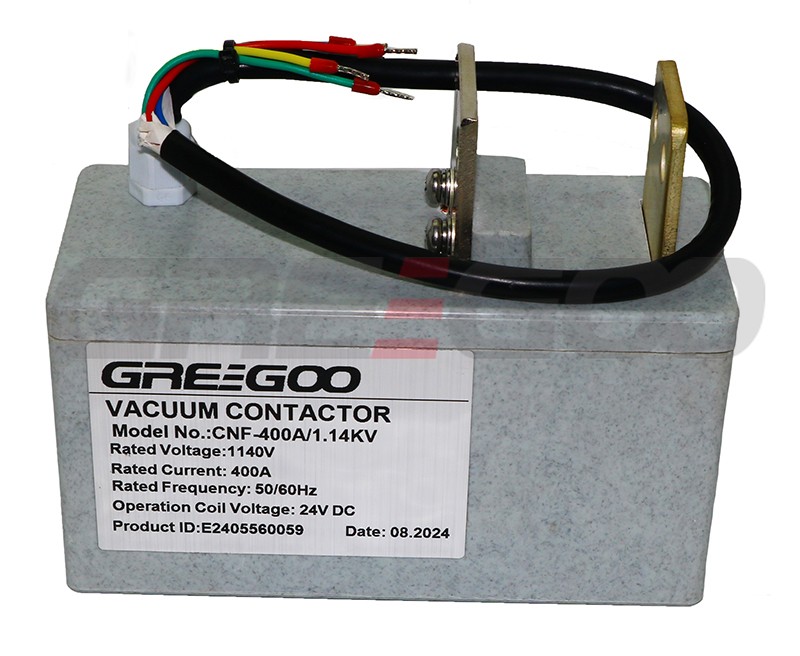

CNF-400A/1.14KV Fast Vacuum Contactor
