Product details
GVC6A-630A/3.6KV Vacuum Contactor
| Part numbers | GVC6A-630A/3.6KV | |
| Nominal Current | A | 630 |
| Nominal Voltage | kV | 3.6 |
| Rated Making Capacity | A | 6300 |
| Rated Breaking Capacity | A | 5000 |
| Pick-up power | VA | 500 |
| Holding Power | W | 15 |
| Mechanical Life | Cycles | 1×106 |
| Electric Life | Cycles | 6×104 |
| Control Power Voltage | V(AC/DC) | 36/110/127/220/380 |
| Auxiliary contacts | 4NO 3NC | |
| Auxiliary contacts capacity | AC-15: Ue: AC380V le:1A DC-13: Ue: DC250V le:0.8A |
|
| Weight | Kg | 11 |
| Dimensions | mm | 214x183x187 |

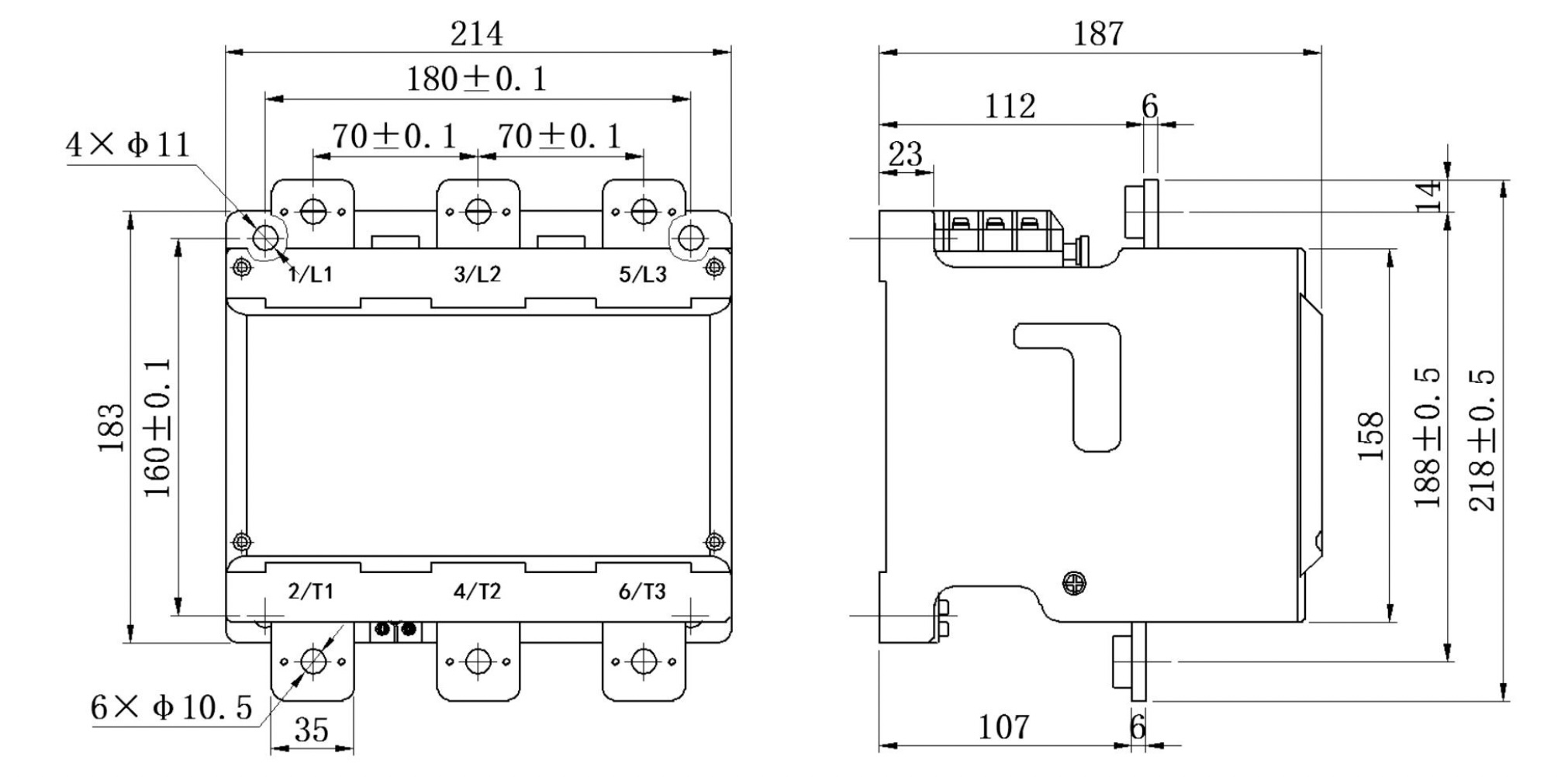

Dimensions
