3.6KV Vacuum Contactor
Home Products Vacuum Contactor3.6kV Vacuum Contactors3.6KV Vacuum Contactor
Product Details
3.6KV Vacuum Contactor
| Model | Unit | GVC6-400A/3.6KV | GVC6-630A/3.6KV |
| Main circuit rated voltage | kV | 3.6 | 3.6 |
| Main circuit rated current | A | 400 | 630 |
| Rated ferquency | Hz | 50 | 50 |
| Power-frequency withstand voltage | kV | 18 | 18 |
| Rated make current | 100Ops. | 4000A | 6300A |
| Rated break current | 25Ops. | 3200A | 5000A |
| Maximum break current | 3Ops. | 4000A | 6000A |
| Opening time | ms | ≤ 80 | ≤ 80 |
| Closing time | ms | ≤ 100 | ≤ 100 |
| Clearance between open contacts | mm | 3±0.5 | 3±0.5 |
| Over travel | mm | ≥1 | ≥1 |
| Mechanical life | Ops. | 1,000,000 | 1,000,000 |
| Electricity life | Ops. | 600,000 |
600,000 |
| Contact Block: | 4NO 3NC | 4NO 3NC |

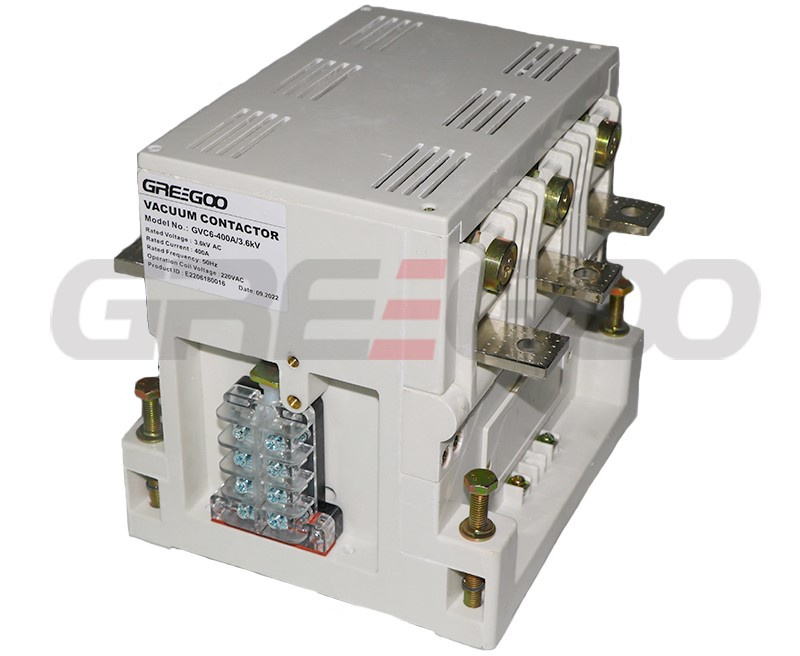

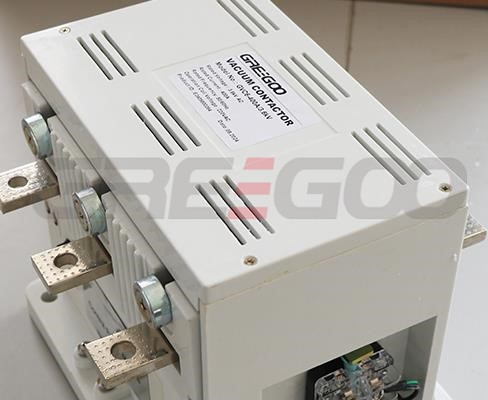

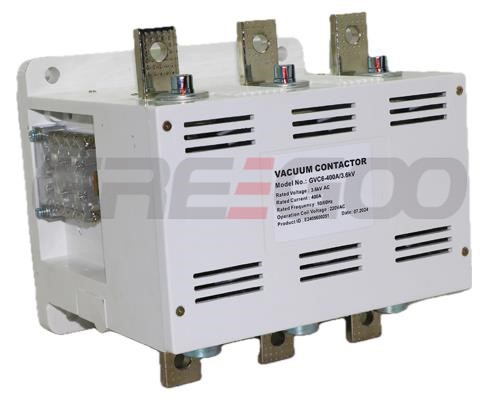

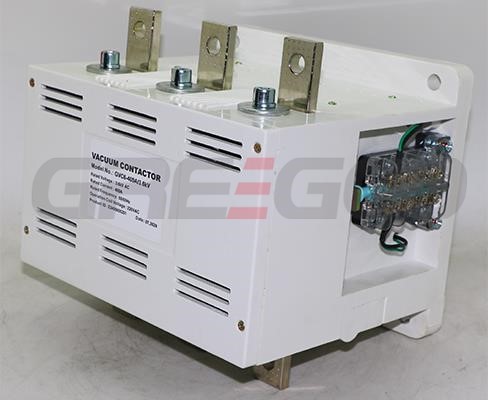

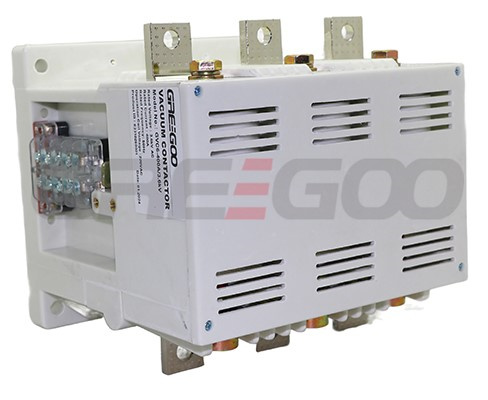

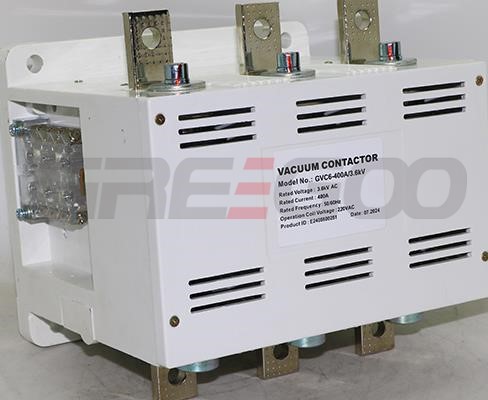

Enclosed type of 3.6KV Vacuum Contactor, three phase, 400A and 630A, 4a 3b auxiliary contacts.
Dimensions

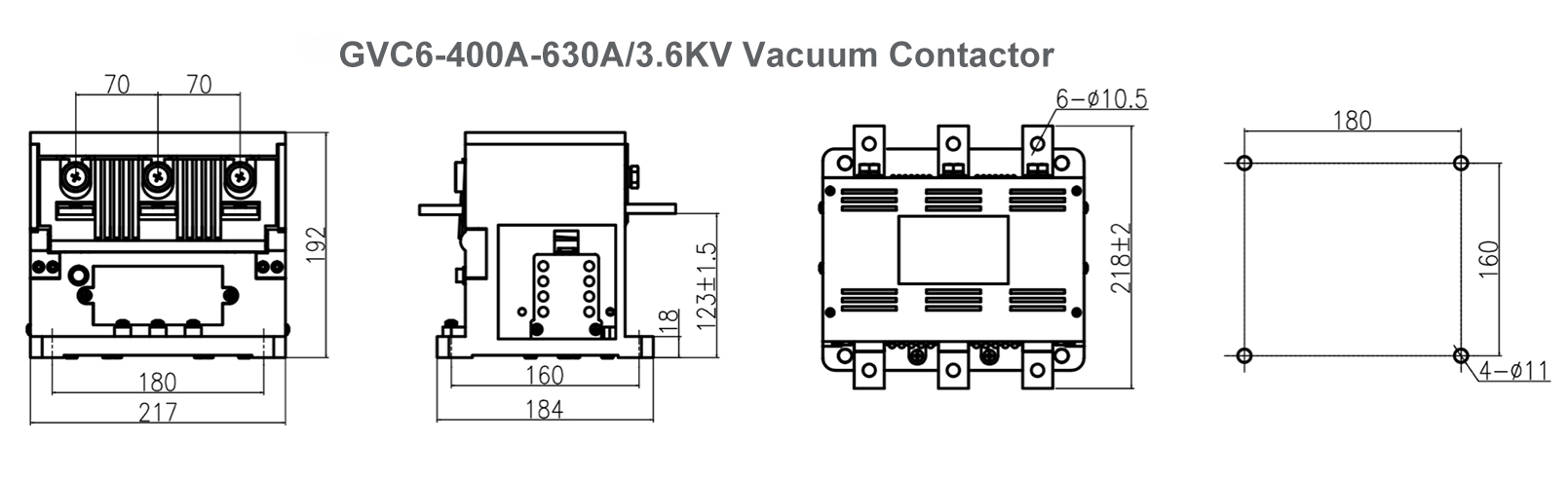

3.6KV Vacuum Contactor dimensions and mounting size
