20kV DPDT HV Relay Double Pole Double Throw G23
FEATURES
- Tungsten/Moly contacts provide optimal load switching capability
- Small footprint is ideal for maximizing application efficiency
- Mounting options in any axis
|
Contact & Relay Ratings |
Units |
GHR23(G23) |
|
Contact Form |
|
2C |
|
Contact Arrangement |
|
DPDT |
|
Contact Material(moveable/stationary) |
|
molybdenum /tungsten |
|
Dielectric |
|
Vacuum |
|
Voltage,Test Max.,Contacts &to Base(15 μA Leakage Max.)dc or 60Hz |
kV Peak |
23 |
|
Voltage,Operating Max.,Contacts &to Base (15 μA Leakage Max.) |
|
|
|
dc or 60 Hz |
kV Peak |
20 |
|
2.5 MHz |
kV Peak |
12 |
|
16 MHz |
kV Peak |
8 |
|
32 MHz |
kV Peak |
5 |
|
Current, Load Switching |
|
Contact factory |
|
Current,Continuous Carry Max |
|
|
|
dc or 60 Hz |
Amps |
75 |
|
2.5 MHz |
Amps |
35 |
|
16 MHz |
Amps |
22 |
|
32 MHz |
Amps |
15 |
|
Coil Hi-Pot (V RMS,60 Hz |
V |
500 |
|
Capacitance |
|
|
|
Across Open Contacts |
pF |
3 |
|
Contacts to Ground |
pF |
3.5 |
|
Resistance,Contact Max @1A,28 Vdc |
ohms |
0.010 |
|
Operate Time |
ms |
30 |
|
Release Time |
Ms |
10 |
|
Life,Mechanical |
Cycles |
1 million |
|
Weight,Nominal |
g(oz |
380 (14) |
|
Vibration,Operating,Sine (55-500 Hz Peak |
G's |
10 |
|
Shock,Operating,1/2 Sine11ms (Peak) |
G's |
50 |
|
Temperature Ambient Operating |
℃ |
-55 to 125 |
|
Nominal,Volts dc |
12 |
26.5 |
|
Pick-up,Volts dc,Max. |
8 |
16 |
|
Drop-Out,Volts dc |
.5-5 |
1-10 |
|
Coil Resistance (0hms±10%) |
60 |
240 |

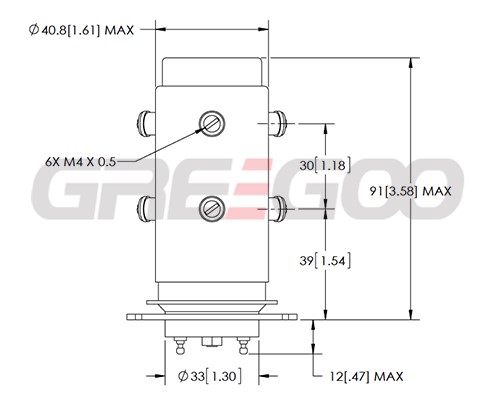

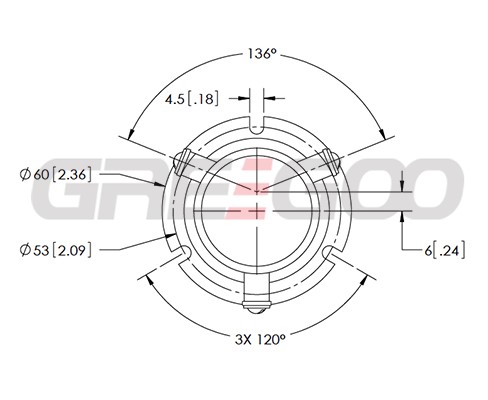

Screw Flange type, G23WF - 12 or G23WF-26.5
