Product Details

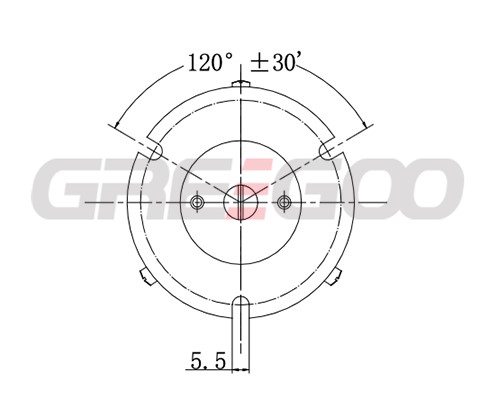

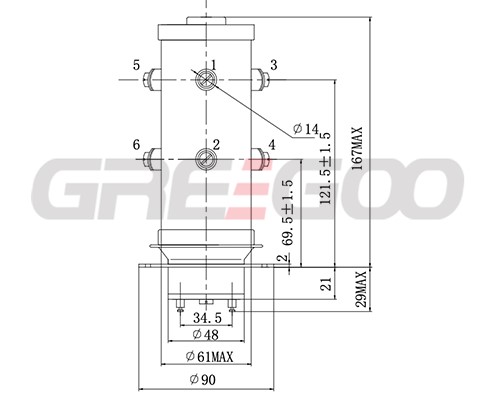

20KV HV Relay GHR-7/005 DPDT

  • Copper contacts, capable of carrying large currents, double-pole double-throw, commonly used in circuits requiring feedback signals.
  • Vacuum medium, capable of effectively extinguishing arcs when opened under load.
  • Bolted high-voltage connectors for simple wiring.
Specification

Product Specification

Units

GHR-7/005

Contact Form

C

Contact Arrangement

DPDT

Test Voltage,(kV, Peak), Test Max., Contacts & to Base (15 μA Leakage Max., dc or 60Hz)

KV Peak

25

Rated Operating Voltage,

(kV,Peak),
Contacts & to Base
(15 μA Leakage Max.)

DC or 60Hz

KV Peak

20

2.5MHz

KV Peak

15

16MHz

KV Peak

10

32MHz

KV Peak

-

Continuous Current, Carry Max

DC or 60Hz

Amps

150

2.5MHz

Amps

70

16MHz

Amps

45

32MHz

Amps

-

Coil Hi -Pot (V RMS, 60 Hz)

V

500

Capacitance

Across Open Contacts          .

pF

5

Contacts to Ground

pF

5

Resistance, Contact Max @ 1A, 28Vdc

Ω

0.005

Operate Time, Max

ms

100

Release Time, Max

ms

15

Operating Temperature Ambient

°C

-55~+125                        .

Shock, 1/2 Sine11ms (Peak)

G’s

50

Vibration, Sine (10-2000 Hz Peak)

G’s

10

Mechanical Life

Cycles                  .

1 million

Weight

g

1600

Coil Rating
  • Nominal Voltage (Vdc): 24
  • Pick-up Voltage (Max Vdc): 16
  • Drop-Out Voltage (Min Vdc): 1-10
  • Coil Resistance (Ω ±10%): 60
